Pass the Pegasystems PCRSA PEGACPRSA22V1 Questions and answers with ExamsMirror

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

According to Pega Robotics Studio – Matching and Interrogation Tools Documentation:

“Matching defines how a control is identified at runtime. When application hierarchies change or specific match rules fail, Robot Studio provides diagnostic tools to reestablish and verify the correct control associations.”

The guide specifies the following tools and their purpose:

Refresh Matching

“Refresh Matching updates the control’s properties and hierarchy information based on the current application structure without re-interrogating the control. This tool is useful when an application’s DOM or hierarchy has changed.”

Debug Matching

“Debug Matching opens the Match Rules Diagnostics window and evaluates each match rule in real-time to show which rules pass or fail. It assists in identifying which match rule must be corrected or replaced.”

By contrast:

Replace Matching – Recreates the match rules from scratch (not the preferred first step).

Replace Control – Reinterrogates the entire control and removes existing references (used only when the control is entirely invalid).

Debug Control – Analyzes properties but not matching logic.

Thus, the two correct tools to address the described issues are:

Refresh Matching (for hierarchy change)

Debug Matching (for failed rule troubleshooting)

References (Exact Extract Source):

Pega Robotics Studio – Matching Diagnostics and Interrogation Guide

Pega Robotics System Architect Training – Debugging and Refresh Matching Modules

Pega Robotics Help – Managing Match Rules in Chrome/Edge/Web Adapters

Final Verified Answer: A, C

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

Assisted Sign-On (ASO) is a feature of Pega Robot Studio that allows users to securely store and automatically populate login credentials for applications used in automations.

By default, Pega Customer Service (PCS) applications are integrated with Assisted Sign-On to streamline agent desktop interactions and reduce manual logins when launching multiple applications.

According to the Pega Robotics System Design and Implementation Guide, section “Assisted Sign-On Integration with Pega Applications”:

“Pega Customer Service applications include Assisted Sign-On by default.

This feature uses Credential Manager and Runtime configuration to securely authenticate users across multiple enterprise systems during attended robotic operations.”

Detailed Reasoning:

A. Pega Sales Automation – Does not include ASO by default.

B. Pega Customer Decision Hub – Focused on decision management, not attended user login automation.

C. Pega Customer Service – Correct. Assisted Sign-On is preconfigured for Customer Service use cases to streamline agent authentication.

D. Pega Robot Manager – Used for deployment and management of bots, not for user authentication.

This question is about understanding how a For Loop interacts with a Data Grid View (dgv) control, specifically using the GetCellValue method in Pega Robot Studio automations.

Automation Analysis

Let’s break down the logic step by step:

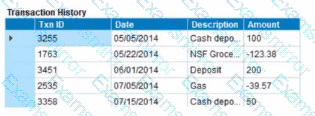

1. Transaction History Table (Data Grid)

Row Index

Txn ID

Date

Description

Amount

0

3255

05/05/2014

Cash deposit

100

1

1763

05/22/2014

NSF Grocery

-123.38

2

3451

06/01/2014

Deposit

200

3

2535

07/05/2014

Gas

-39.57

4

3358

07/15/2014

Cash deposit

50

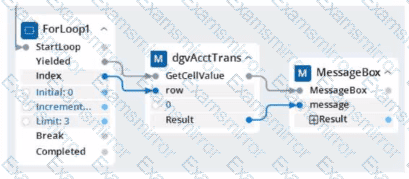

2. For Loop Configuration

Initial: 0

Increment: 1

Limit: 3

→ The loop will execute for Index values 0, 1, and 2 (because the limit is exclusive at 3).

3. GetCellValue Method

The GetCellValue method retrieves a value from the Data Grid View (dgvAcctTrans) control.

It uses two input parameters:

Row → the row index (connected from For Loop Index)

Column → the column index (hard-coded as 0)

In the automation, the column value is explicitly set to 0, meaning it will always retrieve the Txn ID column.

4. Execution Order

Iteration

Row Index

Column (0 = Txn ID)

Retrieved Value

Output (MessageBox)

1

0

0

3255

MessageBox shows 3255

2

1

0

1763

MessageBox shows 1763

3

2

0

3451

MessageBox shows 3451

5. Output Sequence

The MessageBox displays three transaction IDs in order:

3255, 1763, 3451

Conclusion

The GetCellValue retrieves only the first column (Txn ID) for rows 0 to 2.

Thus, the automation will display the transaction IDs sequentially in three message boxes.

Correct Answer: A. 3255, 1763, 3451

Comprehensive Extract from Pega Robotics Documentation:

From Pega Robotics System Design and Implementation Guide, section “Using Data Grid View Controls in Automations”:

“The GetCellValue method retrieves the value at a specified row and column index of a DataGridView control.

When used in conjunction with a ForLoop component, the row parameter is typically connected to the ForLoop’s Index output.

The loop executes from the defined Initial value to one less than the Limit value, retrieving sequential cell values for each iteration.”

Detailed Reasoning Recap:

ForLoop Index runs: 0, 1, 2

GetCellValue(row, 0) retrieves column 0 (Txn ID) for each row.

MessageBox displays results sequentially.

Final Answer: A. 3255, 1763, 3451

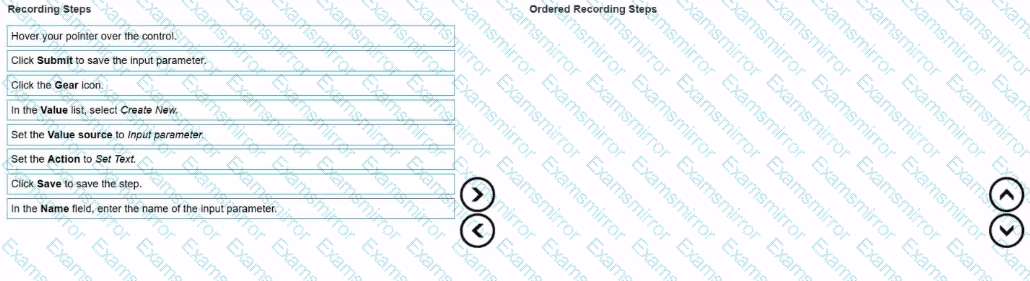

(Correct Order):

Hover your pointer over the control.

Click the Gear icon.

Set the Action to Set Text.

In the Value list, select Create New.

Set the Value source to Input parameter.

In the Name field, enter the name of the input parameter.

Click Submit to save the input parameter.

Click Save to save the step.

Targeted Step Creation is a Pega Robot Studio feature used to record automation steps directly by interacting with an interrogated control (for example, typing into a textbox). When the automation being recorded needs to receive data from another automation, an input parameter is configured as the value source for the recorded step.

According to the Pega Robotics System Design and Implementation Guide, section “Recording Steps and Configuring Input Parameters”:

“When recording a targeted step for an input control:

Hover over the target control and select the Gear icon to open the recording configuration.

Choose the appropriate action (for example, Set Text for text boxes).

Create a new value reference and select Input parameter as the value source.

Assign a name to the input parameter that will be passed from the calling automation.

Submit and save the step to finalize the recording.”

Detailed Step Reasoning:

Hover your pointer over the control.

This initializes the control recognition in targeted step creation mode.

Click the Gear icon.

Opens the step configuration dialog for the selected control.

Set the Action to Set Text.

Defines the intended action for the control (entering text).

In the Value list, select Create New.

Creates a new value definition to assign data to the control.

Set the Value source to Input parameter.

Ensures that the value for the text input will come from an external automation that invokes this one.

In the Name field, enter the name of the input parameter.

Defines the name of the input variable so that it can be referenced when calling this automation.

Click Submit to save the input parameter.

Confirms and stores the parameter definition.

Click Save to save the step.

Finalizes the recorded step in the automation sequence.

Final Ordered Steps:

Hover your pointer over the control.

Click the Gear icon.

Set the Action to Set Text.

In the Value list, select Create New.

Set the Value source to Input parameter.

In the Name field, enter the name of the input parameter.

Click Submit to save the input parameter.

Click Save to save the step.
