A hidden node problem occurs when two or more client devices are within range of the AP but cannot hear each other , causing frame collisions that lead to degraded performance.

According to RUCKUS One Online Help – RF Interference and Hidden Node Detection and RUCKUS AI Documentation – Airtime Efficiency Analysis , the symptoms include:

(A) Retransmissions: Frequent retries due to undetected collisions.

(D) Reduced throughput: Effective throughput decreases as airtime is wasted on retransmissions and ACK delays.

The issue is common in high-density or obstructed environments. Enabling RTS/CTS or BeamFlex+ can mitigate it by improving communication coordination.

“Channel changes” occur in interference mitigation, not hidden-node detection; “Excessive roaming” and “Increased Tx power” are unrelated effects.

Partner Domains are associated with the high-scale SmartZone architecture and are supported by Virtual SmartZone High Scale, or vSZ-H. They provide hierarchical multi-tenant administration so that service providers or large organizations can separate customers, administrators, zones, WLANs, and resources within a single scalable management platform. Administrators belonging to Partner Domains can be assigned permissions and resources independently, while a system-level administrator retains overall control. RUCKUS SmartZone documentation specifically discusses Partner Domain configuration and migration functionality in the vSZ-H/SZ300 architecture. vSZ-Essentials is targeted at smaller deployments and does not provide the same Partner Domain multi-tenancy model. Unleashed provides controller-less AP management, while ZoneDirector is an older controller platform. Consequently, the correct answer is vSZ-High Scale. rcw 3 Ruckus Wireless Documentation

================

802.11 networks use a shared-medium contention mechanism, meaning devices operating within the same contention domain must compete for airtime. One direct way to reduce contention is therefore to decrease the number of clients sharing that contention domain. Another is to design channel reuse carefully so neighboring cells use non-overlapping channels, reducing interference and unnecessary competition between nearby radios. RUCKUS design guidance emphasizes that co-channel interference forces devices capable of hearing each other to defer transmissions, effectively causing multiple cells to share the same airtime resource. Client isolation affects Layer 2 communication between clients but does not eliminate RF contention. VLAN tagging separates logical broadcast domains but does not create additional wireless airtime. Using excessively low minimum data rates can actually consume additional airtime. Therefore, B and C are correct. rcw 3 RUCKUS Networks

================

SmartZone uses a configuration hierarchy in which an AP Group can override the WLAN Group assigned at the Zone level separately for each radio. Therefore, adding a new SSID to the Zone ' s default WLAN Group does not guarantee that every AP in that Zone will advertise it. If the test AP belongs to an AP Group whose 2.4 GHz and 5 GHz radios override the Zone configuration with another WLAN Group, only WLANs contained in that overridden group will be broadcast. RUCKUS training documentation specifically instructs administrators to enable the AP Group ' s Override zone configuration option and select the required WLAN Group for each radio. Tunnel Mode and DHCP Option 43 do not determine whether the configured SSID is advertised, and routine WLAN Group changes do not require a manual AP reboot. Ruckus Training

================

For optimal voice and video performance , RUCKUS recommends maintaining a Signal-to-Noise Ratio (SNR) of 25 dB or higher to ensure a clear, low-latency wireless link.

According to RUCKUS One Online Help – Wi-Fi Quality and SNR Thresholds and RUCKUS AI Documentation – VoIP and Streaming Application Optimization , SNR values above 25 dB correspond to high modulation and coding schemes (MCS8–MCS11 in Wi-Fi 6), supporting stable throughput with minimal jitter or packet loss.

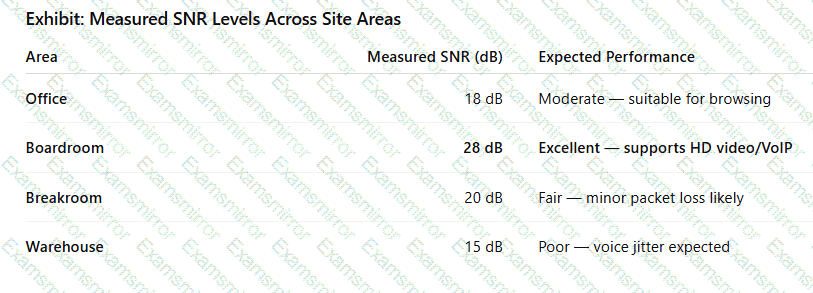

The exhibit shows that the Boardroom maintains an SNR of 28 dB , which exceeds the recommended 25 dB threshold, making it ideal for HD video conferencing and VoIP applications.

Other areas (Office, Breakroom, Warehouse) fall below optimal levels, which can lead to voice dropouts, jitter, and reduced data rates.

RUCKUS Analytics 3.5 User Guide – Client Experience Metrics further validates SNR as a key indicator of real-time application quality.

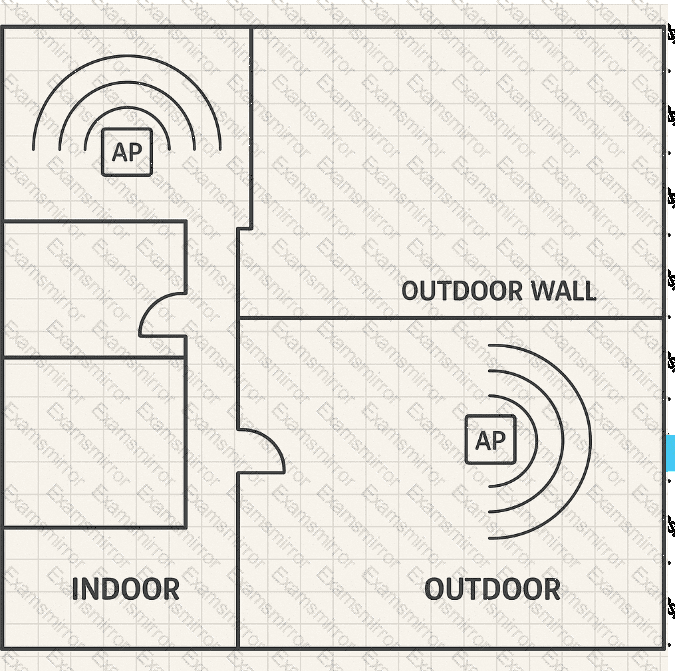

In this layout, the indoor APs are centrally mounted to provide even signal distribution in all directions, while outdoor APs are wall-mounted facing the exterior coverage zone.

According to RUCKUS One Online Help – Antenna Selection and Deployment and RUCKUS AI Documentation – RF Design Guidelines , the best configuration for complete coverage is:

Indoor space: Use Omni-Directional antennas , which radiate uniformly in 360° for even indoor coverage and minimal dead zones.

Outdoor space: Use Patch antennas , which are semi-directional with a 60°–90° beamwidth ideal for covering patios, courtyards, or building perimeters without wasting signal behind the AP.

Yagi antennas are highly directional and suited for long-distance point-to-point links, not area coverage. Semi-directional indoor antennas are unnecessary unless indoor partitioning or wall density requires focused energy.

This combination— Omni indoors and Patch outdoors —provides optimal performance for mixed indoor-outdoor designs and aligns with RUCKUS high-density deployment best practices .

To minimize co-channel interference (CCI) in multi-floor Wi-Fi environments, planners should assign different non-overlapping 2.4 GHz channels per floor —typically channels 1, 6, and 11.

According to RUCKUS One Online Help – RF Planning Best Practices , overlapping floors can cause vertical signal leakage, leading to channel contention and performance degradation. The RUCKUS Wi-Fi Planner allows layer-based channel mapping to simulate floor separation and interference.

While reducing transmit power can complement this strategy, channel segregation remains the primary CCI mitigation method. Increasing AP density or enabling SmartMesh does not resolve channel reuse conflicts in vertical topologies.

In non-proxy RADIUS mode , the SmartZone controller does not act as an intermediary for authentication requests. Instead, each access point (AP) communicates directly with the RADIUS server for client authentication.

According to RUCKUS One Online Help – WLAN Authentication Modes (Proxy vs Non-Proxy) , the key requirement is that each AP must be defined as a RADIUS client in the RADIUS server configuration. If not, authentication requests from the APs are rejected because the server does not recognize their source IPs or shared secrets.

This behavior differs from proxy mode , where only the SmartZone controller needs to be added as a RADIUS client. Port numbers (1812/1813) and encryption types remain standard, and both 802.1X and MAC authentication are supported.

Therefore, authentication failure in this scenario occurs because each AP must be authorized individually in the RADIUS server when non-proxy mode is used.

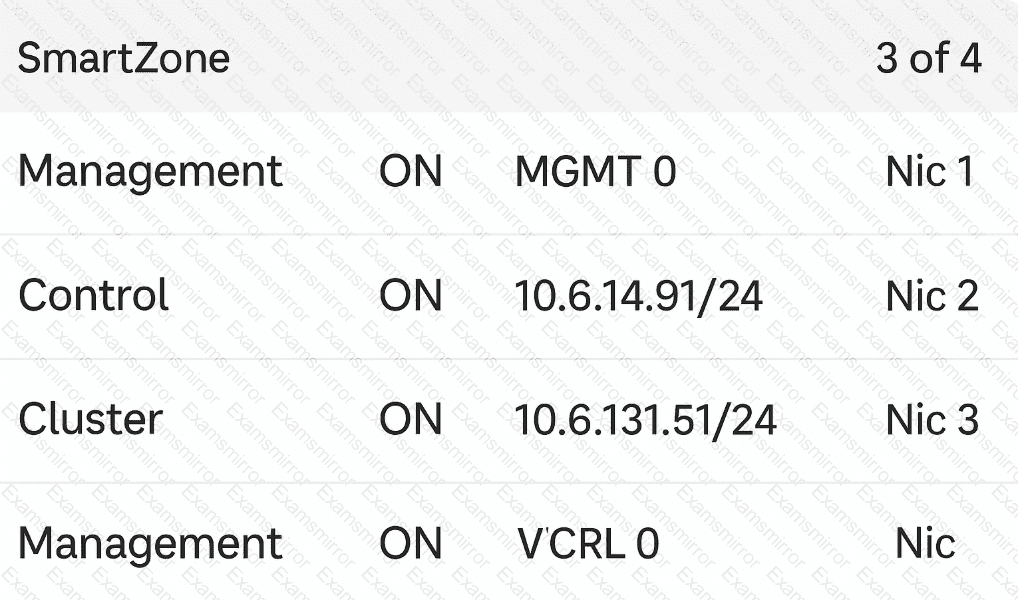

The exhibit shows a virtual SmartZone (vSZ) configuration running in a VMware environment with three separate virtual NICs (vNICs) , each mapped to a different port group: Management , Control , and Cluster .

According to RUCKUS One Online Help – SmartZone Interface Configuration and RUCKUS AI Documentation – SmartZone High-Scale Architecture , this design is specific to vSZ-H (High-Scale) deployments, which require three distinct network interfaces for distributed control, management, and cluster synchronization.

The three NIC mappings confirm physical or virtual separation of traffic for scalability and redundancy ( A and E ). vSZ-E (Essentials) requires only two interfaces (Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H ( D ).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is a vSZ-H system with three NICs and three port groups , each serving a dedicated function.

The virtual SmartZone Essentials (vSZ-E) controller provides centralized management for up to 10,000 APs and 1,000 switches , making it ideal for large distributed enterprises that prefer self-hosted or cloud-based control.

According to RUCKUS One Online Help – SmartZone Essentials Overview , vSZ-E offers:

(B) Scalability to meet medium-to-large enterprise requirements (well above 3,000 employees).

(C) Centralized management for Wi-Fi and wired networks, including policy enforcement and firmware control.

(D) Cloud-hosted deployment capability, including operation in environments such as AWS , Azure , or VMware .

Unlike vSZ-H , vSZ-E does not support multi-tenancy or Partner/Administrative Domains , and it does not natively tunnel user data back to the cloud; data is locally bridged unless configured via GRE or VPN.
