The purpose of the Invoke Code activity in UiPath is to invoke VB.NET or C# code, optionally passing it a list of input arguments. The Invoke Code activity allows the developer to write and execute custom code in VB.NET or C# within a UiPath workflow. The Invoke Code activity has a Code property, where the developer can enter the code to be executed. The Invoke Code activity also has an Arguments property, where the developer can specify the input and output arguments for the code. The Invoke Code activity can be useful for performing complex calculations, manipulating data, or integrating with external libraries or applications that are not supported by the existing UiPath activities. References: [Invoke Code]

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for building automation projects using UiPath Studio1. It uses the State Machine workflow type to handle different scenarios and exceptions in a robust and scalable way2. One of the states in the REFramework is the Get Transaction Data state, which is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to a variable3. The Orchestrator queue is a data structure that stores multiple items that need to be processed by the robots4. The queue can be organized into folders, which are logical containers that help group and manage the queues and other Orchestrator entities5.

If a developer implemented a process using the REFramework and an Orchestrator queue, they need to specify the name of the queue and the folder where it is located in the Config.xlsx file, which is an Excel workbook that stores the configuration settings and constants for the project6. The name of the queue should be entered in the Settings sheet, under the OrchestratorQueueName key, and the name ofthe folder should be entered in the Constants sheet, under the OrchestratorQueueFolder key6. These values are then read by the InitAllSettings workflow, which is invoked in the Init state of the REFramework, and assigned to the in_Config argument, which is a dictionary that holds all the configuration data7.

At runtime, the Get Transaction Data state invokes the GetTransactionData workflow, which takes the in_Config argument as an input and uses it to get the queue item from the Orchestrator queue8. The workflow uses the Get Queue Items activity, which requires the QueueName and FolderPath properties to be specified9. The QueueName property is set to in_Config(“OrchestratorQueueName”).ToString, and the FolderPath property is set to in_Config(“OrchestratorQueueFolder”).ToString8. If the folder specified in the Config.xlsx file does not exist in Orchestrator, the Get Queue Items activity will throw an exception with the message “Folder does not exist” and the process will be stopped10. Therefore, the correct answer is B. The process throws an exception in the “Get Transaction Data” state because the queue folder is not found, and then the process is stopped.

The other options are incorrect because:

Option A is incorrect because the process will not continue if the queue folder is missing. The Get Queue Items activity will fail and the exception will be caught by the Try Catch block in the GetTransactionData workflow, which will set the out_TransactionItem argument to Nothing and the out_TransactionID argument to "No more data"8. This will cause the transition condition from the Get Transaction Data state to the Process Transaction state to evaluate to False, and the transition condition from the Get Transaction Data state to the End Process state to evaluate to True3. The End Process state will invoke the SetTransactionStatus workflow, which will log the exception message and the process will be stopped11.

Option C is incorrect because an exception will be thrown and a message will be logged if the queue folder is missing. The exception will be thrown by the Get Queue Items activity, as explained above, and the message will be logged by the SetTransactionStatus workflow, which uses the Log Message activity to write the exception message to the Output panel and the Orchestrator logs11.

Option D is incorrect because the process will not reach the Process Transaction state if the queue folder is missing. The Process Transaction state is responsible for executing the business logic for each transaction item and invoking the SetTransactionStatus workflow to update the status of the item in the Orchestrator queue12. However, if the queue folder is missing, the Get Queue Items activity will throw an exception and the out_TransactionItem argument will be set to Nothing, which will prevent the transition from the Get Transaction Data state to the Process Transaction state83.

TheProfile Executionfeature in UiPath Studio allows developers toanalyze the performance of workflows. It shows theexecution time of each activityas a cumulative percentage. This feature can be used duringrun or debug modeto optimize performance and detect bottlenecks.

The role of Triggers in the UiPath Integration Service is to provide a mechanism for subscribing to specific events from third-party applications, automatically starting processes in Orchestrator. The UiPath Integration Service is a cloud-based service that enables seamless integration between UiPath and various external applications, such as Salesforce, ServiceNow, Workday, and more. The Integration Service allows the developer to create Triggers that define the conditions and actions for starting processes in Orchestrator based on events that occur in the external applications. For example, a Trigger can be created to start a process that updates a customer record in UiPath when a case is closed in Salesforce. The Triggers can be configured and managed from the UiPath Integration Service portal or from the UiPath Studio.

In the REFramework, best practices suggest storing sensitive information like email account credentials in an Orchestrator Credential asset. This asset is then referenced in the Config.xlsx file, specifically in the Assets sheet, ensuring secure and centralized management of credentials.

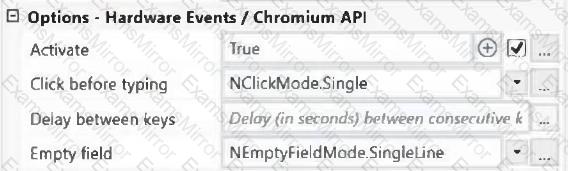

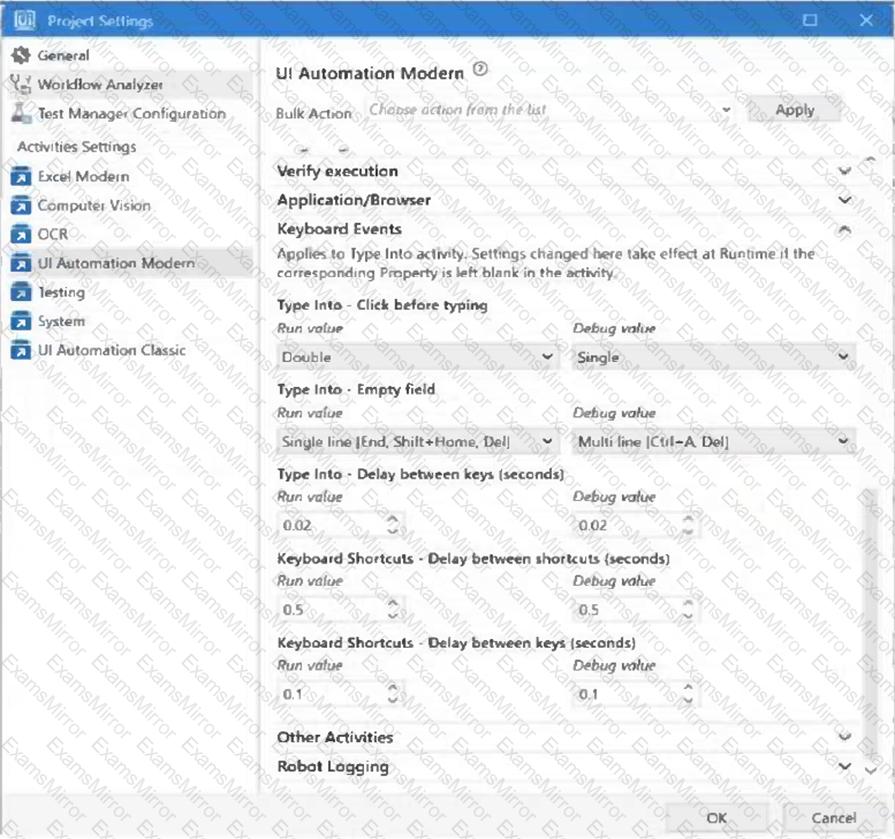

The behavior of the Type Into activity when executing the workflow is that the activity will remove a Single Line in Run mode and Multi Line in Debug mode. This is because the activity has the Empty field property set to NEmptyFieldMode.SingleLine, which means that the activity will delete the existing content in the field by sending Ctrl+A and Delete keystrokes before typing the text. However, the activity also has the Debug mode property set to NEmptyFieldMode.MultiLine, which means that the activity will delete the existing content in the field by sending Ctrl+A, Shift+Home, and Delete keystrokes before typing the text. The Debug mode property overrides the Empty field property when the workflow is executed in Debug mode. Therefore, the activity will use different keystrokes to empty the field depending on the mode of execution. References: [Type Into], [Empty Field], [Debug Mode]

In long-running workflows, when aform actionis sent toAction Center, the job issuspendeduntil the form is completed by theassigned user. Only uponcompletion of the actiondoes the job resume execution. This ensures that business-critical human validation is accounted for before the process continues.

TheProfile Executiontool in Studio can be used in bothRunandDebugmodes. However, it's important to note thatprofiling data may vary between debugging and production runsdue to differences in execution behavior (e.g., breakpoints, step-by-step execution, and extra logging during debugging).

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.
