The correct answer is LOCAL_PREF . In BGP, the Local Preference attribute is used inside an autonomous system to influence which exit path is preferred for outbound traffic. In this scenario, the Versa Secure SD-WAN CPE receives routes from two upstream service providers, SP1 and SP2. To prefer routes learned from AS 64515 over routes learned from AS 64519, you would apply a BGP import or route policy that assigns a higher local preference to routes received from SP1. Versa SD-WAN design guidance shows this exact routing concept: an import policy can manipulate the Local-Pref attribute to prefer one advertised route path over another. The Versa output examples also display “Local Preference” as a BGP route attribute used in route selection.

MULTI_EXIT_DISC, or MED, is generally used to influence how a neighboring AS enters your AS, not how your CPE prefers routes learned from different upstreams. ORIGIN is part of BGP best-path selection but is not normally the administrative tool used to prefer one provider. NEXT_HOP identifies the next-hop address and does not directly define route preference.

The correct answers are A, B, and E . Versa Director supports multiple notification and event-publishing mechanisms. For email-style system and alarm notifications, Versa Director supports SMTP configuration. The Director documentation lists Configure SMTP Notifications and explains that email templates require SMTP notifications to send test emails or operational messages.

Versa Director also supports webhook notifications. The Director GUI overview states that Notification Configuration includes webhook-based notifications for alarms, and the Director documentation includes a dedicated workflow for configuring webhook notifications for alarms.

Kafka is also a supported event-notification method. Versa’s Kafka Notifications documentation states that Versa Director can publish event notifications to an Apache Kafka server when events occur on a Director node or a VOS device. It also lists notification topics for device events, Director events, Director task notifications, and object-change event notifications.

MMS is not a Versa Director system event notification method. SMS can be configured for text messaging in some notification contexts, but for the three methods listed for system event notifications in this answer set, the verified options are SMTP, Webhook, and Kafka.

The correct answer is B . The requirement is to stop branch devices from sourcing traffic using IP addresses that do not belong to the branch. This is a source-address enforcement problem, so the correct control is a stateful firewall policy that permits only traffic whose source IP address matches the valid branch LAN prefix or branch-assigned address range. Versa’s stateful firewall configuration documentation explains that firewall policy rules include source matching, where the administrator selects the source zone and one or more source addresses to which the rule applies.

By creating an allow rule for the legitimate branch source prefixes and placing a deny rule for all other sources from the branch LAN zone, the VOS device prevents spoofed or unauthorized source addresses from leaving the branch. This is consistent with Versa security policy behavior, where firewall rules evaluate traffic based on zones, addresses, services, applications, and other match criteria. Captive portal verifies user identity but does not directly prevent IP spoofing. An IP filter profile based on applications does not ensure the source address belongs to the branch. Option D is incorrect because allowing traffic to the assigned LAN range controls destination traffic, while this requirement is about validating the source IP address of outbound branch traffic.

Comprehensive and Detailed 150 to 250 words of Explanation From Versa Networks SDWAN Topics:

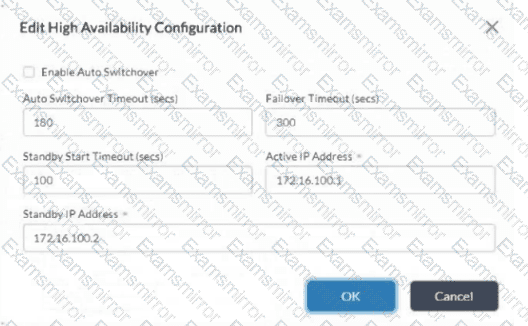

The correct answers are B and D . In the exhibit, Enable Auto Switchover is not selected. However, the Failover Timeout value is configured as 300 seconds . Versa Director HA documentation states that the Failover Timeout is the timeout period before the standby Director node can promote itself to become the active Director node. Therefore, if the active or primary Director fails, the backup Director can automatically assume the active role after the failover condition and timeout are met.

The important distinction is that Auto Switchover controls revertive behavior after recovery, not the initial standby takeover during failure. Versa documentation explains that Director HA is non-revertive by default. This means that when the designated master or primary Director comes back online after recovery, it is not automatically promoted back to active unless automatic switchover is enabled. To make the designated active Director automatically reclaim the active state after recovery, Enable Auto Switchover must be selected and the Auto Switchover Timeout must expire.

The correct answer is A . Versa template-based provisioning is designed to separate common configuration from site-specific values. A device template can define common interface, service, routing, and SD-WAN behavior, while variables and device bind data provide unique values for each appliance. This allows the same template to be reused across many branches while assigning different WAN IP addresses, gateways, VLAN IDs, circuit names, or other per-site parameters during onboarding.

In this scenario, Branch-A and Branch-B use the same template but receive different WAN VLAN IDs from bind data. That is normal and expected in a scalable SD-WAN deployment. Without variables, administrators would need to create a separate template for every site, which would be operationally inefficient and increase configuration drift.

The Controller does not automatically rewrite VLAN IDs after IPsec comes up; VLAN IDs must be part of the generated device configuration. It is also not required to duplicate the device template for each branch. The correct Versa design is reusable templates plus unique bind-data values.

The correct answer is A . Versa documentation states that from a Director node, administrators can monitor the Director node itself, provider organizations, tenants, and VOS devices. The procedure begins by selecting the Monitor tab in the top menu bar. When a Director node is selected, the monitor screen displays panes such as System Detail , Recent Events , Package Information , Uptime , High Availability , and License .

This view is intended for operational monitoring and troubleshooting. It allows administrators to see system resource status, recent alarms and events, software package details, uptime, HA configuration, and licenses installed on managed VOS devices.

Workflows are used for provisioning and template-based configuration, not monitoring these system panes. Analytics Search is useful for querying logs and flow records, but it is not the Director system-monitoring screen described in the question. Administration > Connectors relates to integration and resource connectivity rather than Director node health and license monitoring. Therefore, the correct location is the Monitor tab.

The correct answer is B . In the exhibit, Versa Director shows multiple branch interfaces and a Live Data column. To populate the bandwidth graph with current real-time statistics for all WAN circuits, Live Data must be selected for each WAN circuit that should be monitored. Versa documentation states that from a Director node, administrators can monitor VOS devices, provider organizations, tenants, events, and alarms. It also explains that Versa Director, together with Versa Analytics, can poll VOS devices in real time to provide visibility into what is happening on those devices and to assist with troubleshooting.

Because the requirement is to find the current bandwidth of each WAN circuit, simply refreshing the page is not enough. Refreshing only reloads the dashboard; it does not enable real-time polling for interfaces that are not selected. Selecting Live Data only for MPLS circuits would populate only MPLS-related data and would not satisfy the requirement for all WAN circuits. Unselecting and reselecting only the INET circuit affects only that one circuit. Therefore, the correct operational step is to enable Live Data for all WAN circuits shown in the branch interface dashboard.

The correct answer is A . Versa SD-WAN data-path troubleshooting documentation shows the VSM local-tunnel-site output and includes a legend in which BN means Behind NAT . In the WAN local link details, the output also displays a field named WAN lcl link behind NAT , with values such as 1 or 0, and link flags including [ BN CT PT SLA-P ] when the WAN link is behind NAT.

This information is important because NAT status affects how SD-WAN tunnel endpoints are discovered and how public and private transport addresses are represented. The same output includes both public and private WAN link addresses, making it useful for troubleshooting sites behind NAT, stale tunnel endpoints, or incorrect public-address learning.

WAN lcl vrf-id identifies the local transport routing instance ID, not NAT status. Tenant ID identifies the tenant context. Neighbour site type identifies whether the remote endpoint is a Controller, hub, or SD-WAN site. None of those fields specifically confirms whether the local WAN transport is behind NAT.
