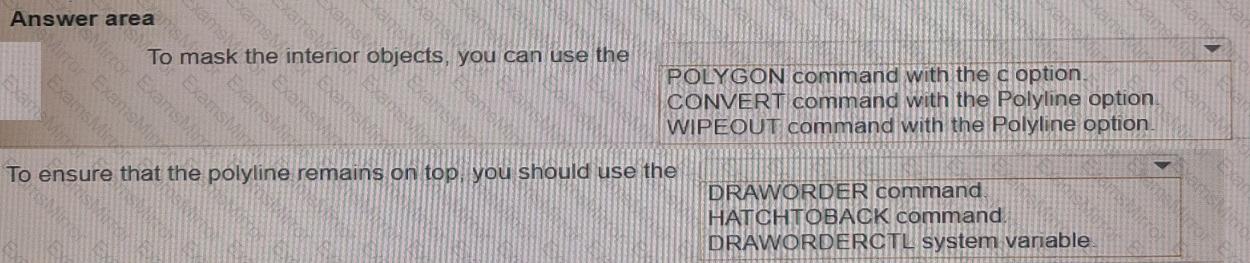

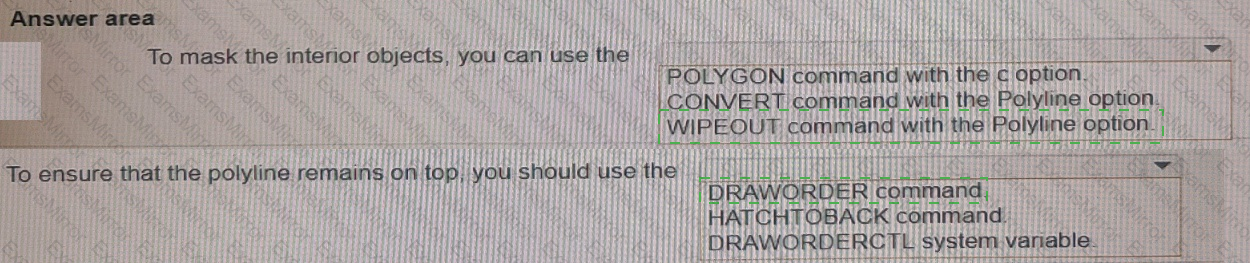

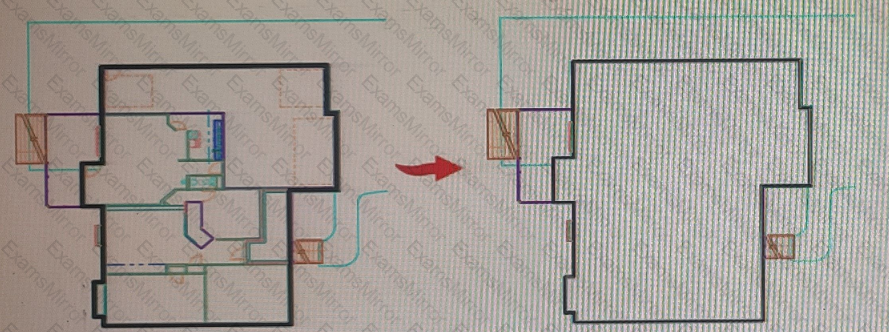

BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23

https://forums.autodesk.com/t5/autocad-forum/polyline-plan-view-boundary-of-point-cloud/td-p/6251860

 Open the WBLOCK Command: Type WBLOCK in the command line and press Enter.

 Define the Block: Select the objects you want to include in the block.

 Specify the Base Point: Select the base point for the block insertion.

 Insert Units: Ensure to set the Insert Units option to match the desired unit for automatic scaling when the block is inserted into other drawings. This setting will control how the block is scaled based on the units of the target drawing.

References:

AutoCAD Help Documentation on Write Block (WBLOCK) command

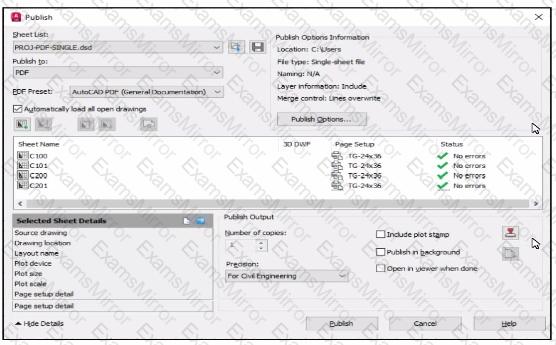

In AutoCAD, when managing sheets and layouts, different properties are used to control and organize sheet information.

Sheet Custom Property: This property allows you to define custom information specific to each sheet or layout. It is used for unique identifiers that are not globally applied to the entire sheet set but rather specific to individual sheets.

Setting the Property:

Open the Sheet Set Manager.

Right-click the sheet and select Properties.

Add a custom property for the sheet number based on discipline (e.g., C001).

Define the Custom Property:

In the Properties dialog, add a new property for the sheet number.

Enter the value (e.g., C001) for the specific sheet.

Using a Sheet Custom Property ensures that each sheet has a unique identifier that can be easily managed and referenced.

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

To ensure that all drawing information is visible when plotting from an ISO A3 layout to an ISO A4 sheet size, the correct plot settings need to be applied.

Open the Plot Dialog:

Type PLOT in the command line and press Enter.

Set Plot Area:

In the Plot dialog, set the "Plot Area" to Extents. This ensures that everything within the drawing extents will be included in the plot.

Adjust Plot Scale:

Set the "Plot Scale" to Fit to paper. This option will automatically scale the drawing to fit within the ISO A4 sheet size (297 mm x 210 mm).

Other Settings:

Ensure that the correct printer/plotter and paper size (ISO A4) are selected.

Optionally, check the "Center the plot" option to ensure the drawing is centered on the sheet.

Save Changes:

Click on the "Preview" button to check the output. If everything looks correct, click "OK" to plot the drawing.

 Open the Block Editor: Select the north arrow block and enter the Block Editor by typing BEDIT in the command line and pressing Enter.

 Replace Text with Field: Select the text object (1" = 20') and delete it. Then, use the MTEXT command to create a new text object.

 Insert Field: In the Mtext Editor, right-click and choose Insert Field. In the Field dialog box, select Object as the Field Category, and choose Viewport as the Field Names.

 Select the Viewport Scale: Choose the Standard Scale property and click OK. This will create a dynamic text that updates based on the viewport scale.

 Save and Close: Save the block changes and exit the Block Editor.

References:

AutoCAD Help Documentation on Using Fields in AutoCAD

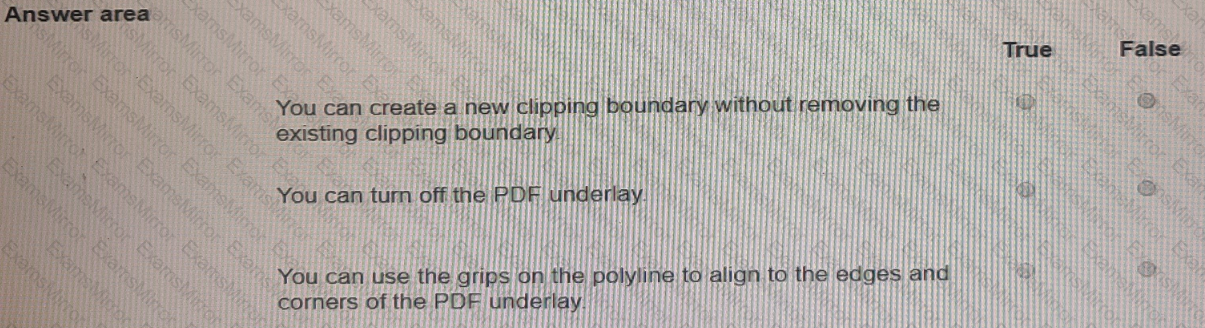

False: You cannot create a new clipping boundary without removing the existing clipping boundary. If you want to change the clipping boundary, you have to select the PDF underlay, right-click and choose Remove Clipping Boundary first, and then use the Clip PDF command again with a different option12.

True: To access the Underlay Layers dialog box, you have to select a PDF underlay, right-click and choose PDF Layers2. In the Underlay Layers dialog box, you can click the light bulb icon for the layer name that you want to turn on or off2.

True: To use the Align command, you have to select a polyline, right-click and choose Align3. Then you have to specify two source points on the polyline and two destination points on the PDF underlay that correspond to each other3. You can also specify a third pair of points if needed3. Finally, you have to press Enter twice to confirm the alignment3. The statement "You can use the grips on the polyline to align to the edges and corners of the PDF underlay" is true. When you place a rectangular polyline over a PDF underlay and use it as a clipping boundary, the polyline's grips can be used to adjust its size and position so that it aligns with the edges and corners of the underlay.

By hovering the cursor over a grip, you can see its tooltip display the name of the grip and its function. If you then click and drag the grip, you can move it along its corresponding axis to resize the boundary. This allows you to adjust the clipping boundary to fit exactly over the content you want to display.

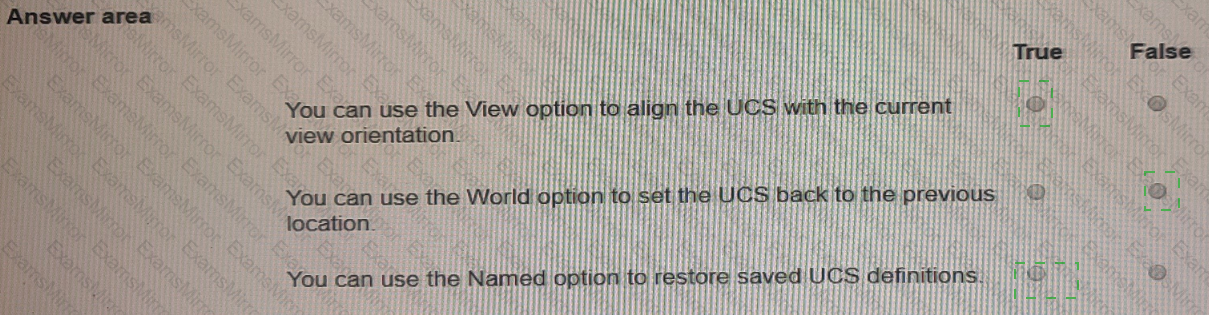

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the View option to align the UCS with the current view orientation. This option rotates the UCS so that it matches your current view of a 3D model. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

Falseccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the World option to set the UCS back to its default orientation. This option resets the UCS so that it matches the WCS (world coordinate system).

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the Named option to save or restore named UCS definitions. This option allows you to create custom UCSs and switch between them easily.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

a baseline dimension is a linear, angular, or ordinate dimension that is measured from the baseline of a previous or selected dimension. The spacing between baseline dimensions can be set from the Dimension Style Manager, Lines tab, Baseline Spacing (DIMDLI system variable).

The most efficient method to avoid the problem of dimensions being too close together in the future is to use Dimension Style Manager. This will allow you to change the default spacing for all baseline dimensions in your drawing.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-D8849F82-C542-45A1-A81C-EE848A0A30D3-htm.html
