The correct statement about the quarantine VLAN on FortiSwitch is:

B. Users who fail 802.1X authentication can be placed on the quarantine VLAN.This feature allows network administrators to isolate devices that do not meet the network’s security criteria as determined through 802.1X authentication. Placing these devices in a quarantine VLAN restricts their network access, thereby protecting the network from potential security threats posed by unauthorized or compromised devices.

Option A is incorrect as the presence of a DHCP server in a quarantine VLAN depends on specific network configurations. Option C is incorrect without more context regarding global settings, and option D misstates the functionality of quarantine VLANs, as their primary use is to restrict, not block, devices without additional VLAN configuration changes.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

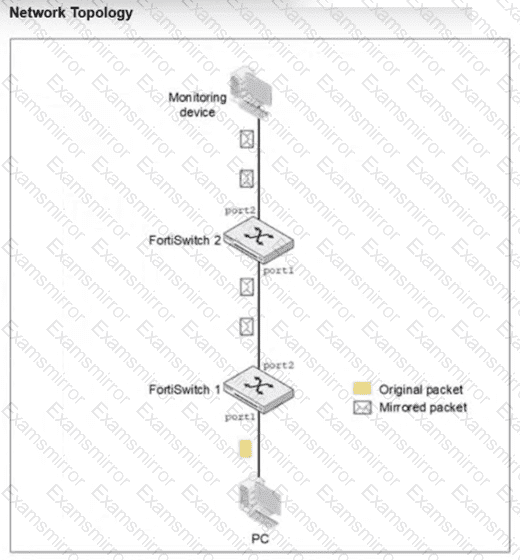

Standard SPAN Limitation: Switched Port Analyzer (SPAN) is a local port mirroring technology. By design, SPAN copies traffic from one or more source ports (or VLANs) to a destination port on thesame physical switch.

Traffic Forwarding: Standard SPAN traffic is not encapsulated and does not have the necessary headers to be routed or switched across a network fabric or trunk links between multiple switches. Therefore, if the source port is on FortiSwitch 1 and the monitoring device is on FortiSwitch 2, the mirrored frames will not reach the destination.

Alternative Solutions: To monitor traffic across multiple switches (multi-hop), technologies such asRemote SPAN (RSPAN)orEncapsulated Remote SPAN (ERSPAN)must be used. RSPAN uses a specific VLAN to carry the mirrored traffic across switches, while ERSPAN encapsulates the traffic in GRE packets so it can be routed across Layer 3 boundaries.

Troubleshooting Conclusion: Since the scenario describes a standard SPAN configuration and the traffic is failing to traverse from FortiSwitch 1 to FortiSwitch 2, the most likely reason is that basic SPAN does not support forwarding mirrored traffic across multiple switches.

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

" Classification: FortiSwitch maps packets with a given CoS or DSCP marking to an egress queue. There are eight egress queues on each port: queues 0 to 7. "

In Quality of Service (QoS) mechanisms, the process of mapping packets with specific CoS (Class of Service) or DSCP (Differentiated Services Code Point) markings to an egress queue involves two key steps:classificationandqueuing.

Classification: This occurs on the ingress side (incoming traffic). The switch examines the packet headers (e.g., CoS or DSCP values) to determine how the traffic should be treated. Based on this classification, the switch assigns the packet to a specific priority level or queue.

Queuing: Once the packet is classified, it is mapped to an egress queue based on its priority level. The egress queues are used to manage how traffic is transmitted out of the switch.

Option A (Queuing for egress traffic)refers to managing how packets leave the switch, but it does not involve the initial mapping of CoS/DSCP values to a queue.

Option C (Rate limiting for egress traffic)is about controlling the rate of outgoing traffic, which is unrelated to CoS/DSCP mapping.

Option D (Marking for ingress traffic)involves modifying the CoS or DSCP values of packets as they enter the switch, but it does not map them to an egress queue.

Thus,classification for ingress trafficis the mechanism that identifies and maps packets with specific CoS or DSCP markings to an appropriate egress queue.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.

Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.

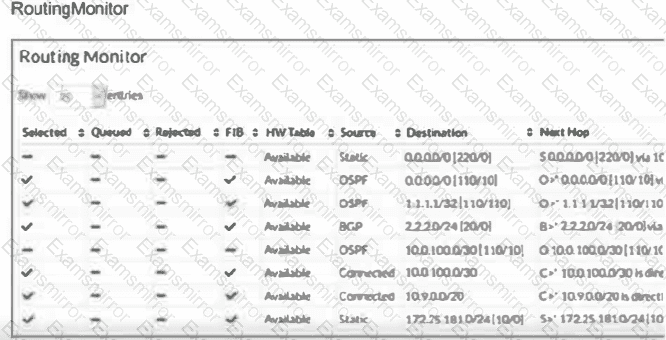

From the exhibit and the details given about the routes not installed in the FIB:

These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.

These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.

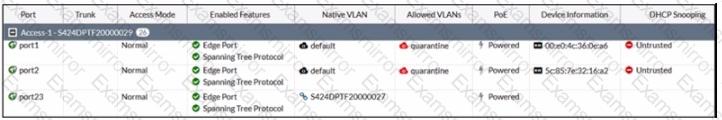

The information in the " Native VLAN " column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays " $424MPTF20000027, " which matches the format of a Fortinet device serial number.

Here ' s a breakdown of the evidence in the image:

Native VLAN:The " Native VLAN " column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ( " $424MPTF20000027 " ).

No Trunk Information:The " Trunk " column is blank for port23, indicating it ' s not configured as a trunk member.

Other Ports:Port1 and port2 show " default " in the " Native VLAN " column, which is the expected behavior for access ports.

Fortinet FortiSwitch devices typically don ' t display the serial number of adjacent FortiSwitch devices in the " Native VLAN " column. This column is reserved for VLAN information on trunk ports.

In FortiSwitchOS 7.6,DHCP snoopingis a Layer 2 security feature that validates DHCP traffic and protects the LAN from rogue DHCP servers. The feature enforces atrust modelon switch ports: ports connected toward legitimate DHCP server infrastructure must be markedtrusted, while edge/access ports facing clients are typicallyuntrusted. When DHCP snooping is enabled on a VLAN (in this case,Student), FortiSwitch inspects DHCP messages and applies filtering rules based on port trust status.

From the exhibit, bothport1(connected to the Linux-Server DHCP server) andport4(connected to the Linux-Client) showDHCP Snooping: Untrusted. In this configuration, the switch treats the DHCP server-facing port as untrusted and, by design, willblock DHCP server-originated messages(such as DHCPOFFER/DHCPACK) arriving on that interface. This prevents the DHCP handshake from completing and effectively stops DHCP from functioning across that VLAN segment. Operationally, this is commonly observed as “no DHCP traffic” at the server/application layer because the exchange cannot progress normally when the server side is not trusted.

Option C is incorrect because the client-facing port is expected to be untrusted. Options A and D do not align with the exhibit: the ports are already placed in the Student VLAN as native VLAN, so the primary issue is the DHCP snooping trust role.

Therefore, the most likely cause is thatport1 is configured as an untrusted port(it must be trusted for a DHCP server), makingBthe correct answer.
