In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.

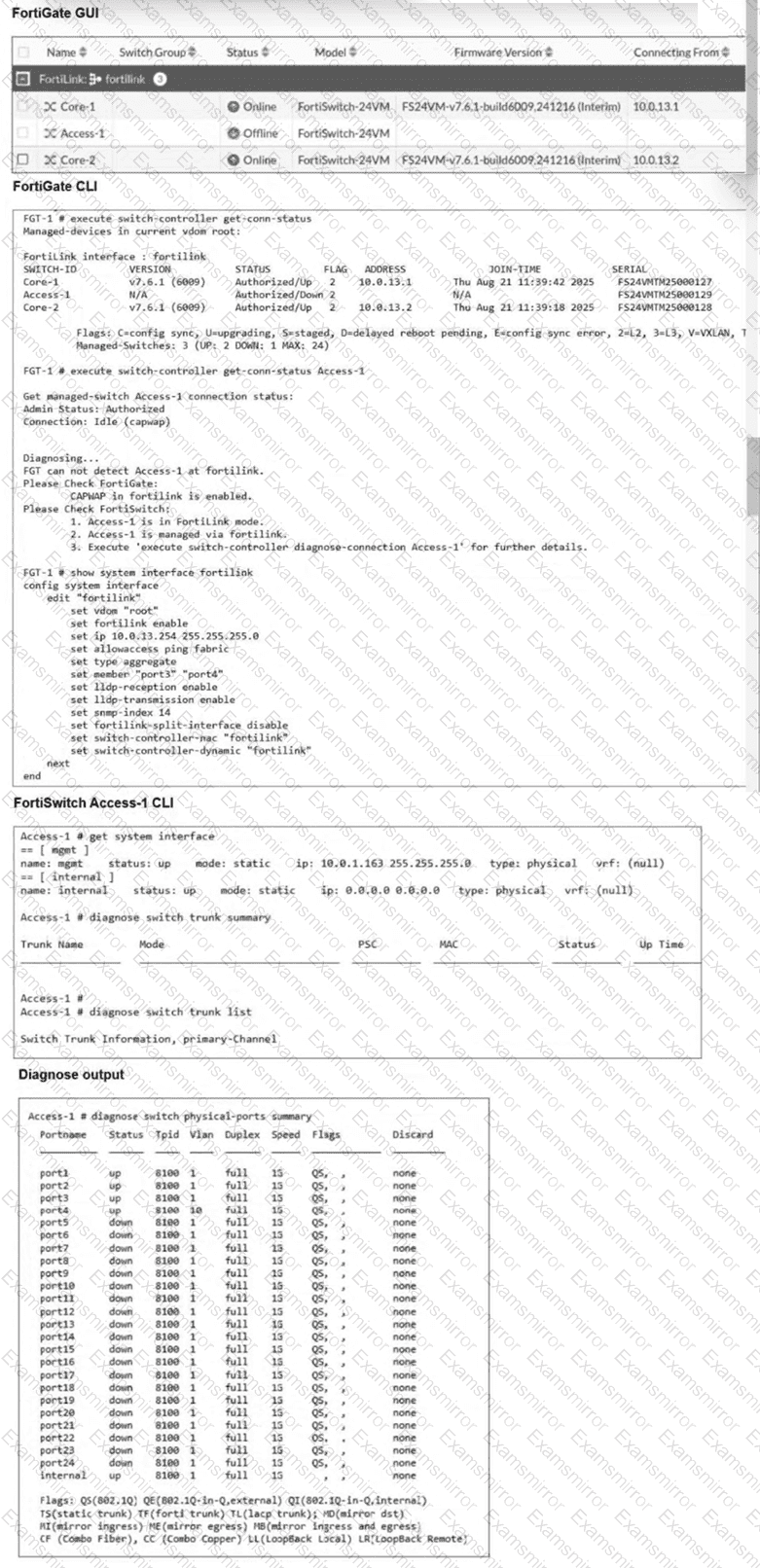

From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.

Examining the FortiSwitch Access-1 CLI output reveals the key issue:

Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.

This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.

Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.

Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.

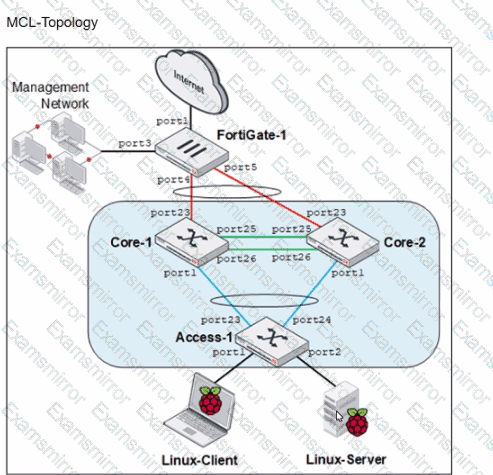

The STP (Spanning Tree Protocol) discarding state on port1 of Core-2, after Core-1 and Access-1 are managed and authorized by FortiGate-1, is likely due to the lack of an MCLAG (Multi-Chassis Link Aggregation Group) configuration between Core-1 and Core-2. In typical network configurations involving STP and MCLAG, the absence of MCLAG can lead to STP blocking one of the redundant paths to prevent loops, which is a critical function of STP. Port1 on Core-2 being in a discarding state suggests that it has been identified as providing a redundant path that could potentially create a network loop, hence STP has placed this port in a blocking (discarding) state to maintain a loop-free topology.

To cause endpoints to exchange PoE information and negotiate power with the managed FortiSwitch via LLDP, you should configure the LLDP profile to include power management in the advertised LLDP-MED TLVs. Here are the steps:

Access the LLDP Profile Configuration:Start by entering the LLDP profile configuration mode with the command:

config switch-controller lldp-profile

edit " LLDP-PROFILE "

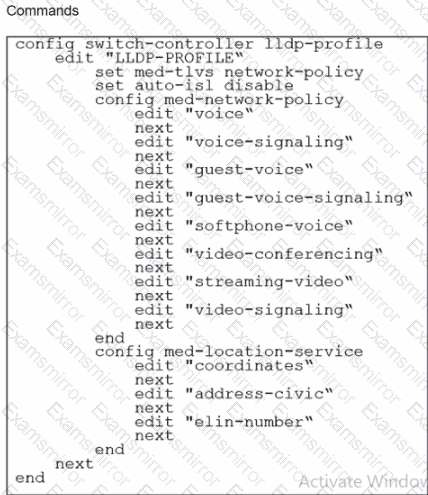

Enable MED-TLVs:Ensure that MED-TLVs (Media Endpoint Discovery TLVs) are enabled. These TLVs are used for extended discovery relating to network policies, including PoE, and are essential for PoE negotiation. They include power management which is crucial for the negotiation of PoE parameters between devices. The command to ensure network policies are set might look like:

set med-tlvs network-policy

Add Power Management TLV:Specifically add or ensure the power management TLV is part of the configuration. This will advertise the PoE capabilities and requirements, enabling dynamic power allocation between the FortiSwitch and the connected devices (like VoIP phones or wireless access points). This can typically be done within the network-policy settings:

config med-network-policy

edit < policy_index >

set poe-capability

next

end

Save and Apply Changes:Exit the configuration blocks properly ensuring changes are saved:

End

Verify Configuration:It’s always good practice to verify that your configurations have been applied correctly. Use the appropriateshoworgetcommands to review the LLDP profile settings.

By adding the power management as part of LLDP-MED TLVs, the FortiSwitch will be able to communicate its power requirements and capabilities to the endpoints, thereby facilitating a dynamic power negotiation that is crucial for efficient PoE utilization.

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, several prerequisite steps and compatibility checks must be performed before a FortiGate can successfully discover, authorize, and manage a FortiSwitch or a stack of switches.

First, theSwitch Controller feature must be enabled (Option B)on the FortiGate.2By default, on many FortiGate models, the " Switch Controller " menu is hidden in the GUI to simplify the interface. Administrators must navigate toSystem > Feature Visibilityand toggle theSwitch Controllerswitch to " on " to expose the management menus required to configure FortiLink interfaces and manage FortiSwitch units.3Without this feature enabled, the FortiGate cannot act as a centralized management entity for the switch fabric.

Second, theFortiSwitchOS version must be compatible with FortiOS (Option D). While it is not strictly required to be on the " latest " version (Option A), the firmware on both devices must fall within the supported compatibility matrix provided by Fortinet. If the versions are incompatible, the FortiLink tunnel (CAPWAP) may fail to establish, or certain management features may be unavailable in the FortiOS GUI.

Regarding the incorrect options:Option Ais not a requirement because older, compatible versions are often used in stable environments.Option Cis incorrect because FortiLink interfaces are the very mechanism used for management; they must be correctly configured and enabled, not disabled, for management to function. Therefore, ensuring feature visibility and verifying the compatibility matrix are the two essential administrative requirements for establishing a managed switch stack.

" The tool is a Python script that converts the supported settings in a FortiSwitch standalone configuration file to the equivalent FortiOS settings for a managed switch. " Reference: FortiSwitch 7.6 Study Guide, page 349

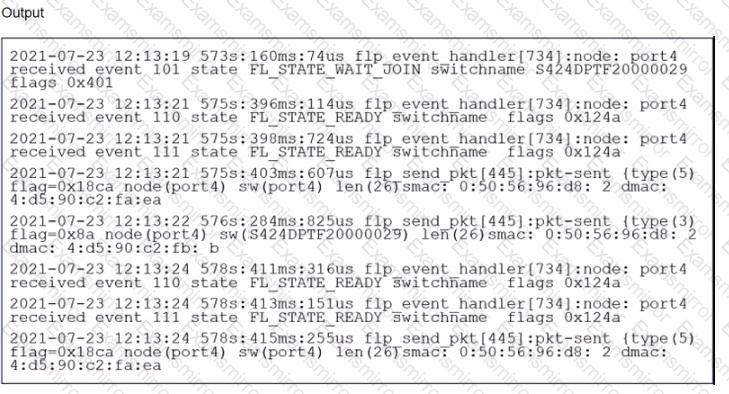

The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:

Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.

573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.

Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.

switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.

flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.

Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).

Why the Other Options Are Less Likely:

C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.

D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.

In Summary:

The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the automatic discovery and subsequent management of a FortiSwitch by a FortiGate controller is primarily facilitated by theLink Layer Discovery Protocol (LLDP). LLDP is an industry-standard, layer-2 protocol that allows network devices to advertise their identities and capabilities to neighbors on the same physical link.

When a factory-default FortiSwitch is connected to a FortiGate port (specifically one configured as a FortiLink interface), the switch automatically sends outLLDP advertisements. These advertisements include specificOrganizationally Specific TLVs (Type-Length-Values)that identify the device as a FortiSwitch and provide its management MAC address and current state. The FortiGate " listens " for these LLDP frames; once it receives a frame from a compatible FortiSwitch, it automatically lists the switch in theManaged FortiSwitchinventory as a " discovered " device awaiting authorization.

WhileZero-touch deployment (Option A)describes the overall goal of deploying a switch without manual CLI configuration, it is the underlyingLLDPprotocol that provides the technical mechanism for the initial detection. Once the switch is discovered via LLDP and authorized, the FortiGate uses a DHCP server on the FortiLink interface to assign an IP address to the switch and establishes a secureCAPWAP(Control and Provisioning of Wireless Access Points) tunnel for management. TheFortiLink heartbeat (Option D)is a secondary mechanism usedafterthe connection is established to monitor the health and status of the link, rather than for the initial detection of the device.

To deploy FortiSwitch in a remote location with multiple VLANs and no Layer 3 switch or router, you would need specific configurations:

VXLAN Interfaces (B):

Purpose:VXLAN (Virtual Extensible LAN) allows network segmentation without a Layer 3 device, extending VLAN capabilities across dispersed geographical locations over the WAN.

Implementation:Configuring VXLAN on both FortiSwitch and FortiGate can encapsulate Layer 2 traffic over a Layer 3 network, making it ideal for scenarios lacking dedicated routing hardware.

Appropriate Hardware (D):

Requirement:Not all FortiSwitch models might support advanced features like VXLAN; hence, ensuring that the hardware can support such configurations is crucial.
