Pass the Fortinet Certified Professional Security Operations NSE7_SOC_AR-7.6 Questions and answers with ExamsMirror

Exact Extract: “MITRE ATT & CK classifies and describes cyberattacks and intrusions through 14 tactics, each representing an adversary ' s technical objective… These categories are further broken down into specific techniques and subtechniques.”

Exact Extract: “When an incident contains alerts correlated with known adversary techniques, they are displayed on the MITRE ATT & CK matrix directly in the incident view. This helps analysts quickly understand the attack progression, identify affected tactics… and prioritize response actions based on threat context.”

The correct answers are A and C . The fake HR login page captured usernames and passwords, which maps to Credential Access because the attacker’s objective was to steal valid credentials. The later use of those stolen credentials to sign in through the company’s web VPN maps to Initial Access , because the attacker used valid credentials to gain access to the victim environment.

B is wrong because the scenario does not describe command-and-control beaconing, remote control, or malware maintaining communication with attacker infrastructure. D is wrong because there is no evidence of log clearing, obfuscation, masquerading for evasion after compromise, or disabling defenses.

Technical Deep Dive: In Fortinet SOC terms, the evidence chain would likely include FortiMail phishing delivery logs, web/DNS logs for the fake HR page, FortiClient or browser telemetry if available, and FortiGate SSL VPN successful-login events. FortiSOAR can enrich the phishing URL/domain, link affected users, and escalate the VPN login into an incident. The higher-value detection is not only blocking the domain; it is correlating credential harvesting with subsequent successful VPN authentication. NP/CP acceleration is not the main factor because the detection depends on logs, identity correlation, and MITRE mapping.

Understanding the Event Handler Configuration :

The event handler is set up to detect specific security incidents, such as spearphishing, based on logs forwarded from other Fortinet products like FortiSandbox.

An event handler includes rules that define the conditions under which an event should be triggered.

Analyzing the Current Configuration :

The current event handler is named " Spearphishing handler " with a rule titled " Spearphishing Rule 1 " .

The log viewer shows that logs are being forwarded by FortiSandbox but no events are generated by FortiAnalyzer.

Key Components of Event Handling :

Log Type : Determines which type of logs will trigger the event handler.

Data Selector : Specifies the criteria that logs must meet to trigger an event.

Automation Stitch : Optional actions that can be triggered when an event occurs.

Notifications : Defines how alerts are communicated when an event is detected.

Issue Identification :

Since FortiSandbox logs are correctly forwarded but no event is generated, the issue likely lies in the data selector configuration or log type matching.

The data selector must be configured to include logs forwarded by FortiSandbox.

Solution :

B. Configure a FortiSandbox data selector and add it to the event handler :

By configuring a data selector specifically for FortiSandbox logs and adding it to the event handler, FortiAnalyzer can accurately identify and trigger events based on the forwarded logs.

Steps to Implement the Solution :

Step 1 : Go to the Event Handler settings in FortiAnalyzer.

Step 2 : Add a new data selector that includes criteria matching the logs forwarded by FortiSandbox (e.g., log subtype, malware detection details).

Step 3 : Link this data selector to the existing spearphishing event handler.

Step 4 : Save the configuration and test to ensure events are now being generated.

Conclusion :

The correct configuration of a FortiSandbox data selector within the event handler ensures that FortiAnalyzer can generate events based on relevant logs.

Overview of Indicators of Compromise (IoCs) : Indicators of Compromise (IoCs) are pieces of evidence that suggest a system may have been compromised. These can include unusual network traffic patterns, the presence of known malicious files, or other suspicious activities.

FortiAnalyzer ' s Role : FortiAnalyzer aggregates logs from various Fortinet devices to provide comprehensive visibility and analysis of network events. It uses these logs to identify potential IoCs and compromised hosts.

Relevant Log Types :

DNS Filter Logs :

DNS requests are a common vector for malware communication. Analyzing DNS filter logs helps in identifying suspicious domain queries, which can indicate malware attempting to communicate with command and control (C2) servers.

Understanding FortiAnalyzer Data Policy and Disk Utilization:

FortiAnalyzer uses data policies to manage log storage, retention, and disk utilization.

The Data Policy section indicates how long logs are kept for analytics and archive purposes.

The Disk Utilization section specifies the allocated disk space and the proportions used for analytics and archive, as well as when alerts should be triggered based on disk usage.

Analyzing the Provided Exhibit:

Keep Logs for Analytics: 60 Days

Keep Logs for Archive: 120 Days

Disk Allocation: 300 GB (with a maximum of 441 GB available)

Analytics: Archive Ratio: 30% : 70%

Alert and Delete When Usage Reaches: 90%

Potential Problems Identification:

Disk Space Allocation: The allocated disk space is 300 GB out of a possible 441 GB, which might not be insufficient if the log volume is high, but it is not the primary concern based on the given data.

Analytics-to-Archive Ratio: The ratio of 30% for analytics and 70% for archive is unconventional. Typically, a higher percentage is allocated for analytics since real-time or recent data analysis is often prioritized. A common configuration might be a 70% analytics and 30% archive ratio. The misconfigured ratio can lead to insufficient space for analytics, causing issues with real-time monitoring and analysis.

Retention Periods: While the retention periods could be seen as lengthy, they are not necessarily indicative of a problem without knowing the specific log volume and compliance requirements. The length of these periods can vary based on organizational needs and legal requirements.

Conclusion:

Based on the analysis, the primary issue observed is the analytics-to-archive ratio being misconfigured. This misconfiguration can significantly impact the effectiveness of the FortiAnalyzer in real-time log analysis, potentially leading to delayed threat detection and response.

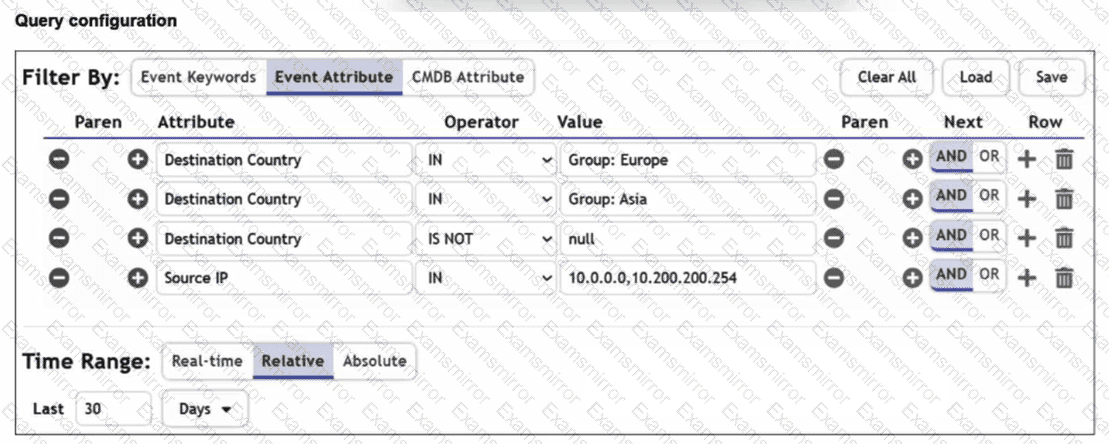

Analyzing the Query Configuration exhibit in the context of FortiSIEM 7.3 search logic reveals several syntax and logical errors that prevent the query from returning results:

Logical Operator Error (E): The user intends to find traffic to Europe OR Asia. In the exhibit, the first row (Group: Europe) is followed by a default AND operator. This forces the query to look for a single flow where the destination is simultaneously in Europe and Asia, which is logically impossible. It must be changed to OR .

Missing Parentheses (C): When combining OR and AND logic in FortiSIEM, parentheses are required to define the order of operations. Without them, the query might evaluate " Asia AND Destination Country IS NOT null AND Source IP IN... " first. To correctly find (Europe OR Asia) that also matches the LAN segment, parentheses must group the first two rows.

Incorrect Operator for IP Range (D): The exhibit uses the IN operator for the value 10.0.0.0, 10.200.200.254. In FortiSIEM, the IN operator is used for a comma-separated list of specific values or CMDB groups. To specify a continuous range of IP addresses (the " LAN segment " ), the BETWEEN operator must be used.

Why other options are incorrect:

IS NOT null (A): In FortiSIEM, " IS NOT null " is a valid operator/value combination used to ensure a specific attribute has been successfully parsed and populated in the event record.

Time Range (B): There is no requirement for a time range to be " Absolute " when using CMDB groups; " Relative " time ranges (like the " Last 30 Days " shown) are commonly used and fully supported for such queries.

SOC Concepts and Frameworks

Understanding the Playbook and its Components:

The exhibit shows a playbook in which an event trigger starts actions upon detecting a malicious file.

The initial tasks in the playbook include CREATE_INCIDENT and GET_EVENTS.

Analysis of Current Tasks:

EVENT_TRIGGER STARTER: This initiates the playbook when a specified event (malicious file detection) occurs.

CREATE_INCIDENT: This task likely creates a new incident in the incident management system for tracking and response.

GET_EVENTS: This task retrieves the event details related to the detected malicious file.

Objective of the Next Task:

The next logical step after creating an incident and retrieving event details is to update the incident with the event data, ensuring all relevant information is attached to the incident record.

This helps SOC analysts by consolidating all pertinent details within the incident record, facilitating efficient tracking and response.

Evaluating the Options:

Option A: Update Asset and Identity is not directly relevant to attaching event data to the incident.

Option B: Attach Data to Incident sounds plausible but typically, updating an incident involves more comprehensive changes including status updates, adding comments, and other data modifications.

Option C: Run Report is irrelevant in this context as the goal is to update the incident with event data.

Option D: Update Incident is the most suitable action for incorporating event data into the existing incident record.

Conclusion:

The next task in the playbook should be to update the incident with the event data to ensure the incident reflects all necessary information for further investigation and response.

Exact Extract: “Fortinet recommends that you test a search query first in FortiSIEM to ensure that there are matching event logs. Then you can implement the same logic and time range with the connector action.”

Exact Extract: “You can define a time range, such as the last 30 days, and the maximum number of records to return in your query.”

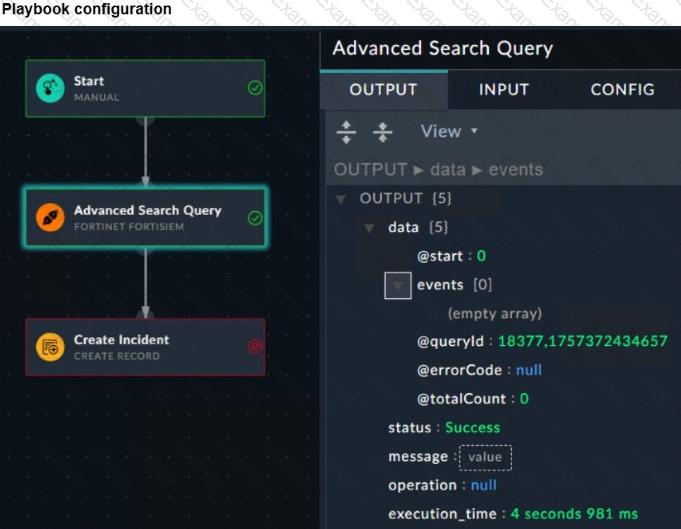

The correct answer is A . The exhibit shows the FortiSIEM connector action completed with status: Success , but the returned events array is empty and totalCount is 0 . That means the connector did not fail; the query simply did not return matching FortiSIEM event logs. The first troubleshooting step is to run the same search directly in FortiSIEM Analytics with the same filters and time range to confirm whether matching logs actually exist.

B is wrong because saving empty output into a variable does not solve the missing results. C is not first because the connector action already shows Success , so connectivity is not the immediate problem. D is useful when mapping fields or understanding schema, but the immediate evidence points to no matching data, not unknown output structure.

Technical Deep Dive: In FortiSOAR threat-hunting playbooks, connector success only proves the API call completed. It does not prove the search logic was correct. Check the FortiSIEM query directly for event type, attribute names, time range, organization scope, and maximum result count. In this case, events: [] and totalCount: 0 are the hard clues. This is FortiSOAR-to-FortiSIEM query troubleshooting; FortiGate NP/CP offloading is irrelevant because no firewall packet-processing path is involved.

Exact Extract: “Take baselines of traffic: Understanding what normal traffic looks like in your environment is critical. By taking accurate baselines and distinguishing them from abnormal activity, you can create more true positives and reduce false positives.”

Exact Extract: “Incident: An incident in FortiSIEM is created when a correlation rule is triggered. These rules analyze incoming events and group them into incidents when a pattern or threat condition is met within a specific time period.”

The correct answer is A . The giveaway is the presence of Avg Recv Interface Discard , Avg Sent Interface Discard , and other average interface values. Those fields indicate the incident is comparing current interface behavior against a learned or stored baseline. A standard correlation rule can trigger incidents, but the more precise conclusion from this output is that the rule is baseline-profile driven. B is wrong because nothing in the output indicates FortiAI or machine-learning generated detection. D is wrong because a lookup table would enrich or match values; it would not explain baseline-average performance metrics.

Technical Deep Dive: This is a performance/anomaly style FortiSIEM incident. The current receive discard count and percentage are being evaluated against average baseline behavior for the same interface. That is materially different from a simple fixed threshold rule. In production, you would validate whether the baseline was trained during normal traffic conditions; otherwise, bad baselines create noisy incidents. FortiGate NP/CP offloading is not the deciding factor here because the detection is based on FortiSIEM telemetry and baseline analytics, not firewall packet acceleration.

Exact Extract: “Hybrid tenancy • Some tenants are distributed, but some are shared.” The guide also states that shared tenancy uses “one FortiSOAR instance” for multiple tenants and that “tenant data is isolated from other tenants through RBAC.”

Exact Extract: “The master cluster is a hybrid multi-tenant deployment because shared tenants are hosted locally on the cluster, in addition to the remote tenants that communicate through an SME.” It also states that the SME uses TCP 5671 and that “each tenant node has a dedicated space with the SME.”

Exact Extract: “For isolated and segmented networks, you can deploy a FortiSOAR agent to receive and execute connector actions… The agent requires outbound network connectivity only to the SME on TCP port 5671.”

The correct answers are B, C, and D . In a hybrid multi-tenant FortiSOAR design, the master cluster can host local shared tenants while also communicating with remote distributed tenant nodes through the secure message exchange. Shared tenants remain isolated through RBAC, so B is correct. The SME provides controlled message routing, and each tenant node has a dedicated space on the SME, so C is correct. Tenant nodes and agents use TCP 5671 to communicate with the SME, so D is correct. A is wrong because the guide says FortiSOAR can use either the embedded SME or a dedicated external SME; a dedicated SME is recommended for production scalability, but it is not mandatory. E is wrong because agents are deployed in isolated or segmented networks, not on the master cluster for HA performance.

Technical Deep Dive: FortiSOAR hybrid tenancy separates control, execution, and data ownership. The master cluster coordinates workflows and can push actions to tenant nodes, but remote execution happens at the tenant side using tenant credentials. The SME acts as the secure broker between master, tenants, and agents. This is critical when segmented networks block inbound access: an agent only needs outbound connectivity to the SME, which avoids opening risky inbound management paths. FortiGate NP/CP offloading is irrelevant here because SME communication is FortiSOAR application messaging, not firewall data-plane acceleration.

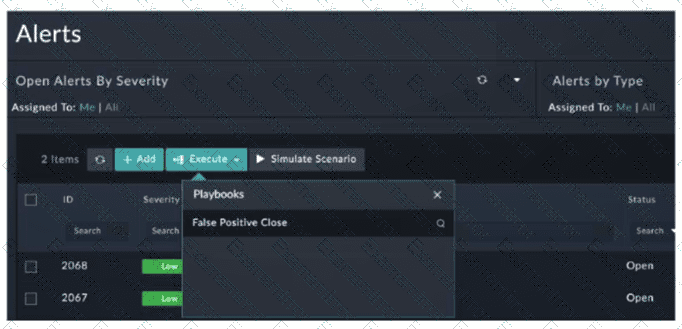

In FortiSOAR 7.6 , manual playbooks appear in the Execute menu of a record only if they meet specific configuration criteria defined in the Manual Trigger step:

Module Scope (C): When creating a playbook with a manual trigger, the administrator must explicitly select which modules (e.g., Alerts, Incidents, Indicators) can execute the playbook. If the Alerts module is not selected in the " Applicable Modules " section of the trigger configuration, the playbook will remain hidden from the Execute menu when an analyst is viewing the Alerts module.

Trigger Execution Requirements (D): Manual triggers can be configured to execute on no records , a single record , or multiple records . If a playbook is configured with the " Requires record input to run " setting but is specifically restricted to a different input type (or if there is a mismatch in the selection logic), it will not appear in the menu unless the correct number of records are selected. Furthermore, if a playbook is designed to run only when no record is selected (global utility), it will not show up in the context-sensitive menu of a specific record.

Why other options are incorrect:

Publishing (A): FortiSOAR playbooks do not require a separate " publishing " step via an Application Editor to become visible. Once they are saved and active (toggled on), they are immediately available for use based on their trigger settings.

Concurrent Execution (B): FortiSOAR allows multiple instances of the same playbook to run simultaneously. An active execution of a playbook does not hide it from the menu for other analysts or subsequent runs.
