The show ethernet-switching table command displays the Layer 2 forwarding database (the bridge or MAC table) that an EX Series switch builds dynamically by inspecting the source MAC address of every frame it receives. Each entry records the learned MAC address, the VLAN it was learned on, the type of entry (dynamic, static, or persistent), and the specific interface through which that address was seen, which is precisely the information needed to confirm whether the switch has learned the host connected to ge-0/0/3. If the host's MAC address is absent from the table, that immediately points to a Layer 1/2 issue — no frames have been received from the host, a cabling or port problem exists, or the interface is administratively down or blocked by spanning tree — rather than a Layer 3 routing or VLAN membership problem. show interfaces terse only reports administrative and link state along with any assigned protocol family addresses, offering no MAC-learning visibility. show vlans lists VLAN definitions and their member interfaces but does not display learned host addresses. show interfaces extensive provides detailed physical-layer counters and error statistics, useful for diagnosing frame loss or interface errors, but it does not expose the switching table. For intra-VLAN reachability troubleshooting, verifying MAC learning is always the first and most direct Layer 2 checkpoint. Reference topics: Junos Enterprise Switching – Layer 2 Switching Fundamentals, Monitoring the Ethernet Switching Table.

RFC 4271 defines the BGP finite state machine as a strict, ordered progression of six states that a session must move through to successfully establish. A newly configured or reset session always begins in Idle, where BGP initializes resources and refuses connections until the ConnectRetry timer fires. From Idle, the router transitions to Connect and attempts to establish the underlying TCP transport session to the configured peer address on port 179. If that TCP attempt does not immediately succeed, the session falls back to the Active state, where the router continues retrying the TCP connection in the background; once the TCP handshake finally completes (from either Connect or Active), the session advances to OpenSent, during which the router transmits its own BGP OPEN message advertising its AS number, hold time, BGP identifier, and capabilities. Upon receiving and validating a compatible OPEN message from the peer, the session moves to OpenConfirm, where both sides exchange KEEPALIVE messages to confirm the parameters negotiated in the OPEN exchange are mutually acceptable. Only after this confirmation does the session reach Established, the final state in which UPDATE messages carrying actual routing information begin to flow between the peers. Any deviation from this Idle → Connect → Active → OpenSent → OpenConfirm → Established ordering, as presented in the other answer choices, does not reflect the standardized BGP state machine. Reference topics: Junos Enterprise Routing – BGP, The BGP Finite State Machine.

The factory-default storm control configuration on EX Series switches operates in a purely rate-limiting mode rather than an interface-shutdown mode. When broadcast, multicast, or unknown-unicast traffic on a port exceeds the configured bandwidth-percentage threshold, the default action is simply to police the offending traffic type and silently drop only the packets that exceed that threshold, while all traffic within the allowed rate continues to be forwarded normally and the interface itself remains administratively and operationally up throughout the event. This explains the observed symptom precisely: during the burst of unknown-unicast frames, the switch dropped the excess volume above the configured limit, producing a brief period of packet loss, but as soon as the burst subsided and traffic fell back under the threshold, storm control simply stopped dropping packets and normal forwarding resumed automatically — no administrative shutdown, recovery timer, or manual intervention was ever involved, because the interface was never taken down in the first place. This default drop-only behavior is distinct from the optional interface-shutdown action, which must be explicitly configured if an administrator wants storm control to disable a port outright on violation (as seen in a related scenario requiring the clear ethernet-switching recovery-timeout command). Storm control by default covers broadcast, multicast, and unknown-unicast traffic types together, not multicast alone, and it has no functional relationship to GRES, which governs Routing Engine redundancy rather than Layer 2 traffic policing. Reference topics: Junos Enterprise Switching – Storm Control, Default Drop Behavior Versus Interface Shutdown Action.

GRE encapsulation adds a fixed 24 bytes of overhead to every packet it carries — 4 bytes for the GRE header itself and 20 bytes for the new outer IPv4 delivery header. When a host transmits a full 1500-byte Ethernet payload into a gr- interface, the resulting encapsulated packet becomes 1524 bytes, which exceeds the physical interface's standard 1500-byte MTU and forces fragmentation or drops if the don't-fragment bit is set. The correct remediation is to reduce the effective MTU seen by end hosts so that encapsulated packets never exceed the physical link's transmission limit. Junos automatically applies this logic to gr- logical interfaces, which default to a 1476-byte protocol MTU (1500 minus 24), but when the underlying physical interface or a manually configured path is involved, administrators must explicitly size the interface MTU to 1476 bytes to prevent post-encapsulation oversize packets. Allowing fragmentation with clear-dont-fragment is a workaround that increases CPU load and can degrade performance rather than solving the root cause, BFD addresses link-failure detection rather than MTU sizing, and ToS copying affects only the type-of-service byte, not packet length. Reference topics: Junos Enterprise Routing – Tunneling, GRE Encapsulation and MTU Considerations; Junos OS Configuring GRE Tunnel Interfaces.

A floating static route is a backup static route that remains present in the configuration but stays inactive in the routing table under normal conditions, only becoming active if the primary, preferred route to the same destination is withdrawn or otherwise becomes unavailable. Junos determines which of several competing routes to the same prefix becomes active strictly by comparing each route's preference value (administrative distance), with the numerically lowest preference always winning; every routing protocol and static routes themselves carry a default preference (5 for standard static routes), and this value can be explicitly overridden per route using the preference statement under the static route's configuration. To create a floating static route, the administrator deliberately configures a preference value higher (that is, numerically worse, less preferred) than the preference of the primary route it is meant to back up — for example, a value higher than the 5 default of an ordinary static route, or higher than a dynamic protocol's preference such as OSPF's 10 — ensuring the floating route only becomes active once the more-preferred primary route disappears from the table entirely. This preference-based mechanism is the essential, defining configuration element of a floating static route. Priority is not a valid Junos static-route statement, next-hop simply defines where matching traffic is forwarded without controlling route selection behavior, and qualified-next-hop is a related but distinct mechanism used to assign a per-next-hop preference within a single multi-next-hop static route statement rather than between the standalone static route and its dynamic counterpart. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Configuring Floating Static Routes with Preference.

The 10.20.0.0/22 aggregate covers the four /24 blocks 10.20.0.0/24 through 10.20.3.0/24, but only the first three of those (10.20.0.0/24, 10.20.1.0/24, and 10.20.2.0/24) are configured and present as active contributing routes; 10.20.3.0/24, the block containing the destination address 10.20.3.100, has no corresponding contributing route in this configuration. Because no more-specific route exists for 10.20.3.100, the longest-match lookup falls through the missing /24 and matches only the broader /22 aggregate itself. By default, when Junos installs an aggregate route, it assigns that route a reject next hop rather than any usable forwarding next hop; this is a deliberate design choice so that traffic destined for gaps within an advertised summary block — gaps where no real, more-specific path actually exists — is not blindly forwarded toward whatever next hop happens to belong to one of the unrelated contributing routes. A reject next hop causes the router to drop the packet and generate and return an ICMP destination-unreachable message to the originating source, explicitly informing it that no path exists, which is functionally and behaviorally distinct from a silent discard next hop that would drop the packet without any such notification. Aggregate routes never adopt or forward through any single contributing route's next hop, which rules out the two forwarding-based answer choices entirely. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Default Reject Next Hop for Aggregate Routes.

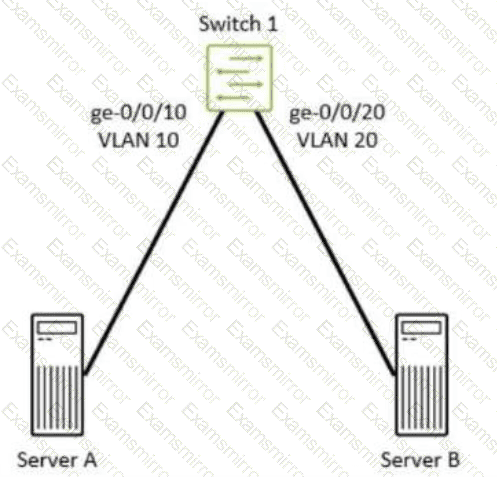

Because Server A resides in VLAN 10 and Server B resides in VLAN 20, traffic between them cannot remain a purely Layer 2 switched flow; it must be routed between the two VLANs, which on Switch 1 means the packet traverses the switch's internal routing engine (via an IRB interface) between the ingress and egress switching stages. Junos processes firewall filters along this path in a strict, layered order that mirrors the packet's actual journey through the device. First, any filter applied at the physical ingress port level (Rx-Port) is evaluated as the frame first arrives on ge-0/0/10. Next, any filter applied to the ingress VLAN (Rx-VLAN, i.e., VLAN 10) is evaluated as the frame is classified into its source broadcast domain. Because the destination subnet requires routing, the packet is then handed to the routing engine, where any input/ingress routed filter (Rx-Router) applied to the receiving IRB interface is evaluated next, followed by any output/egress routed filter (Tx-Router) applied as the now-routed packet is handed from the routing engine back out toward VLAN 20. Finally, the packet passes through any egress VLAN filter (Tx-VLAN, for VLAN 20) and then the egress physical port filter (Tx-Port) on ge-0/0/20 immediately before transmission to Server B. This complete six-stage sequence — Rx-Port, Rx-VLAN, Rx-Router, Tx-Router, Tx-VLAN, Tx-Port — reflects every filter-evaluation checkpoint a routed, inter-VLAN packet passes through on an EX Series Layer 3 switch. Reference topics: Junos Enterprise Switching – Layer 2 Switching and Firewall Filter Processing Order for Routed VLAN Traffic.

Voice VLAN is the Junos feature specifically designed to allow a single access port to simultaneously handle two distinct traffic streams: untagged data traffic from a PC or workstation using the port's normal access VLAN, and separately tagged voice traffic generated by an IP telephone that is typically daisy-chained between the switch port and the connected PC. When voice VLAN is configured on an access interface, the switch instructs the attached IP phone (commonly via LLDP-MED) which VLAN ID to tag its voice traffic with, and the switch is then able to correctly classify and prioritize that tagged voice traffic into its designated voice VLAN while simultaneously continuing to treat any untagged frames arriving on that same physical port as belonging to the port's regular, untagged access VLAN — precisely satisfying the requirement to accept both tagged and untagged traffic together on one access port. Native VLAN, by contrast, is a trunk-port-only concept that designates which VLAN untagged frames on a trunk should be associated with; it has no applicability to an access port and does not enable simultaneous tagged traffic acceptance there. Default VLAN simply refers to the VLAN an interface belongs to absent other configuration and carries no dual-traffic capability. IRB interfaces provide Layer 3 gateway functionality for a VLAN and are unrelated to how tagged versus untagged frames are accepted at Layer 2 on a given physical port. Reference topics: Junos Enterprise Switching – VLANs, Configuring Voice VLAN on Access Interfaces.

IS-IS (Intermediate System to Intermediate System) was designed by ISO as a link-state Interior Gateway Protocol for routing within a single autonomous system, functioning on a hierarchical two-level model conceptually similar to OSPF's areas, which makes the first statement unambiguously correct. Within that hierarchy, Level 1 routers maintain detailed topology information only for their own local area and use a default route toward the nearest Level 2 or Level 1/Level 2 router to reach destinations outside the area; they explicitly do not carry inter-area topology information and therefore cannot route traffic between areas on their own. Routers that participate in both levels simultaneously — Level 1/Level 2 (L1/L2) routers — sit at the area boundary, maintaining a Level 1 database for their local area and a Level 2 database for the backbone, and it is specifically these dual-level routers that stitch inter-area traffic together, forwarding packets from the local area into the Level 2 backbone and vice versa, which confirms the second correct statement. Regarding route preference, Junos assigns distinct default preference (administrative distance) values of 15 for IS-IS Level 1 routes and 18 for IS-IS Level 2 routes — neither of which is 20 — so the preference-value statement is factually incorrect and included as a distractor testing precise knowledge of Junos default protocol preferences. Reference topics: Junos Enterprise Routing – IS-IS, Level 1, Level 2, and L1/L2 Router Roles; Default Route Preference Values.
