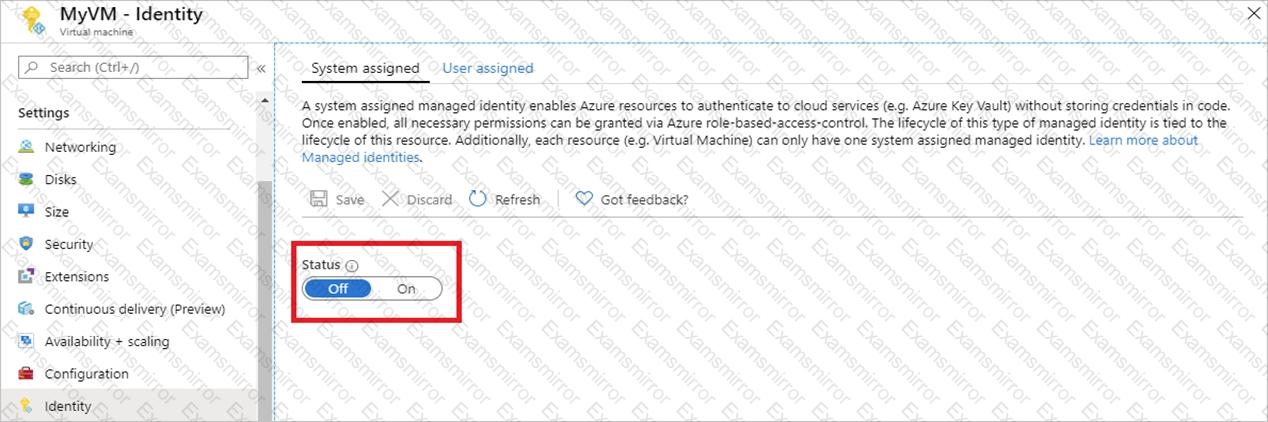

You can usea system-assigned managed identity for a Windows virtual machine (VM) to access Azure Key Vault.

Sign in to Azure portal

Locate virtual machine VM1.

Select Identity

Enable the system-assigned identity for VM1 by setting the Status to On.

Note:Enabling a system-assigned managed identity is a one-click experience. You can either enable it during the creation of a VM or in the properties of an existing VM.

Step 1: Access Azure DevOps

Open your browser and navigate to https://aex.dev.azure.com .

You will be prompted to sign in. Enter the following credentials:

Username: UserUser1-48901628@cxamUsers.com

Password: aFpJ2j-6M!

Click Next or Sign in to proceed.

Note: If you see any Microsoft security challenge (like phone or email verification), follow the instructions to complete it.

Step 2: Sign Up for Azure DevOps

After signing in, you’ll see a prompt to sign up for Azure DevOps.

Use the default settings provided by Azure DevOps for the sign-up process (region, default name, etc.).

Click Continue or Start free with Azure DevOps.

An Azure DevOps Organization is a container for your projects and resources. Default settings are usually fine for new organizations.

Step 3: Create the Organization

Enter a name for your organization. Azure DevOps will suggest a default name (like yourname or org-name), but you can change it if you prefer.

Verify the region is correct.

Click Continue to create the organization.

Your Azure DevOps organization is now created. It’s the top-level container for all your projects.

Step 4: Create a Private Project Named Project1

In your Azure DevOps portal, find the " New Project " button and click it.

Enter the following details:

Project Name: Project1

Description: (optional)

Visibility: Private

Click Create.

A private project means that only users you add can see or access it. This is important for security and privacy.

Step 5: Enforce Maximum File Size for Repositories

By default, Azure DevOps allows files up to 100 MB to be pushed. To ensure the maximum file size for repositories in Project1 is 2 MB, you can enforce this using a pipeline validation.

Azure DevOps does not provide a direct setting for file size limits. However, you can create a pipeline to validate file size on pull requests and block changes if a file exceeds 2 MB.

Here’s how to do it:

Option 1: Enforce with a pipeline validation for pull requests

In your Project1, create a new pipeline.

Use the following YAML for the pipeline:

yaml

Copy

trigger: none

pr:

branches:

include:

- " * "

jobs:

- job: CheckFileSize

pool:

vmImage: ' ubuntu-latest '

steps:

- script: |

echo " Checking file sizes in the PR... "

git fetch origin +refs/pull/*/merge:refs/remotes/origin/pr/*

large_files=$(git diff --cached --name-only | xargs -I{} du -b {} | awk ' $1 > 2097152 {print $2} ' )

if [ -n " $large_files " ]; then

echo " Error: The following files exceed 2 MB: "

echo " $large_files "

exit 1

fi

displayName: ' Check file sizes in PR '

This pipeline will:

Run on pull requests only.

Check the size of all files in the pull request.

If any file is larger than 2 MB (2,097,152 bytes), it will fail the pipeline and block the PR.

Option 2: Local Git configuration (for each developer)

On each developer’s machine, run this command in their local repository:

bash

Copy

git config --local core.bigFileThreshold 2M

This limits the file threshold for checkout, but does not prevent large files from being pushed. Using the pipeline validation (Option 1) is more secure for team environments.

1. Open Microsoft Azure Portal

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

Set up staging environments in Azure App Service

1. Open Microsoft Azure Portal

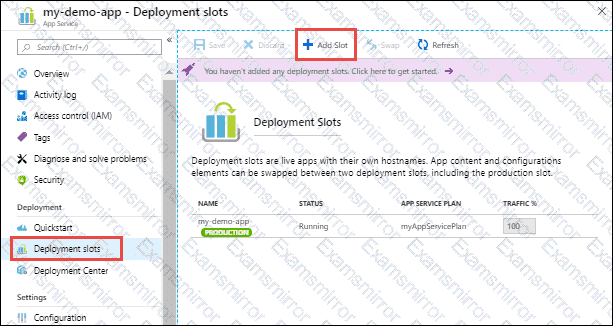

2. Log into your Azure account, select your app ' s resource page, in the left pane, selectDeployment slots > Add Slot.

3. In the Add a slot dialog box, give the slot a name, and select whether to clone an app configuration from another deployment slot. Select Add to continue.

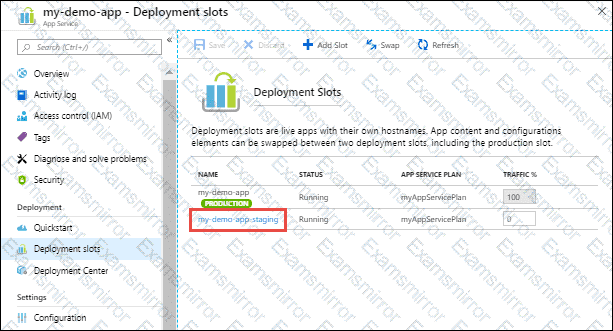

4. After the slot is added, select Close to close the dialogbox. The new slot is now shown on the Deployment slots page. By default, Traffic % is set to 0 for the new slot, with all customer traffic routed to the production slot.

5. Select the new deployment slot to open that slot ' s resource page.

6. Change TRAFFIC % to 10

To ensure that the webhook athttps://contoso.com/statushookis called every time the repository namedaz40038443478acr1receives a new version of an image nameddotnetapp, you can follow these steps to configure a webhook in Azure Container Registry:

Navigate to the Azure Container Registry:

Go to the Azure Portal.

Find and select yourAzure Container Registry instanceaz40038443478acr1.

Create a New Webhook:

UnderServices, selectWebhooks.

Click on+ Addto create a new webhook.

Fill in the form with the following information:

Webhook name: Enter a unique name for your webhook.

ServiceURI: Enterhttps://contoso.com/statushook.

Custom headers: (Optional) Add any headers you want to pass along with the POST request.

Trigger actions: SelectPushto trigger the webhook on image push events.

Scope: Specify the scope asaz40038443478acr1:dotnetappto target the specific image.

Status: Set toEnabled.

Save the Webhook Configuration:

Review the information and clickCreateto save the webhook.

Once configured, the webhook will send a POST request tohttps://contoso.com/statushookwhenever a new version of thedotnetappimage is pushed to theaz40038443478acr1repository in your Azure Container Registry1.

This setup will automate the notification process, ensuring that the specified webhook is called with each new image version, thus fulfilling the task requirements.

To configure your Azure Functionaz400-38443478-functto automatically update whenever new code is committed to the main branch of the specified GitHub repository, you can use GitHub Actions for continuous deployment. Here’s how to set it up:

Create a GitHub Actions Workflow:

In your GitHub repository, navigate to the.github/workflows/directory.

Create a new file for your workflow (e.g.,azure-function-cd.yml).

Define the Workflow:

In the workflow file, define the steps for the build and deployment process.

Use theAzure/functions-actionto deploy to your Azure Function App.

Set up triggers for themainbranch to initiate the workflow on every commit.

Generate Deployment Credentials:

In the Azure Portal, navigate to your Function Appaz400-38443478-funct.

Download the publish profile from theOverviewsection by clicking onGet publish profile.

Store the Publish Profile as a GitHub Secret:

In your GitHub repository, go toSettings > Secrets and variables > Actions.

Create a new secret (e.g.,AZURE_FUNCTIONAPP_PUBLISH_PROFILE) and paste the content of the publish profile.

Configure the Workflow to Use the Secret:

In the workflow file, reference the secret to authenticate the deployment to Azure.

Here’s a sample GitHub Actions workflow snippet:

name: Deploy Azure Function

on:

push:

branches:

- main

jobs:

build-and-deploy:

runs-on: ubuntu-latest

steps:

- uses: actions/checkout@v2

- name: Set up Python version

uses: actions/setup-python@v2

with:

python-version: ' 3.x '

- name: Install dependencies

run: |

pip install -r requirements.txt

- name: Deploy to Azure Functions

uses: Azure/functions-action@v1

with:

app-name: az400-38443478-funct

publish-profile: ${{ secrets.AZURE_FUNCTIONAPP_PUBLISH_PROFILE }}

package: .

Replace theapp-namewith the name of your Azure Function App and ensure the Python version and dependencies match your application’s requirements.

By following these steps, yourAzure Function will automatically update whenever new code is pushed to the main branch of the GitHub repository. This setup minimizes manual effort and ensures that your function app is always running the latest code.

To ensure that your Azure Web App namedaz400-38443478-mainsupports rolling upgrades and only 10 percent of users connect to the updated version of the app, you can use deployment slots with the followingsteps:

Create a Deployment Slot:

Navigate to the Azure Portal.

Go to your Web Appaz400-38443478-main.

SelectDeployment slotsin the menu.

Click onAdd Slot.

Name the slot (e.g.,staging) and if needed, clone settings from the production slot.

Configure the Traffic Percentage:

In the Deployment Slots menu, you will see a column forTraffic %.

Set the traffic percentage to10%for thestagingslot1.

This will route only 10% of the traffic to the updated version of the app in thestagingslot.

Deploy the Updated App to the Staging Slot:

Deploy yourupdated application to thestagingslot.

Test the application in thestagingslot to ensure it’s working as expected.

Complete the Rolling Upgrade:

Once you’re satisfied with the performance and stability of the app in thestagingslot, you can graduallyincrease the percentage of traffic until you’re ready to swap with the production slot.

To swap slots, go to theDeployment slotsmenu and click onSwapwith the production slot.

By using deployment slots, you can achieve rolling upgrades with minimal administrative effort, as it allows you to test the new version on a subset of users before fully releasing it. Remember to adjust the traffic percentage and monitor the application’s performance throughout the process.
