Task 6: Create a Service Connection for Resource Group Deployment using Managed Identity and Workload Identity Federation

Step 1: Understand the Requirements

You want to deploy resources in the RGHod489Q1628 resource group.

The service connection must:

Use the ManagedJd1 managed identity.

Use workload identity federation (OIDC-based authentication for enhanced security).

Step 2: Verify Prerequisites

You need to ensure:

The ManagedJd1 managed identity exists in your Azure subscription.

Your Azure DevOps project (Project1) is linked to an Azure Active Directory tenant (for OIDC support).

You have the Owner or User Access Administrator role on the RGHod489Q1628 resource group.

Step 3: Assign Role to Managed Identity

Go to the Azure Portal.

In the search bar, type Managed Identities and select Managed Identities.

Locate and click on the ManagedJd1 identity.

In the left menu, click Azure role assignments.

Click + Add role assignment.

Set the following:

Scope: Resource Group

Subscription: Your subscription

Resource Group: RGHod489Q1628

Role: Contributor (or appropriate role)

Click Save.

This step ensures ManagedJd1 has permissions to deploy resources to RGHod489Q1628.

Step 4: Create a Federated Credential for Workload Identity Federation

In the Azure Portal, navigate to the ManagedJd1 managed identity.

In the left menu, click Workload identity federation (preview).

Click + Add a federated credential.

Configure as follows:

Federated credential name: devops-oidc

Issuer: https://vstoken.actions.githubusercontent.com (or use the default https://pipelines.actions.githubusercontent.com for Azure DevOps)

Subject identifier: Use the following format for Azure DevOps:

css

Copy

system:azuredevops:{organizationName}:{projectName}

For example:

css

Copy

system:azuredevops:{YourOrganizationName}:{Project1}

Audience: api://AzureADTokenExchange

Click Add.

This federated credential establishes trust between your Azure DevOps project and the managed identity.

Step 5: Create a Service Connection in Azure DevOps

Go to your Azure DevOps project (Project1) in the browser.

In the left menu, click Project settings.

Under Pipelines, click Service connections.

Click New service connection.

Choose Azure Resource Manager.

Choose the authentication method:

Select Workload identity federation.

Configure the service connection:

Scope level: Resource Group.

Resource Group: RGHod489Q1628.

Subscription: Your subscription.

Authentication method: Managed Identity with workload identity federation.

Managed Identity: Enter the client ID or select ManagedJd1.

Service connection name: e.g., Project1-RGHod489Q1628-Conn.

Grant access permission to all pipelines (recommended).

Click Save.

Step 6: Validate the Service Connection

After creation, click on the new service connection to Verify it.

Ensure the connection test is successful.

You can now use this service connection in your pipelines for deploying resources to RGHod489Q1628.

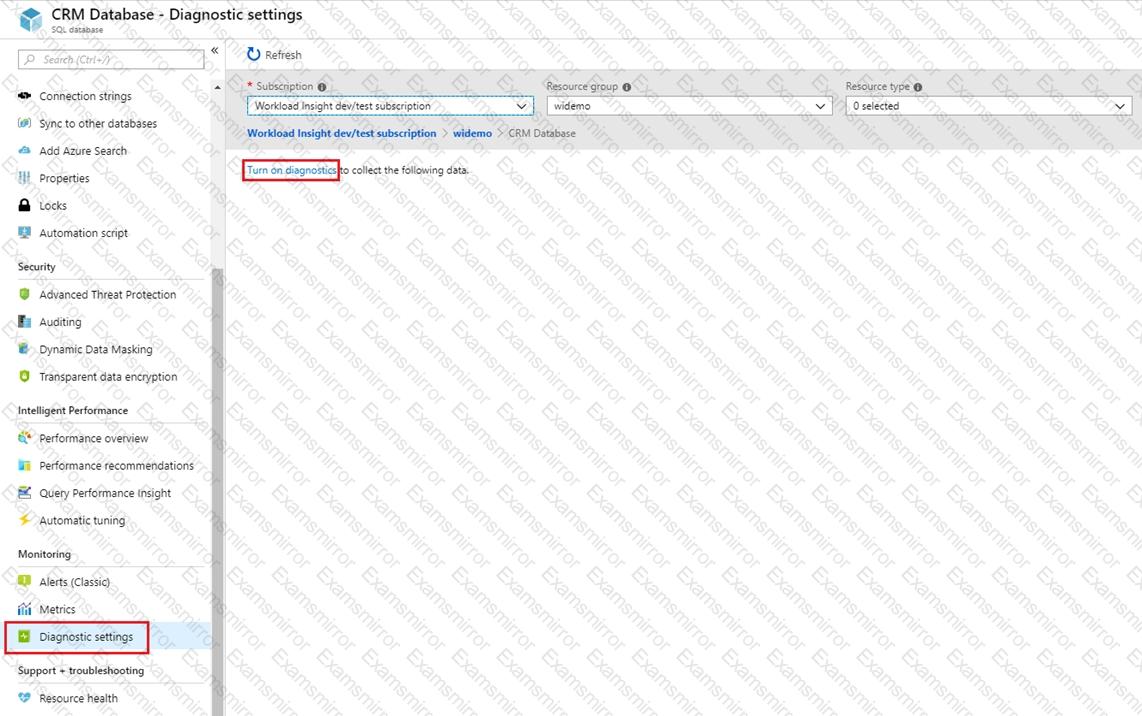

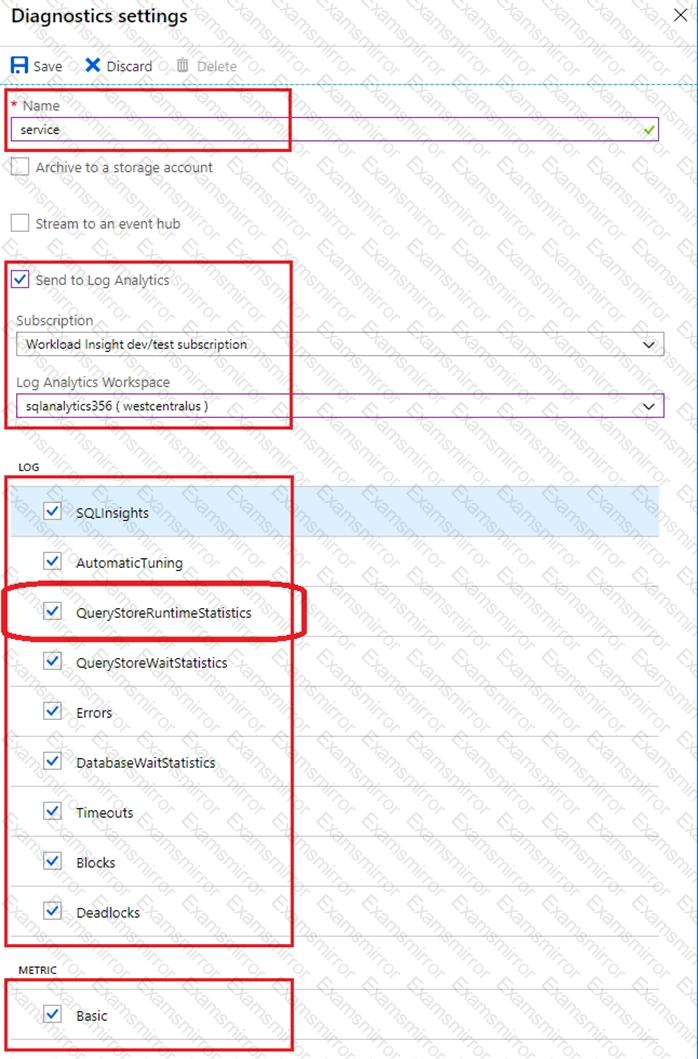

To enable streaming of diagnostic telemetry for a single or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3. Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

4. Select Add diagnostic setting to configure parallel streaming of diagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: QueryStoreRuntimeStatistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. Select Save.

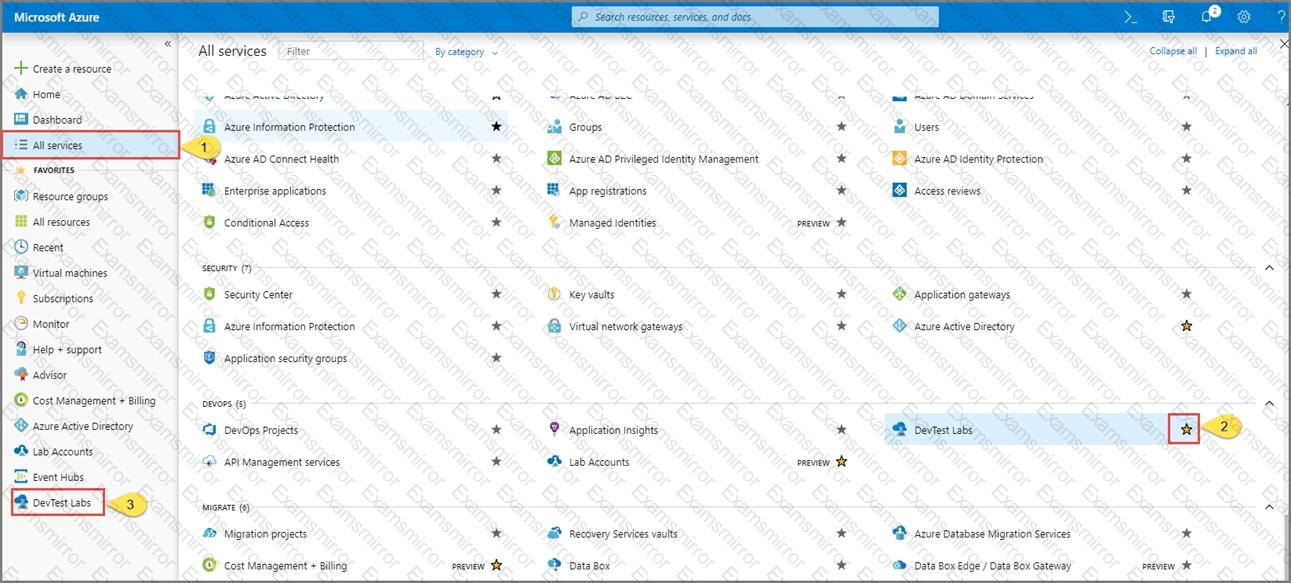

1. Open Microsoft Azure Portal

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating the virtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

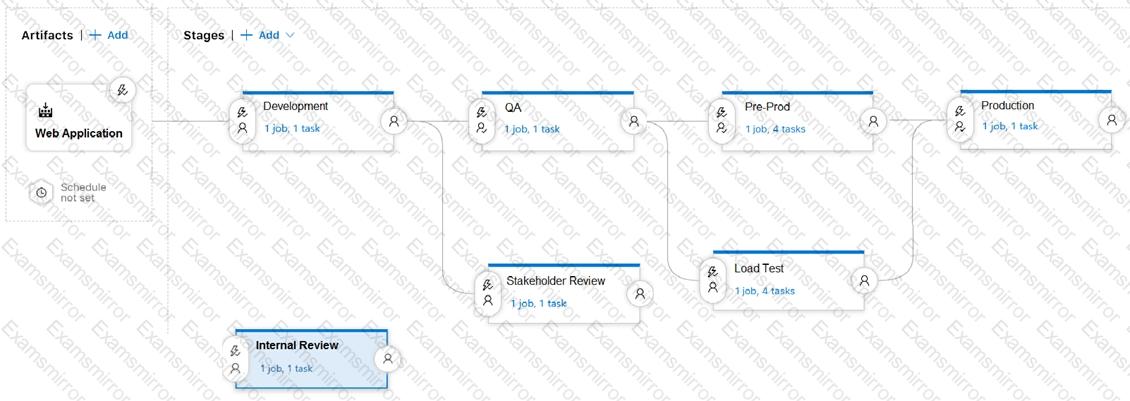

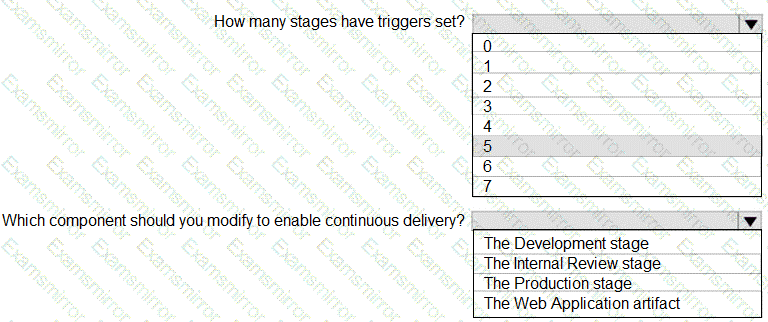

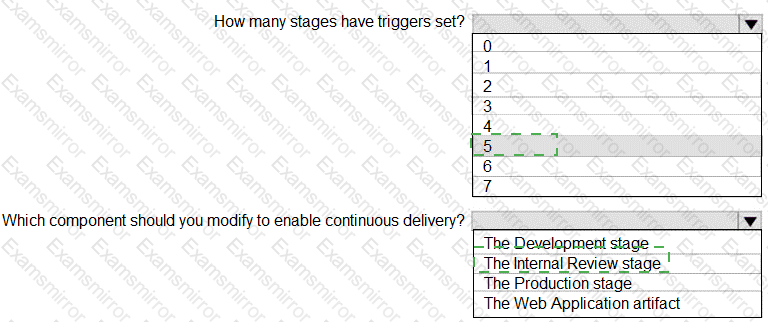

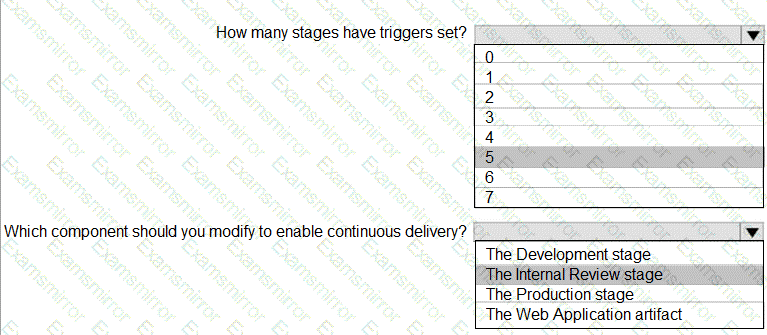

Box 1: 5

There are five stages: Development, QA, Pre-production, Load Test and Production. They all have triggers.

Box 2: The Internal Review stage

To enable streaming of diagnostic telemetry for asingle or a pooled database, follow these steps:

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3. Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

4. Select Add diagnostic setting to configure parallel streaming of diagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: Query Store Runtime Statistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. Select Save.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources,type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create the storage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

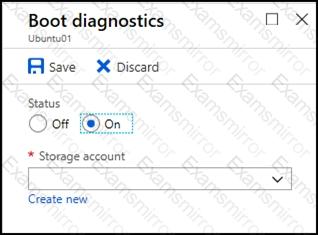

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

1.Sign in to the Azure portal, and then select the virtual machine VM1.

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

4. Save the change.

You must restart the virtual machine for the change to take effect.

Step 1: Create an instance of Azure Application Insights

1. Open Microsoft Azure Portal

2. Log into your Azure account, Select Create a resource > Developer tools > Application Insights.

3. Enter the following settings, and then select Review + create.

Name: az400-9940427-main

Step 2: Configure App Insights SDK

4. Open your ASP.NET Core Web App project in Visual Studio > Right-click on the AppName in theSolution Explorer > Select Add > Application Insights Telemetry.

5. Click the Get Started button

6. Select your account and subscription > Select the Existing resource you created in the Azure portal > Click Register.

To create an instance of Azure Application Insights namedaz400-38443478-mainand configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to theAzure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then selectCreate1.

Create an Azure Application Insights Instance:

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name isaz400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web Appaz400-38443478-main.

Under Monitoring, selectApplication Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

Step 1: Sign Up for Azure DevOps

Navigate to Azure DevOps.

Click on Start Free.

Enter the credentials:

Email: UserUsefl-42147509@ExamUsers.com

Password: eWrSalD2!

Follow the prompts to complete the sign-up process using the default settings.

Step 2: Create an Azure DevOps Organization

Once signed in, you will be prompted to create a new organization.

Enter a name for your organization and select your region.

Click on Continue to create the organization.

Step 3: Create a Private Project

In your new organization, click on New Project.

Name the project Project1.

Set the visibility to Private.

Click on Create.

Step 4: Add an External User as a Stakeholder

Go to the Organization Settings.

Under General, select Users.

Click on Add users.

Enter the email address: Usfrr2-42147S09@ExamUsers.com.

Set the access level to Stakeholder.

Add the user to the most restrictive group, which is typically the Readers group.

Click on Add to complete the process.

Step 5: Verify the User Addition

Ensure that the external user has been added successfully by checking the Users list.

Confirm that the user has the Stakeholder access level and is part of the Readers group.

By following thesesteps, you should be able to complete the task successfully. If you encounter any issues, feel free to ask for further assistance!
