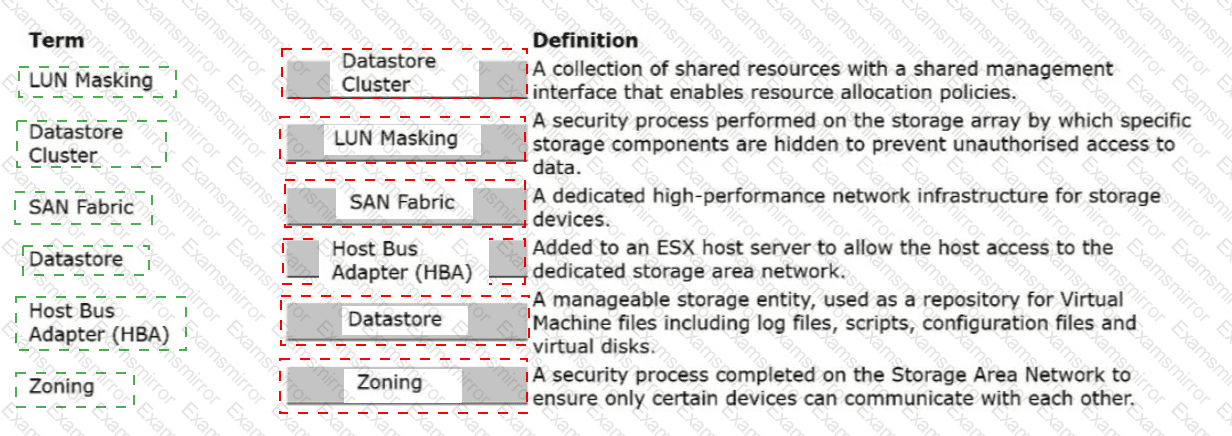

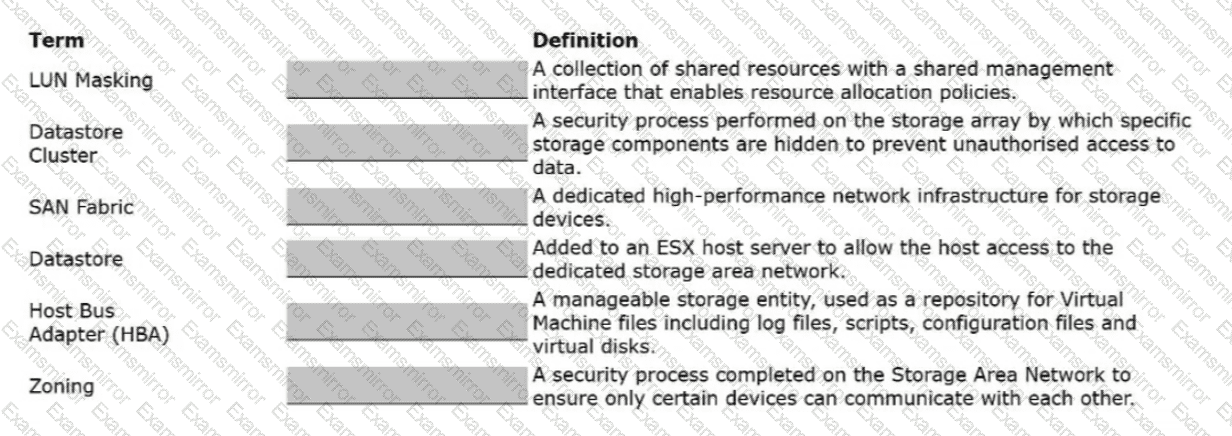

LUN Masking = A security process performed on the storage array by which specific storage components are hidden to prevent unauthorized access to data;

Datastore Cluster = A collection of shared resources with a shared management interface that enables resource allocation policies;

SAN Fabric = A dedicated high-performance network infrastructure for storage devices;

Datastore = A manageable storage entity used as a repository for Virtual Machine files including log files, scripts, configuration files and virtual disks;

Host Bus Adapter (HBA) = Added to an ESX host server to allow the host access to the dedicated storage area network;

Zoning = A security process completed on the Storage Area Network to ensure only certain devices can communicate with each other.

These definitions describe the core components of a Fibre Channel SAN design in a VCF Workload Domain. LUN masking is performed on the storage array and controls which hosts can see specific LUNs, preventing unauthorized access to storage. A datastore cluster is a collection of datastores managed as a shared resource pool, allowing placement and balancing policies through Storage DRS. A SAN fabric is the dedicated high-performance network that interconnects ESX hosts, Fibre Channel switches, and storage arrays. A datastore is the vSphere logical storage container where VM configuration files, virtual disks, logs, and related files reside. A Host Bus Adapter is the physical or virtual adapter in the ESX host that connects the host to the Fibre Channel storage area network. Zoning is performed on the Fibre Channel fabric and controls which initiators and targets can communicate. Together, zoning and LUN masking provide layered access control, while datastores and datastore clusters provide the vSphere consumption model. Reference topics: Fibre Channel SAN Concepts, SAN Fabric, Zoning, LUN Masking, VMFS Datastores, Datastore Clusters.

The device has already been claimed by vSAN, so it is now part of the vSAN ESA storage pool. It must be removed from vSAN through a controlled device-removal workflow before it can be repurposed for memory tiering. The correct method is to remove the device from vSAN using Full Data Migration. This evacuation mode migrates data from the device to other eligible devices or hosts so that objects remain protected and compliant where possible. After the device is safely removed from the vSAN storage pool, it can be configured for memory tiering. Physically removing or hot-removing the device is unsafe because vSAN may still have components on it. Booting without the device is also not a supported configuration workflow. Changing disk claiming behavior and rebooting does not safely remove existing components from the already claimed device. vSAN ESA uses a storage pool model, so claimed NVMe devices contribute capacity and performance; a device intended for another purpose must be explicitly evacuated and removed before reuse. Reference topics: vSAN ESA Storage Pools, Device Claiming, Remove Storage Pool Device, Full Data Migration, Memory Tiering.

NFS v3 is the best recommendation because the scenario provides only Ethernet-based host connectivity and no budget for additional hardware. Fibre Channel would require appropriate FC HBAs, SAN zoning, and array presentation to all hosts. The provided hosts only have Ethernet NICs and local boot/storage devices, so they are not prepared for FC without additional hardware. VMware Cloud Foundation supports NFS as principal storage for VI workload domains, but the supported principal NFS protocol version is NFS v3. NFS v4.1 is supported as supplemental storage, not as principal storage for this use case. The documentation also states that when NFS is used as principal storage with vSphere Lifecycle Manager images, only two hosts are required, matching this two-host scenario. Fibre Channel over Ethernet is not the appropriate supported principal storage option in this VCF storage model. Therefore, NFS v3 uses the existing network capability, avoids new hardware spend, and aligns with the supported VCF principal storage model. Reference topics: Principal Storage, NFS Storage Model, VI Workload Domain Storage, Fibre Channel Prerequisites.

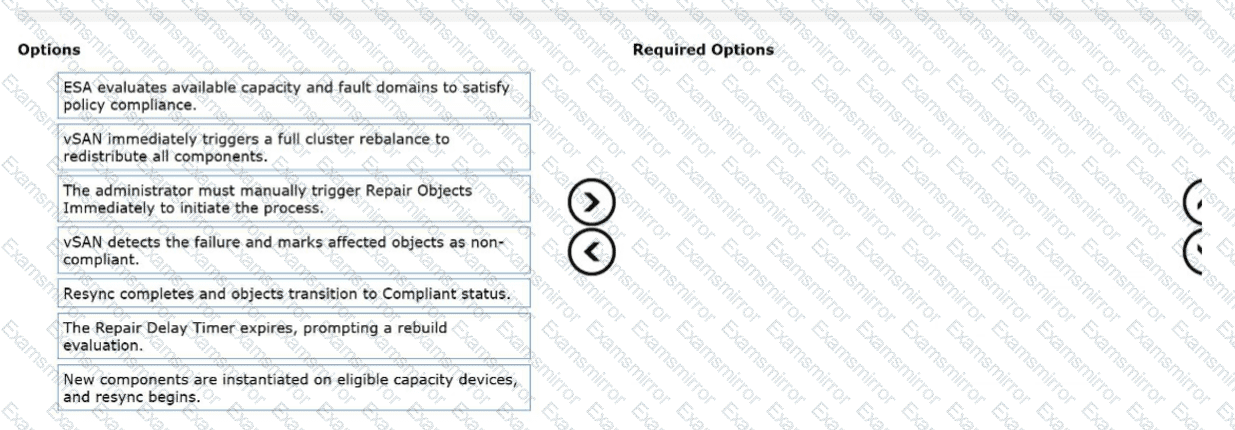

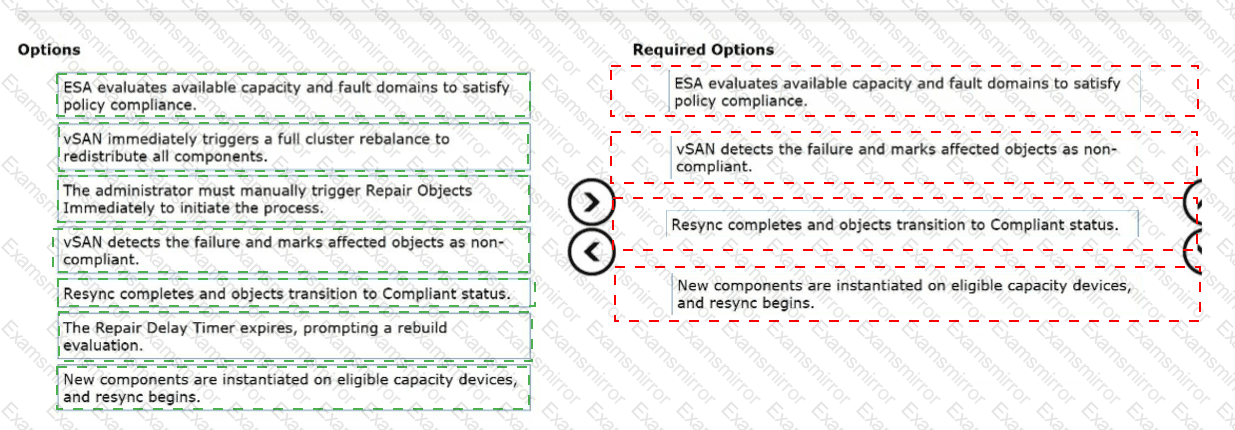

ESA evaluates available capacity and fault domains to satisfy policy compliance.

vSAN detects the failure and marks affected objects as non-compliant.

Resync completes and objects transition to Compliant status.

New components are instantiated on eligible capacity devices, and resync begins.

A failed NVMe device in a vSAN ESA cluster is handled as a storage pool device failure. vSAN first detects the failure and marks affected objects as non-compliant when their assigned storage policy requirements are no longer satisfied. ESA then evaluates available capacity and fault domains to determine whether replacement components can be placed in a way that restores compliance. If sufficient placement resources exist, vSAN creates new components on eligible capacity devices and begins resynchronization. After the resync completes, the affected objects transition back to Compliant status. The Repair Delay Timer is primarily associated with absent components, such as a host or device that may return, and is not the required step for a permanent NVMe failure. The administrator does not have to manually trigger Repair Objects Immediately for the normal automatic repair process. A full cluster rebalance is separate from repair and is not performed before rebuilding missing or degraded components. Reference topics: vSAN ESA Storage Pool Device Failure, Object Compliance, Automatic Reprotection, Resynchronization.

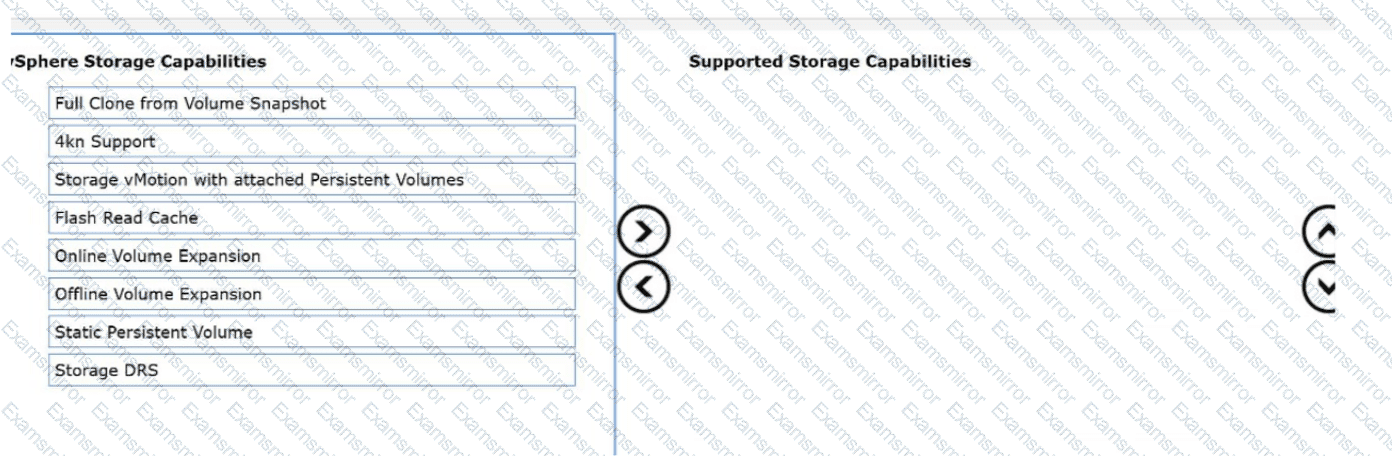

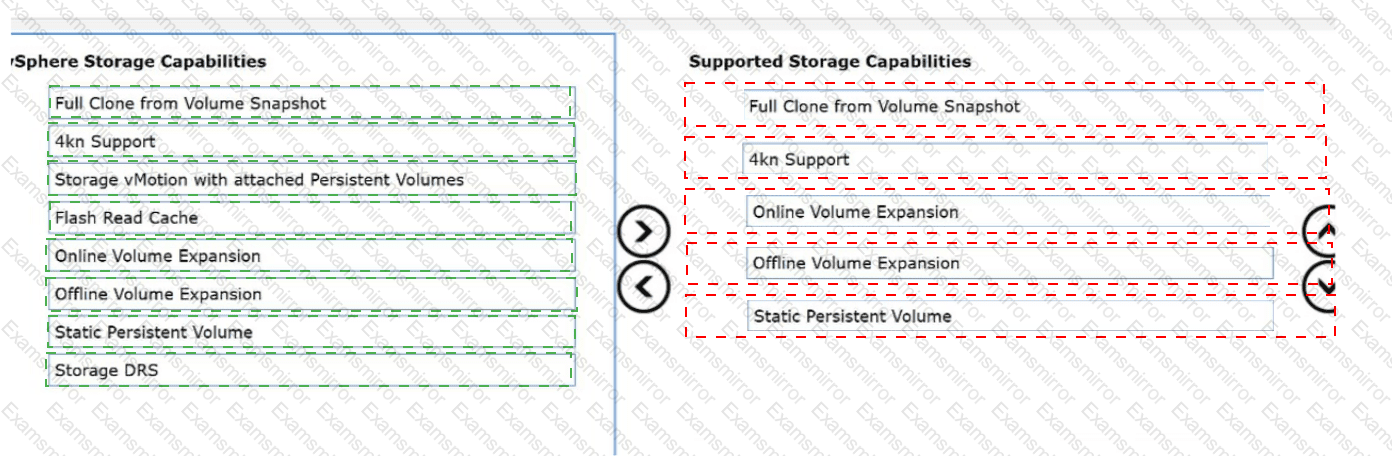

Full Clone from Volume Snapshot

4kn Support

Online Volume Expansion

Offline Volume Expansion

Static Persistent Volume

VMware Kubernetes Service persistent volumes use vSphere storage integrations such as CNS and pvCSI to provide Kubernetes storage services backed by vSphere datastores and storage policies. The supported persistent volume capabilities include Static Persistent Volume, which allows pre-existing storage to be consumed by Kubernetes workloads; Offline Volume Expansion and Online Volume Expansion, which allow persistent volumes to be resized depending on workload and filesystem state; Full Clone from Volume Snapshot, which enables a new volume to be created from an existing snapshot; and 4kn Support, which supports modern 4K native storage devices where the underlying stack supports them. Storage vMotion with attached Persistent Volumes is not supported because moving an attached Kubernetes persistent volume while it is in active use can break attachment and consistency assumptions. Storage DRS is also not a supported persistent volume capability in this VKS context. Flash Read Cache is not part of the supported VKS persistent-volume capability set. Reference topics: VMware Kubernetes Service Storage, CNS, pvCSI, Persistent Volume Capabilities, Volume Expansion, Volume Snapshot Clone.

Seven hosts per availability zone is required for this design. In a vSAN ESA stretched cluster, data components are distributed across two data sites, while a witness site provides quorum. The first requirement is a secondary level of resilience of FTT=2 using RAID-6 erasure coding. RAID-6 requires enough fault domains to place data and parity components while tolerating two failures. The second requirement is more restrictive: vSAN must be able to regain its prescribed level of resilience after a sustained host outage. This means the site must have enough remaining placement capacity to rebuild components and return objects to policy compliance after a host is lost. A six-host site can satisfy the RAID-6 placement minimum, but it does not provide the additional host needed to rebuild cleanly after a sustained host outage. Therefore, the design requires seven hosts in each availability zone. This produces fourteen data hosts across the stretched cluster, plus the witness. Reference topics: vSAN ESA Stretched Cluster Design, Secondary Level of Resilience, RAID-6 Erasure Coding, Availability Zone Host Count.

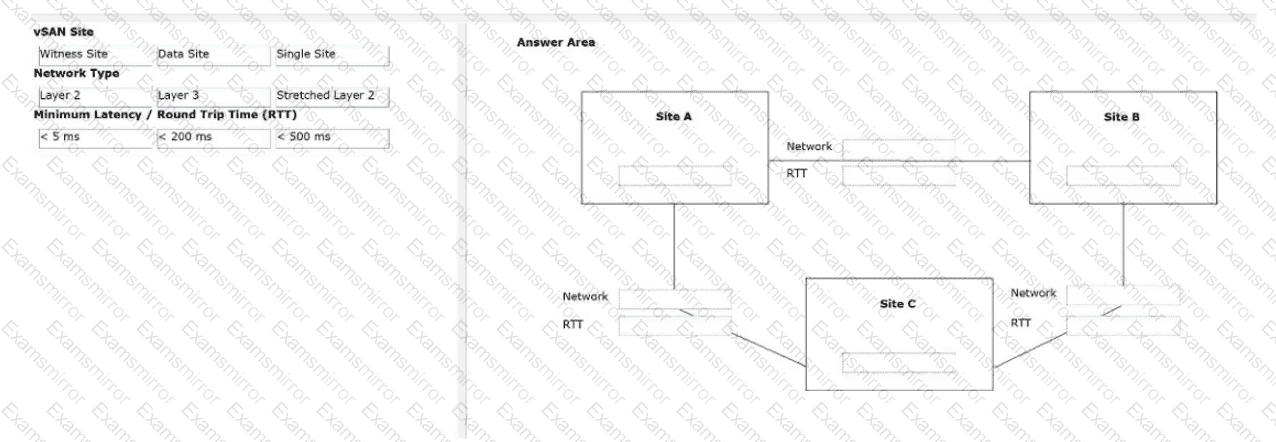

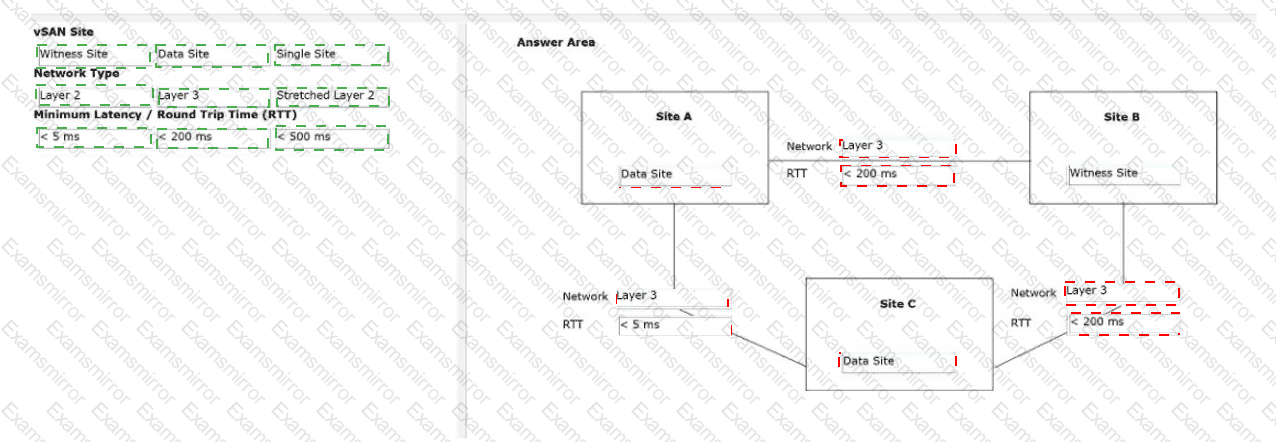

Site A = Data Site; Site B = Witness Site; Site C = Data Site; Site A ↔ Site C = Layer 3, RTT < 5 ms; Site A ↔ Site B = Layer 3, RTT < 200 ms; Site B ↔ Site C = Layer 3, RTT < 200 ms

Site A and Site C should be the data sites because Site A hosts production services and Site C has been commissioned to replace the capacity-constrained Site B. Site B should be used as the witness site because it has no space for additional physical hosts, and a vSAN witness appliance does not run workload VMs. A vSAN Stretched Cluster requires two availability zones for data nodes and a third site for the witness appliance. The data-site-to-data-site connection carries synchronous vSAN data traffic and must meet less than 5 ms RTT. The witness site carries metadata traffic only, so the data-site-to-witness links support higher latency, with less than 200 ms RTT for up to 10 hosts per site. Because the requirement specifically calls out minimizing disruption from STP, Layer 3 is the preferred network type between sites. VMware states that Layer 3 helps avoid STP redirecting traffic across undesirable links, such as constrained witness links. Reference topics: vSAN Stretched Cluster Network Design, Data Site and Witness Site Placement, Layer 3 Recommendation, RTT Requirements.

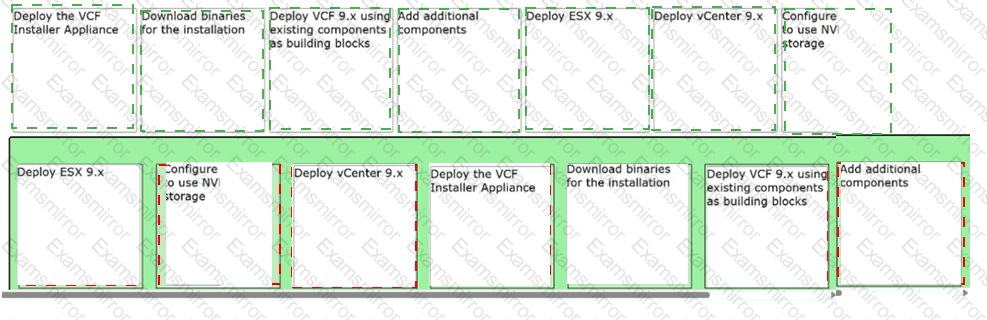

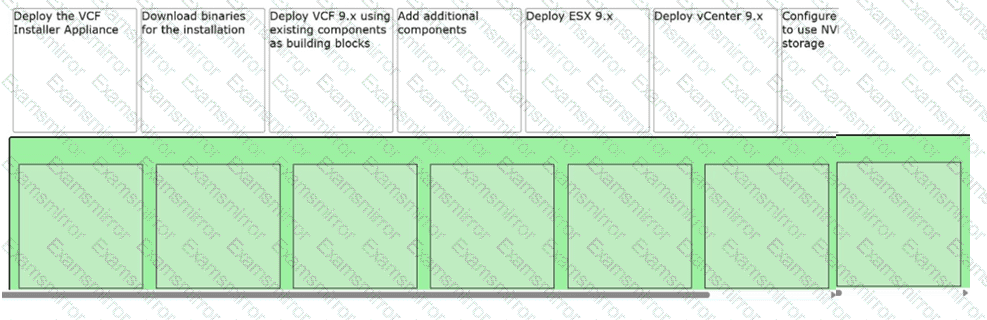

Deploy ESX 9.x

Configure to use NVMe storage

Deploy vCenter 9.x

Deploy the VCF Installer Appliance

Download binaries for the installation

Deploy VCF 9.x using existing components as building blocks

Add additional components

The sequence begins with deploying ESX 9.x on the blade hosts because the hosts are the physical foundation for the future management domain. Since there is no local storage beyond the operating system and the external array supports NVMe/TCP only, the hosts must then be configured to use NVMe storage before vCenter is deployed. This provides the required shared datastore for the vCenter deployment and for later VCF management component placement. After the NVMe storage is accessible, vCenter 9.x is deployed to manage the ESX hosts and form the existing vSphere building block. The convergence process then moves into the VCF workflow: deploy the VCF Installer Appliance, download the required binaries to the installer appliance, and deploy VCF 9.x by using the existing vCenter and ESX hosts as starting building blocks. Because Aria Operations is not currently deployed, VCF Installer deploys the required missing components during the converge process, and remaining additional components are added after the core platform deployment is complete. Reference topics: Converging Existing Virtual Infrastructure, VCF Installer, Existing Components as Building Blocks, NVMe Storage Preparation.

vSAN ESA Storage Clusters are the optimal choice because the workload profile is capacity-heavy and benefits from disaggregated storage. The requirement for 2.5 PB of application data, archival workloads, gateways, and development/test applications indicates a need to scale storage capacity independently from compute resources. VMware Cloud Foundation describes a vSAN storage cluster as a disaggregated storage solution based on vSAN ESA. It provides storage resources but not compute resources, and its datastore can be mounted by vSAN compute clusters or vSAN HCI clusters. This model is designed for storage-dense environments where capacity and performance can be expanded without adding unnecessary compute. A standard vSAN ESA HCI cluster is excellent for high-performance workloads, but it scales compute and storage together. vSAN OSA all-flash and hybrid use the older disk-group architecture and are less suitable for this large-capacity, storage-centric design. Therefore, the principal storage recommendation should be vSAN ESA Storage Clusters to meet scalability, performance, and capacity growth requirements. Reference topics: vSAN Storage Cluster, Disaggregated Storage, vSAN ESA, Storage Models.

The Live! vSphere Heavy Hitter VM dashboard is the correct place to identify which virtual machines are driving storage IOPS and disk throughput problems. In VCF Operations, heavy hitter dashboards are designed to isolate the consumers creating the highest demand on shared infrastructure resources. For storage troubleshooting, this dashboard identifies VMs producing significant I/O load, including IOPS and throughput. This is especially useful when a Fibre Channel datastore is reporting performance alerts because the datastore itself may show contention, but the root cause is often one or more high-demand VMs consuming disproportionate backend storage resources. The vSAN Health dashboard is not correct because the affected datastore is Fibre Channel, not vSAN. The vSphere Storage Inventory dashboard is useful for topology and inventory visibility, but it is not the best view for identifying the VM-level consumers causing IOPS and throughput pressure. The Storage Operations page is broader and less targeted than the Live heavy hitter view. Reference topics: VCF Operations Performance Dashboards, Storage Heavy Hitters, VM IOPS and Throughput Troubleshooting.
