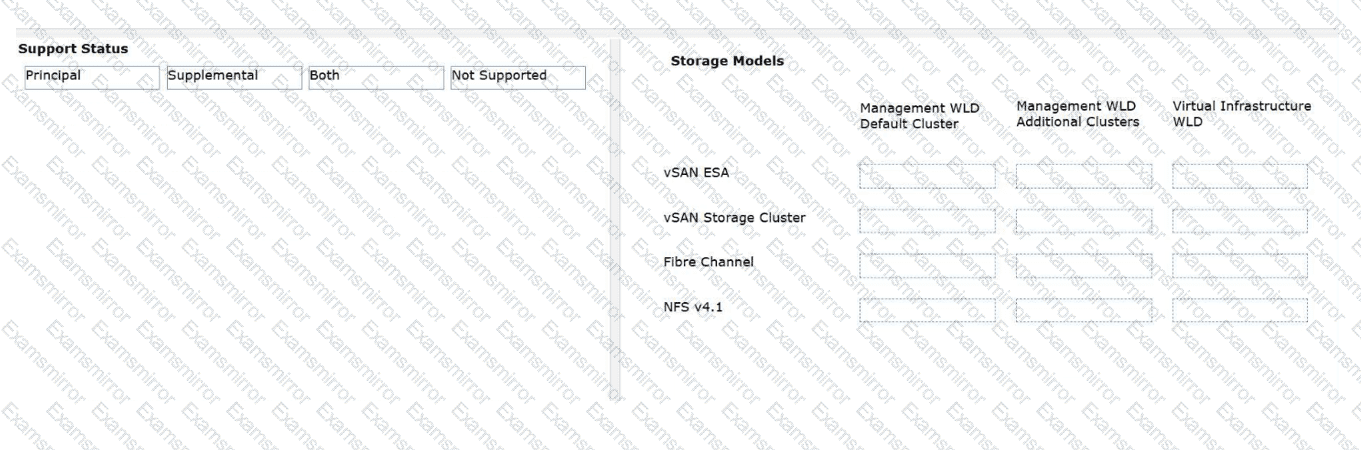

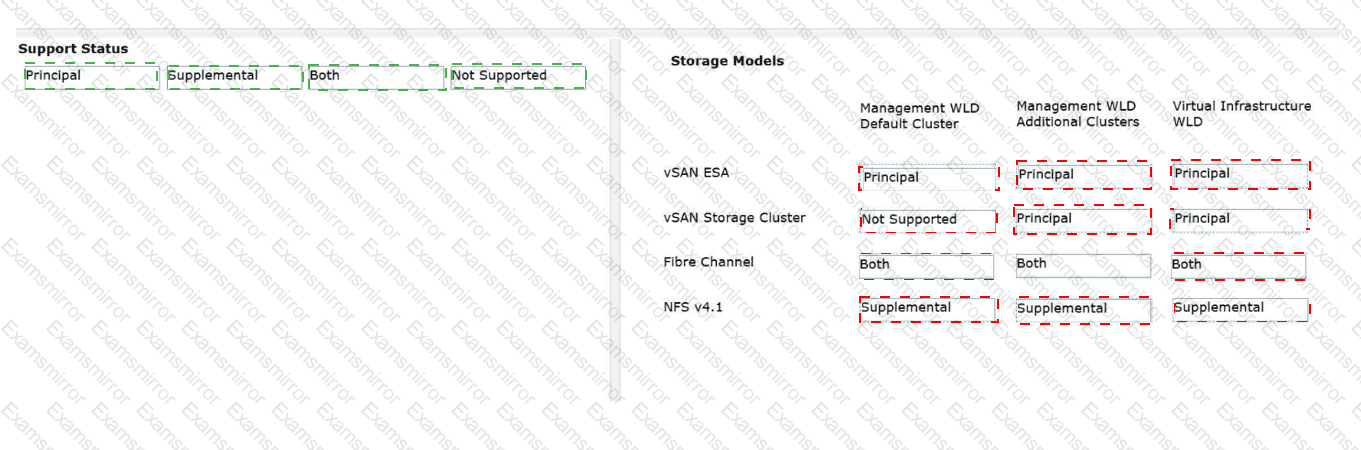

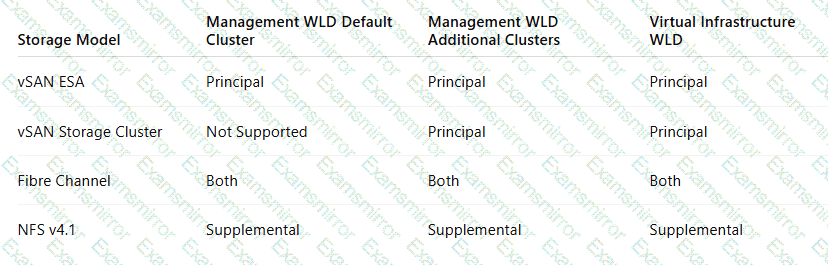

The correct mapping comes from the VCF 9.0 Principal and Supplemental Storage model. vSAN ESA is supported as principal storage for the Management Domain default cluster, Management Domain additional clusters, and VI Workload Domains. A vSAN Storage Cluster is not supported for the Management Domain default cluster because the initial management cluster requires a standard principal storage model, but it is supported as principal storage for Management Domain additional clusters and VI Workload Domains. Fibre Channel is supported as both principal and supplemental storage across all three domain or cluster categories, allowing either initial cluster creation or later datastore expansion. NFS v4.1 is supplemental-only across these categories. NFS can be principal only when using NFS v3; NFS v4.1 is used as supplemental storage after the domain or cluster exists. These statuses align with VCF’s distinction between principal storage, which is used during workload domain or cluster creation, and supplemental storage, which is added after creation for workloads or data-at-rest use cases. Reference topics: Storage Models, Principal Storage, Supplemental Storage, vSAN ESA, Storage Cluster, Fibre Channel, NFS.

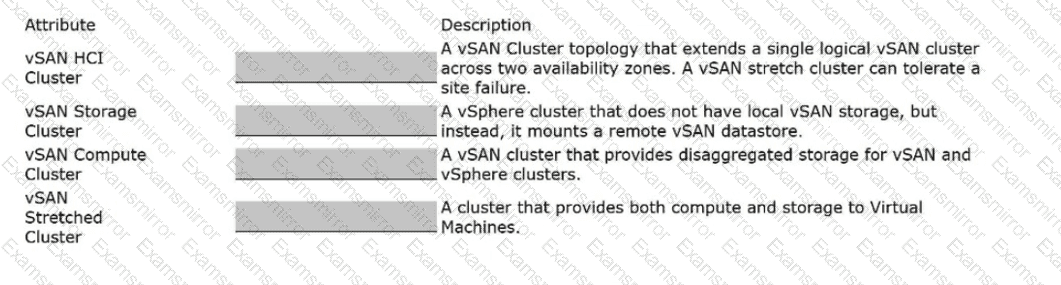

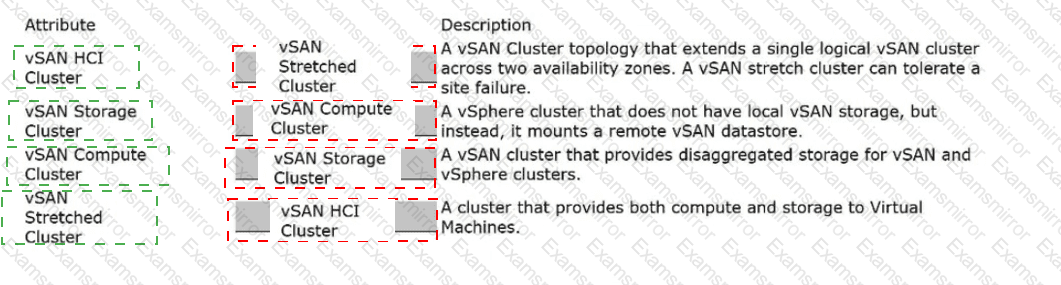

vSAN HCI Cluster = A cluster that provides both compute and storage to Virtual Machines;

vSAN Storage Cluster = A vSAN cluster that provides disaggregated storage for vSAN and vSphere clusters;

vSAN Compute Cluster = A vSphere cluster that does not have local vSAN storage, but instead, it mounts a remote vSAN datastore;

vSAN Stretched Cluster = A vSAN Cluster topology that extends a single logical vSAN cluster across two availability zones. A vSAN stretched cluster can tolerate a site failure.

These mappings describe the primary vSAN storage models used in VMware Cloud Foundation 9.0. A vSAN HCI Cluster is the traditional hyperconverged model where the same cluster provides compute resources and contributes local storage devices to the vSAN datastore for running virtual machines. A vSAN Storage Cluster is a disaggregated storage model based on vSAN ESA; it provides storage capacity and performance to other vSAN or vSphere clusters instead of primarily running workloads itself. A vSAN Compute Cluster is a vSphere cluster that does not contribute local vSAN capacity. Instead, it consumes a remote datastore exported by a vSAN Storage Cluster, enabling compute and storage to scale separately. A vSAN Stretched Cluster extends a single logical vSAN cluster across two availability zones or sites and uses a witness to maintain quorum, allowing workloads to tolerate a full site failure. These distinctions are essential for choosing between HCI, disaggregated storage, remote storage consumption, and availability-zone resilience. Reference topics: vSAN HCI Cluster, vSAN Storage Cluster, vSAN Compute Cluster, vSAN Stretched Cluster, VCF Storage Models.

The available custom recovery steps are top-level commands, message prompts, and per-machine commands. VMware Live Site Recovery recovery plans operate like automated runbooks, and administrators can insert custom steps to match business continuity requirements. Broadcom TechDocs states that custom recovery steps can run commands or present messages to the user during a recovery. Command recovery steps are divided into two categories: top-level commands and per-virtual-machine commands. Top-level commands are inserted directly into the recovery plan and run on the VMware Live Site Recovery server. Per-machine commands are associated with individual recovered VMs and run before or after that VM is powered on, depending on placement in the workflow. Message prompts are interactive steps that pause the plan until an operator acknowledges the message, making them useful for manual validation, external approvals, or runbook checkpoints. IP reconfiguration is handled through recovery plan networking and guest customization, not as a custom step type. Writable storage snapshots are part of test recovery/storage behavior, not a custom recovery step. Reference topics: VMware Live Site Recovery Recovery Plans, Creating Custom Recovery Steps, Top-Level Commands, Message Prompts, Per-VM Commands.

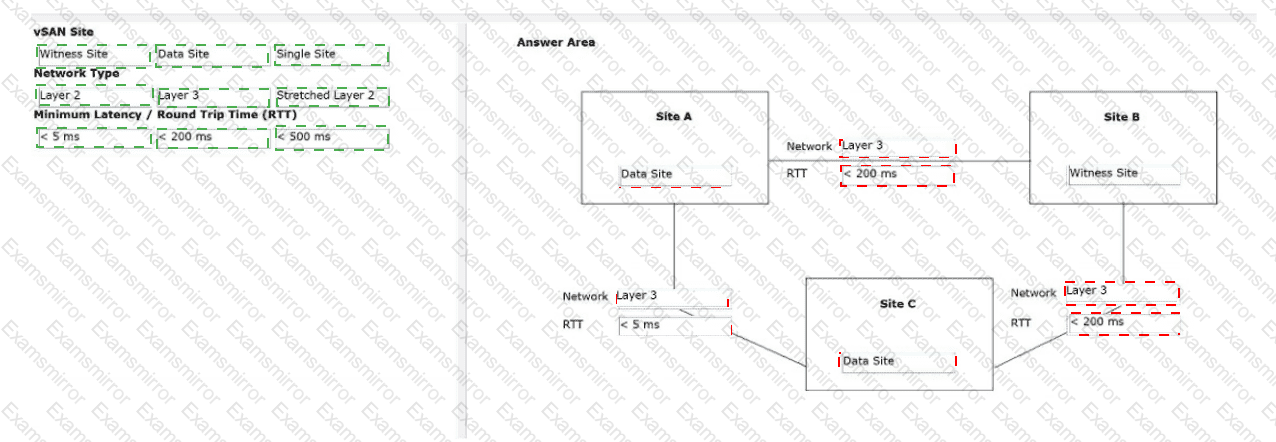

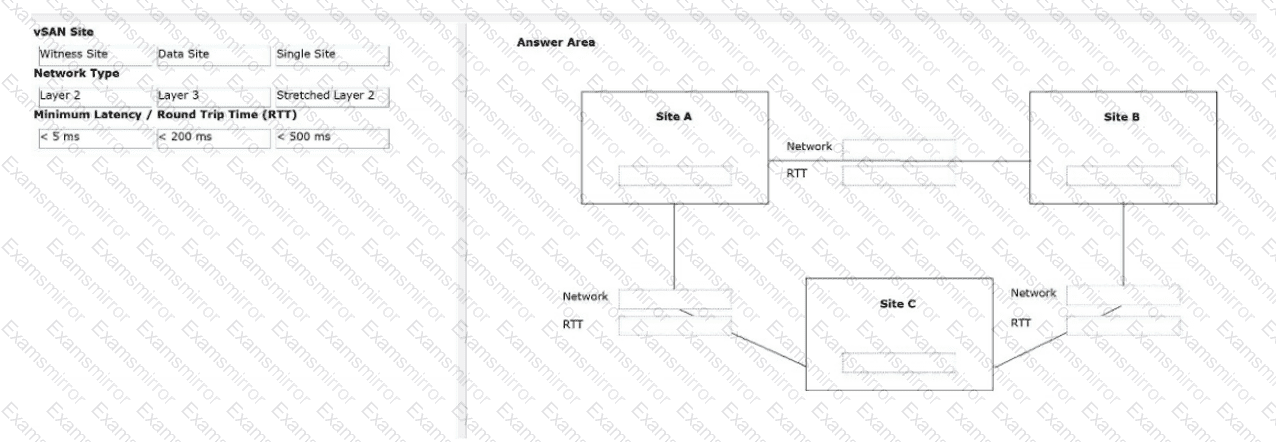

Site A = Data Site; Site B = Witness Site; Site C = Data Site; Site A ↔ Site C = Layer 3, RTT < 5 ms; Site A ↔ Site B = Layer 3, RTT < 200 ms; Site B ↔ Site C = Layer 3, RTT < 200 ms

Site A and Site C should be the data sites because Site A hosts production services and Site C has been commissioned to replace the capacity-constrained Site B. Site B should be used as the witness site because it has no space for additional physical hosts, and a vSAN witness appliance does not run workload VMs. A vSAN Stretched Cluster requires two availability zones for data nodes and a third site for the witness appliance. The data-site-to-data-site connection carries synchronous vSAN data traffic and must meet less than 5 ms RTT. The witness site carries metadata traffic only, so the data-site-to-witness links support higher latency, with less than 200 ms RTT for up to 10 hosts per site. Because the requirement specifically calls out minimizing disruption from STP, Layer 3 is the preferred network type between sites. VMware states that Layer 3 helps avoid STP redirecting traffic across undesirable links, such as constrained witness links. Reference topics: vSAN Stretched Cluster Network Design, Data Site and Witness Site Placement, Layer 3 Recommendation, RTT Requirements.

vSAN datastores are not managed through datastore clusters and Storage DRS in the same way as traditional VMFS or NFS datastore collections. A vSAN cluster exposes a distributed vSAN datastore, and VM placement, resilience, space efficiency, and compliance are controlled through vSAN Storage Policy Based Management rather than Storage DRS. The scenario also includes mixed vSAN OSA and vSAN ESA storage across clusters, which introduces an additional compatibility concern. vSAN OSA and vSAN ESA datastores are different architectures and are not combined into a single datastore-cluster construct for uniform Storage DRS placement. A datastore cluster should not combine different storage architectures such as vSAN, Fibre Channel, and NFS because Storage DRS assumes similar, interchangeable datastore resources. Creating a datastore cluster through APIs does not make vSAN datastores supported in this model. Therefore, the administrator should consider that vSAN datastores are not supported in datastore clusters and should use vSAN storage policies and appropriate datastore selection instead. Reference topics: vSAN Datastores, Storage Policy Based Management, Datastore Cluster Requirements, vSAN OSA and ESA Compatibility.

Dedicated VMFS datastores on assigned Fibre Channel arrays meet both the performance and separation requirements. VCF supports Fibre Channel-backed VMFS as principal storage for workload domains, making it valid as the primary datastore type for the tier-1 business application cluster. Fibre Channel provides low-latency block storage, resilient pathing, SAN zoning, LUN masking, and mature enterprise performance characteristics. Because the existing FC arrays are partitioned by business unit, dedicated datastores preserve organizational separation and avoid mixing business-unit workloads on shared storage resources. The same dedicated FC-backed VMFS approach can also be used as supplemental storage after the workload domain exists, allowing extra capacity or specialized tiers while maintaining separation. Shared VMFS datastores do not satisfy the organizational separation requirement because they allow multiple business units to consume the same datastore boundary. vSAN is explicitly excluded, so the design must rely on supported non-vSAN storage. Automated VM placement can be supported by VMFS datastore clusters and Storage DRS where datastores are compatible and similarly managed. Reference topics: Fibre Channel Storage Model, VMFS Datastores, Principal Storage, Supplemental Storage, Datastore Clusters.

The prerequisite is to enable vSAN on the non-vSAN cluster so it can operate as a vSAN compute cluster. A vSAN compute cluster is a vSphere cluster that does not contribute local vSAN capacity, but it has vSAN functionality enabled so it can mount a remote vSAN datastore provided by a vSAN Storage Cluster. The Datastore Management option under the vSAN section appears only when the consuming cluster is prepared for vSAN datastore sharing. Without vSAN enabled in compute-cluster mode, the vSphere cluster remains a conventional VMFS-backed cluster and cannot use the vSAN remote datastore management workflow. The cluster does not need to be in a different VCF Workload Domain, and there is no requirement that the storage cluster maintain exactly 80% free space before the option appears. A fourth host is also not required simply to mount remote vSAN capacity. The key requirement is enabling vSAN capability on the client cluster so it can communicate with and consume the remote ESA datastore. Reference topics: vSAN Compute Cluster, Remote vSAN Datastore, Datastore Management, vSAN Storage Cluster.

The Live! vSphere Heavy Hitter VM dashboard is the correct place to identify which virtual machines are driving storage IOPS and disk throughput problems. In VCF Operations, heavy hitter dashboards are designed to isolate the consumers creating the highest demand on shared infrastructure resources. For storage troubleshooting, this dashboard identifies VMs producing significant I/O load, including IOPS and throughput. This is especially useful when a Fibre Channel datastore is reporting performance alerts because the datastore itself may show contention, but the root cause is often one or more high-demand VMs consuming disproportionate backend storage resources. The vSAN Health dashboard is not correct because the affected datastore is Fibre Channel, not vSAN. The vSphere Storage Inventory dashboard is useful for topology and inventory visibility, but it is not the best view for identifying the VM-level consumers causing IOPS and throughput pressure. The Storage Operations page is broader and less targeted than the Live heavy hitter view. Reference topics: VCF Operations Performance Dashboards, Storage Heavy Hitters, VM IOPS and Throughput Troubleshooting.

Assigning different vSAN Storage Policies to each file share during creation satisfies the requirement because vSAN File Service allows each file share to be created with its own storage policy. The Create File Share workflow includes a Storage Policy selection, which controls how the file share’s underlying vSAN objects are protected and placed. This is the correct mechanism when each department requires distinct protection levels or placement rules. IP pools and file server bindings provide network endpoint capacity and service placement, but they do not define the protection level of file share data. Creating separate File Service clusters per department is unnecessary and operationally inefficient because file shares can be differentiated by policy within the same File Service deployment. vSphere Compute Policies influence compute placement, not vSAN object protection or file-share resilience. Therefore, the department-specific requirement is fulfilled directly by assigning the appropriate vSAN Storage Policy to each file share at creation time. Reference topics: vSAN File Service, Create File Share, Storage Policy, Placement and Protection Rules.

After vSAN File Services has been deployed, the editable settings are primarily related to the File Service domain network configuration. The vSAN File Service workflow allows modification of primary IP addresses, static IP addresses, and DNS names. These values define how the file service endpoints are presented to clients and how file server instances are resolved on the network. The File Service domain can be adjusted by editing the network configuration and adding or removing IP addresses as needed. The Active Directory domain is not treated as a simple post-deployment editable field because changing domain membership can disrupt authentication, permissions, and file-share access. The Active Directory username and Organizational Unit are part of the directory integration and domain-join configuration, but they are not the three standard settings identified for modification after the initial File Services configuration. Therefore, the three modifiable settings are Static IP addresses, Primary IP addresses, and DNS names. Reference topics: vSAN File Service, Edit File Service Domain, File Service Network Configuration, Active Directory Integration.
