802.1x is a network access control protocol that provides an authentication mechanism to devices trying to connect to a LAN or WLAN. This ensures that only authorized devices can access the network, making it ideal for mitigating the risk of unknown devices connecting to the network, especially in accessible areas.

802.1x Authentication: Requires devices to authenticate using credentials (e.g., username and password, certificates) before gaining network access.

Access Control: Prevents unauthorized devices from connecting to the network, enhancing security in public or semi-public areas.

Implementation: Typically used in conjunction with a RADIUS server to manage authentication requests.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers 802.1x and its role in network security.

Cisco Networking Academy: Provides training on implementing 802.1x for secure network access control.

Network+ Certification All-in-One Exam Guide: Explains the benefits and configuration of 802.1x authentication in securing network access.

Understanding ACLs:

Access Control Lists (ACLs): A set of rules used to control network traffic and restrict access to network resources by filtering packets based on IP addresses, protocols, or ports.

Implementing Security Zones:

Defining Zones: ACLs can be used to create security zones by applying specific rules to different departments, ensuring that only authorized traffic is allowed between these zones.

Control Traffic: ACLs control inbound and outbound traffic at network boundaries, enforcing security policies and preventing unauthorized access.

Comparison with Other Options:

Port Security: Limits the number of devices that can connect to a switch port, preventing MAC address flooding attacks, but not used for defining security zones.

Content Filtering: Blocks or allows access to specific content based on predefined policies, typically used for web filtering rather than network segmentation.

NAC (Network Access Control): Controls access to the network based on the security posture of devices but does not define security zones.

Implementation Steps:

Define ACL rules based on the requirements of each department.

Apply these rules to the appropriate network interfaces or firewall policies to segment the network into security zones.

Understanding Subnetting:

The subnet mask 255.255.255.240 (or /28) indicates that each subnet has 16 IP addresses (14 usable addresses, 1 network address, and 1 broadcast address).

Calculating the Subnet Range:

Subnet Calculation: For the IP address 10.0.0.95 with a /28 subnet mask:

Network address: 10.0.0.80

Usable IP range: 10.0.0.81 to 10.0.0.94

Broadcast address: 10.0.0.95

Router Interface Configuration:

Broadcast Address Issue: The IP address 10.0.0.95 is the broadcast address for the subnet 10.0.0.80/28. Configuring a router interface with the broadcast address will cause routing issues as it is not a valid host address.

Comparison with Other Options:

The web server is in a different subnet: The web server (10.0.0.81) is within the same subnet range (10.0.0.80/28).

The IP address space is a class A network: While 10.0.0.0 is a Class A network, this does not explain the routing issue caused by the broadcast address.

The subnet is in a private address space: The private address space designation (RFC 1918) does not impact the routing issue related to the broadcast address configuration.

Resolution:

Reconfigure the router interface with a valid host IP address within the usable range, such as 10.0.0.94.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

Security groups in cloud environments act as virtual firewalls for VM instances, controlling inbound and outbound traffic based on specified rules.

From Andrew Ramdayal’s guide:

“Network security groups are used to control inbound and outbound traffic to cloud resources within a VPC. They act as a virtual firewall for associated instances...”

Comprehensive and Detailed Explanation (aligned to N10-009):

802.1X provides port-based Network Access Control (NAC), requiring authentication (often through RADIUS) before granting access. This is the standard for enterprise authentication on both wired and wireless networks.

A. 802.1Q defines VLAN trunking.

C. 802.3bt defines higher-power PoE.

D. 802.11h deals with spectrum management in wireless.

References (CompTIA Network+ N10-009):

Domain: Network Security — NAC, 802.1X authentication.

It is common for an access port to have both a voice VLAN and a data VLAN. A voice VLAN separates voice traffic from regular data traffic, ensuring better quality and security for voice communications.

=================

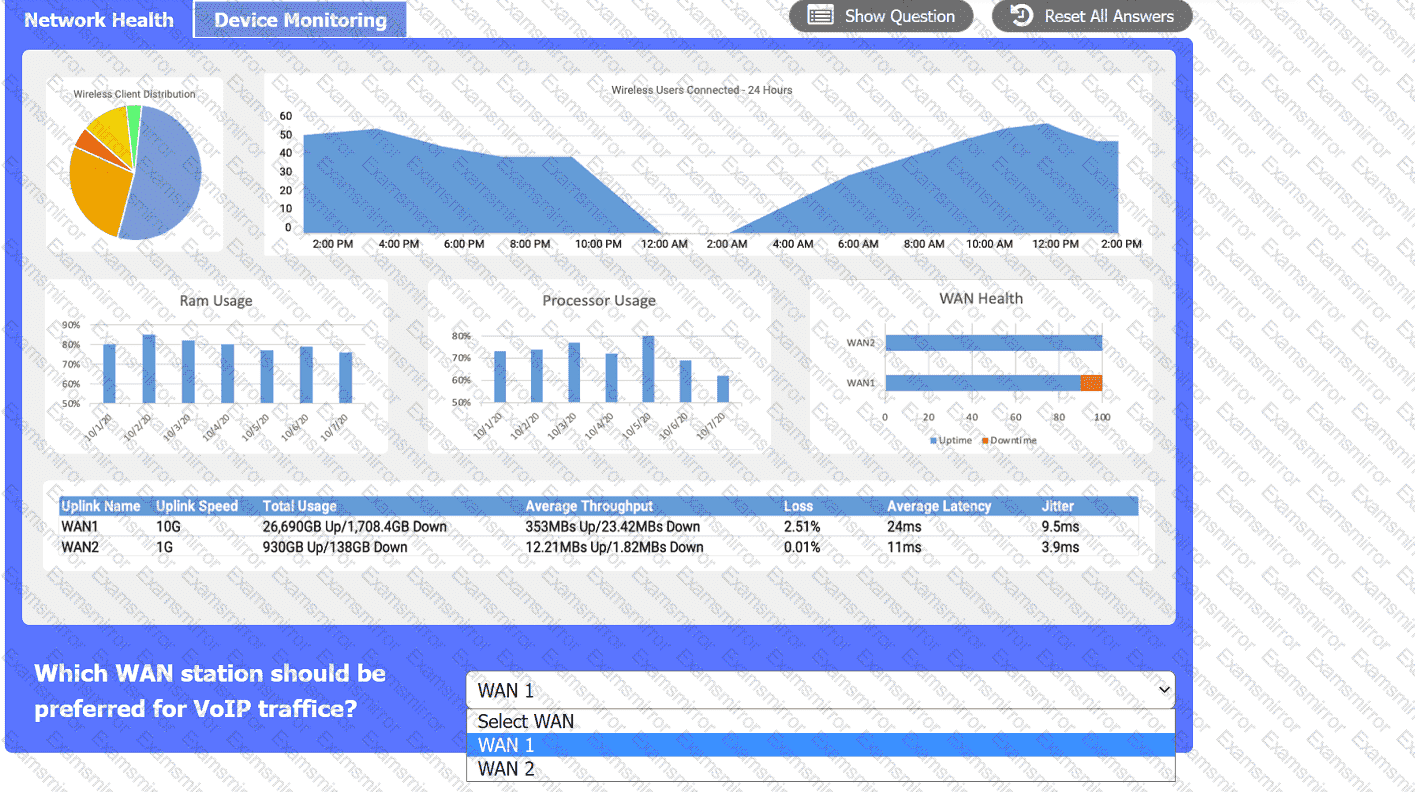

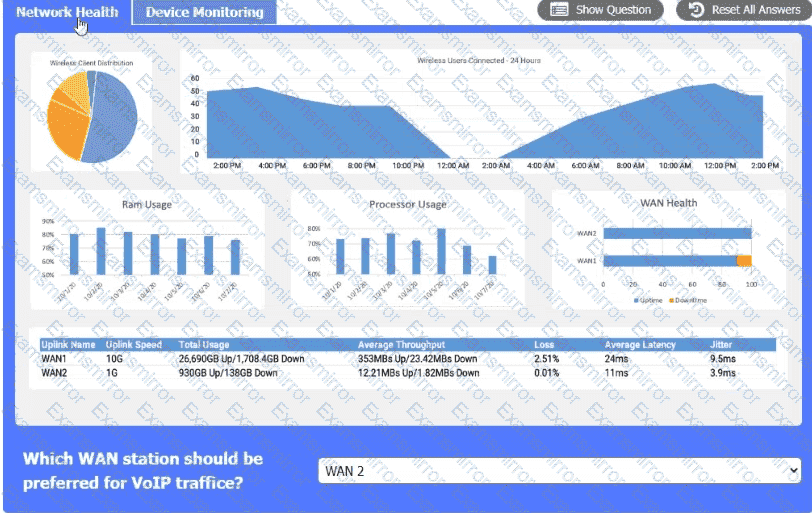

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here ' s the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

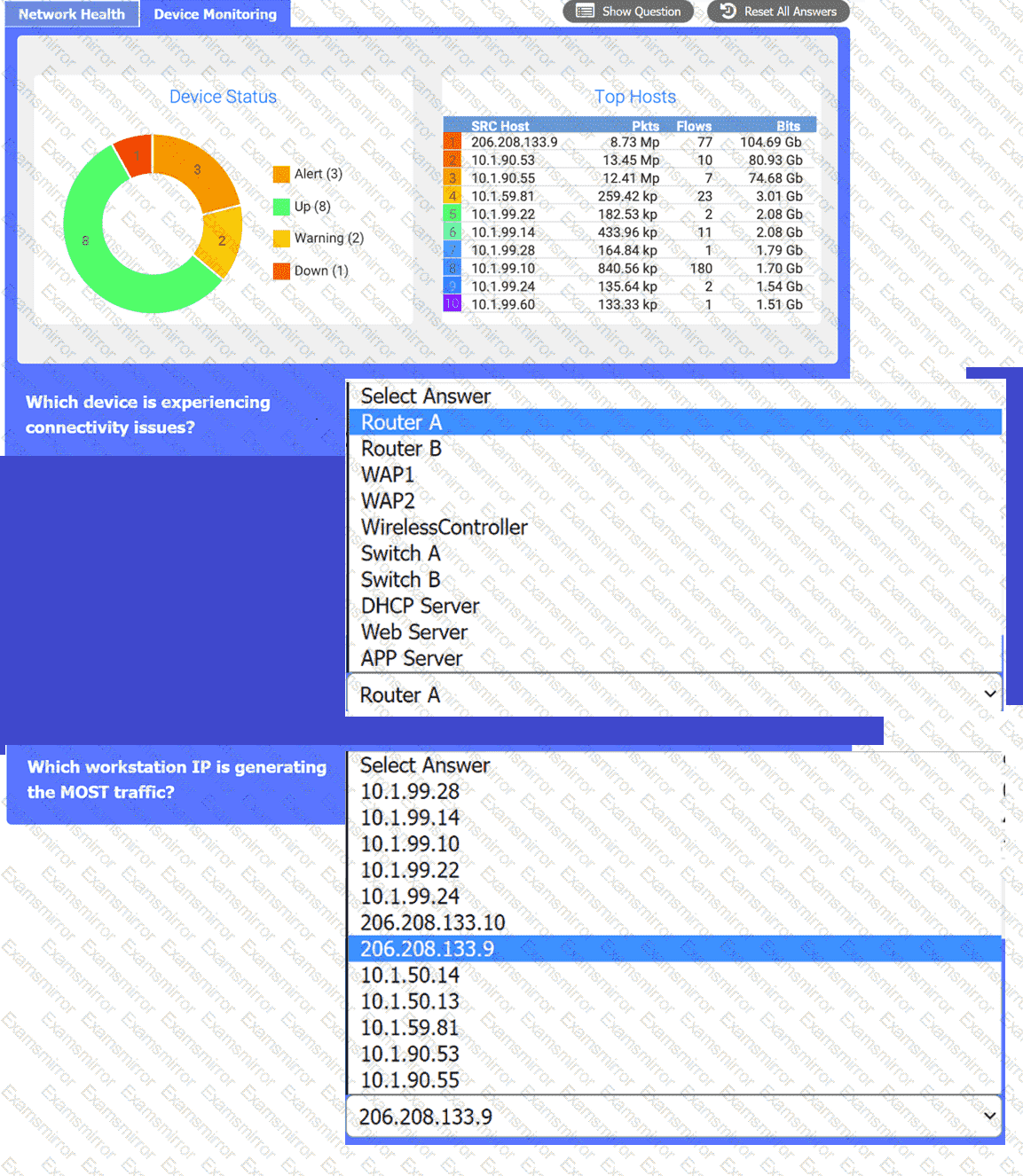

Device Monitoring:

the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

A screenshot of a computer AI-generated content may be incorrect.

The issue is clearly related to DNS resolution, as IP-based connections succeed but domain name-based ones fail.

D. dig (Domain Information Groper) is a DNS lookup tool used to troubleshoot DNS problems by querying name servers directly.

Other tools are less relevant here:

A. tcpdump is a packet analyzer and is more advanced for deeper traffic analysis.

B. tracert is used to trace the route to a destination, not ideal for DNS issues.

C. nmap is a port scanner and network mapper, not for resolving DNS problems.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 5.1 – Given a scenario, use the appropriate network troubleshooting tools.

===========

A baseline establishes normal performance levels for network utilization, latency, jitter, and other metrics. After a merger, traffic patterns change, so a new baseline is needed to recalibrate monitoring thresholds and avoid excessive false alerts.

A. SLA defines performance agreements with customers but doesn’t adjust alerting.

B. Network diagrams show topology, not traffic norms.

D. Heat maps show wireless coverage, not utilization baselines.

References (CompTIA Network+ N10-009):

Domain: Network Operations — Baselines, monitoring, alerting, performance tuning.

Malware refers to any malicious software that can exfiltrate confidential data, including spyware, trojans, and rootkits. This fits the scenario where unauthorized data transfer is occurring.

Breakdown of Options:

A. Adware – Displays ads, does not typically steal data.

B. Ransomware – Encrypts files but does not exfiltrate data.

C. Darkware – Not a real cybersecurity term.

D. Malware – Correct answer. Malicious software is responsible for unauthorized data exfiltration.

This describes a Spanning Tree Protocol (STP) loop. If STP isn’t correctly configured or a redundant link is added without STP protection, it causes broadcast storms and network outages.

A. Unused ports disabled would not affect the entire network.

B. Missing default gateway on a switch doesn’t cause total network loss.

**C. Connecting a switch to an access port can cause VLAN mismatches, but not total connectivity loss unless a loop forms.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 3.6 – Explain the characteristics of network topologies and types.

===========

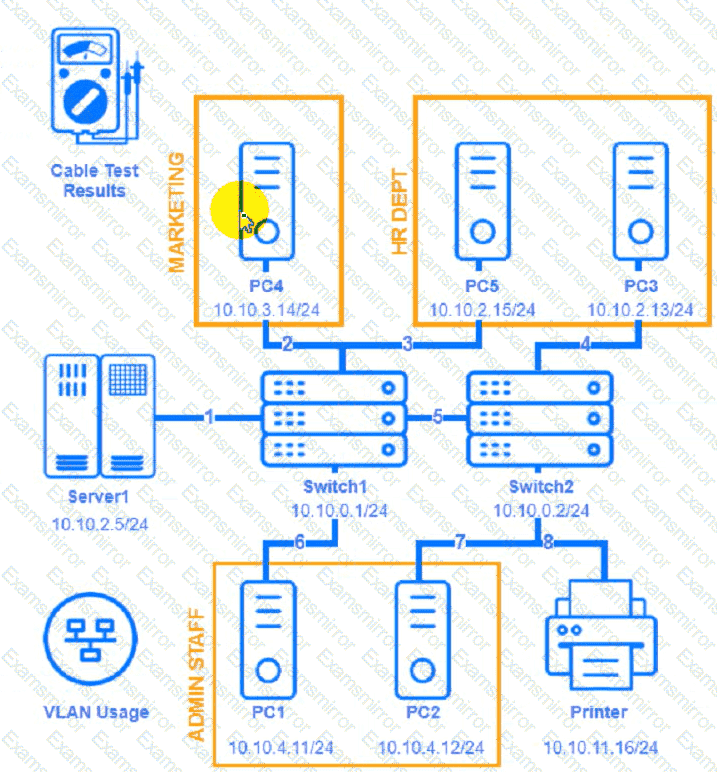

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

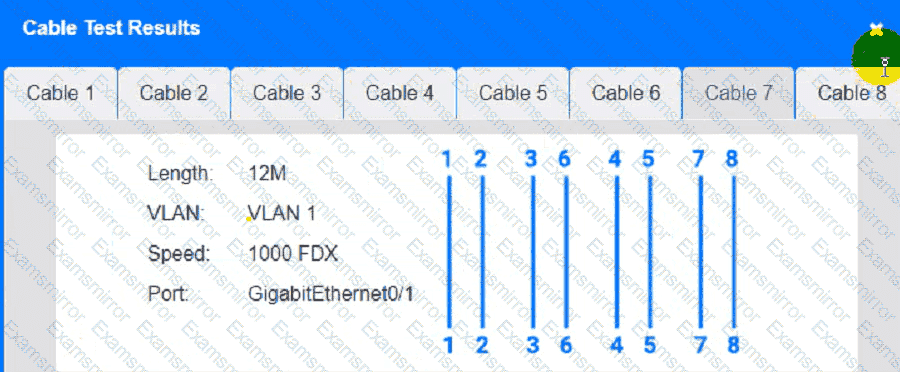

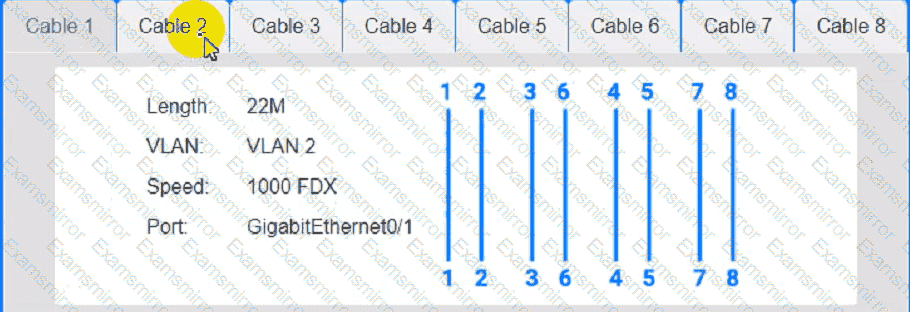

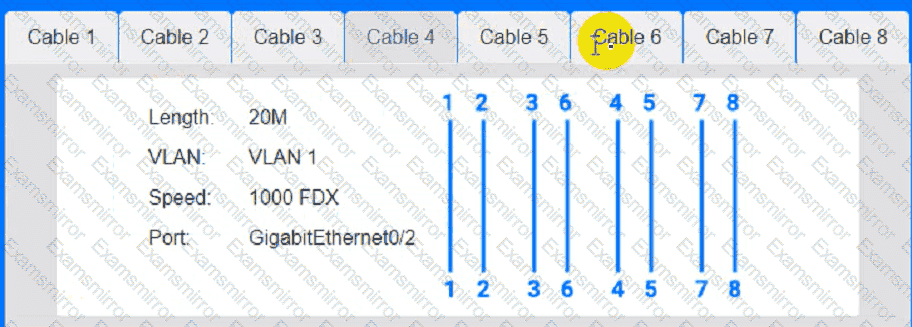

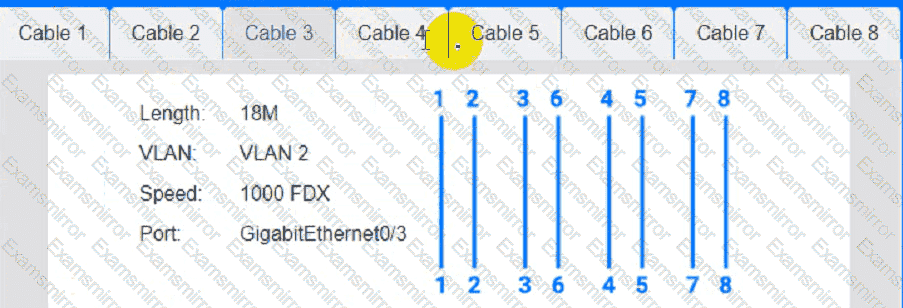

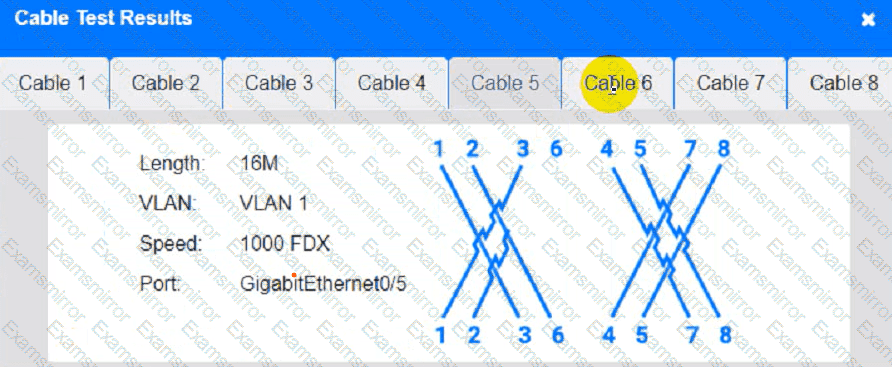

To troubleshoot all the network components and review the cable test results, you can use the following steps:

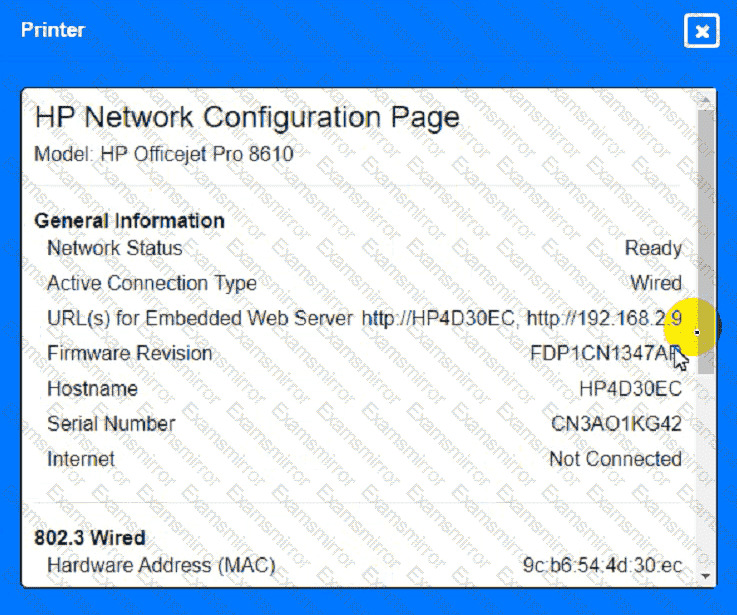

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

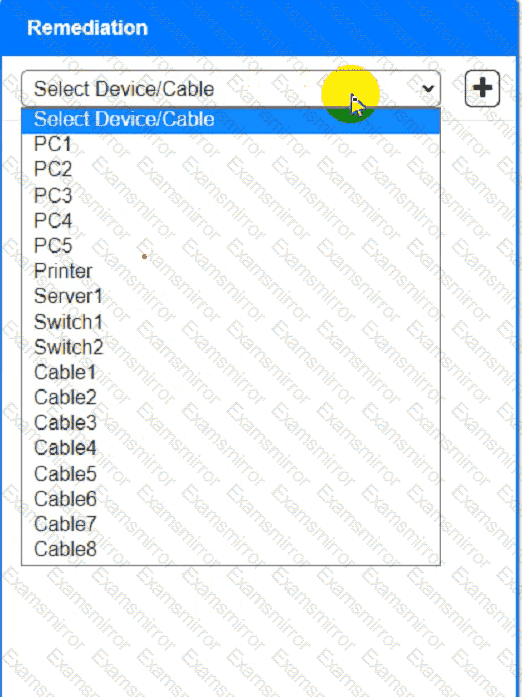

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

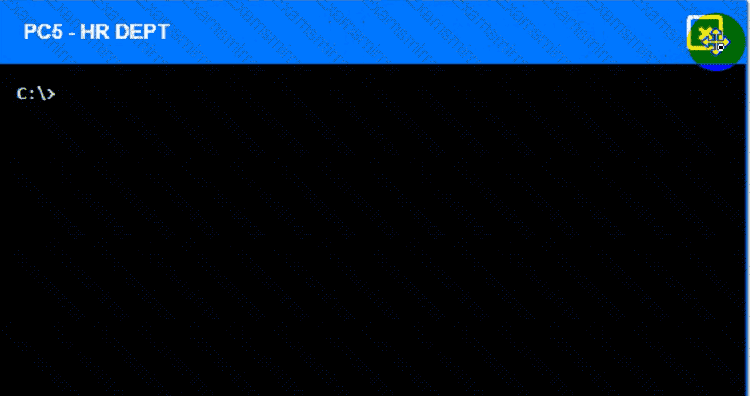

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping < IP address >  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert < IP address >  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

The correct solution is a Data Center Interconnect (DCI). DCIs extend Layer 2 networks across geographically dispersed data centers, enabling seamless replication of services such as SAN storage, backup synchronization, or VM migrations. This ensures workloads and data can move between sites while maintaining the same VLANs and addressing.

A. Security Service Edge (SSE) provides cloud-delivered security functions like secure web gateways and CASB, not Layer 2 extension.

C. Infrastructure as code (IaC) automates deployment and management of network infrastructure but is unrelated to extending Layer 2 domains.

D. Zero Trust architecture is a security framework ensuring strict access control but doesn’t address network connectivity between sites.

In scenarios where backups need replication between sites, Layer 2 extension is often required so systems can communicate as if they are in the same broadcast domain. DCI is specifically designed to provide this functionality reliably and securely.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — WAN technologies, data center interconnect, backup replication.
