The correct metric is RTO (Recovery Time Objective). RTO defines the maximum acceptable time to restore services after a disruption, ensuring business continuity. For example, if the RTO is 4 hours, systems must be back online within that timeframe after an outage.

B. MTBF (Mean Time Between Failures) measures reliability by calculating the average time between hardware failures.

C. RPO (Recovery Point Objective) defines how much data loss (in terms of time, such as last backup point) is acceptable.

D. MTTR (Mean Time to Repair) measures the average time taken to fix a failure but is not a predefined business requirement like RTO.

Organizations define RTOs during disaster recovery planning to align IT recovery capabilities with business needs.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Business continuity metrics (RTO, RPO, MTBF, MTTR).

The correct answer is B. NAT64. This scenario says the internal network is using only IPv6. In the real world, many internet services still rely on IPv4, so an IPv6-only client may need a translation mechanism to reach IPv4-based servers. That is exactly where NAT64 is used. It allows communication between IPv6-only clients and IPv4 resources by translating between the two protocols.

The other options do not solve that requirement. MPLS is used for traffic forwarding across provider networks and has nothing to do with IPv4/IPv6 protocol translation. GRE creates tunnels, but it does not automatically translate one IP version into another. Static routing can direct traffic, but it cannot make IPv6-only hosts speak to IPv4-only internet destinations.

From a Network+ perspective, this question is testing knowledge of IPv6 transition and interoperability mechanisms. If the network is entirely IPv6 internally, but still needs access to parts of the internet that may be IPv4, some translation service has to exist at the boundary. Among the choices given, NAT64 is the only technology that fits that role. That is why B is the best answer.

Comprehensive and Detailed Explanation (paraphrased, aligned to N10-009):

In a spine–leaf architecture, endpoints (including servers, firewalls, and WAN/edge routers) connect to leaf switches. Leaf switches then uplink to spine switches; spine switches do not have endpoints connected directly to them. Therefore, a WAN router (an external/edge device) should connect to the leaf layer—often specifically to a “border leaf” that handles external connectivity.

Why not B. Core or D. Spine? In spine–leaf, “core” isn’t a formal layer, and spines are designed only to interconnect leafs, not to terminate endpoints.

Why not A. Access? “Access” is a term from the traditional three-tier model (access–distribution–core). In modern spine–leaf language, the analogous layer for endpoint attachment is the leaf.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — Data center and campus architectures (spine–leaf vs. three-tier), roles of leaf/spine, WAN/edge connectivity points.

===========

The CompTIA Troubleshooting Methodology states that after testing the theory, the next step is to establish a plan of action to resolve the issue.

Troubleshooting Steps:

Identify the problem.

Establish a theory of probable cause.

Test the theory to determine the cause.

Establish a plan of action and implement the solution. ✅ (Correct step)

Verify full system functionality.

Document findings, actions, and outcomes.

Breakdown of Options:

A. Verify full system functionality – Happens after implementing the solution.

B. Document the findings and outcomes – Final step, happens after resolving the issue.

C. Establish a plan of action – ✅ Correct answer. Comes immediately after confirming the cause.

D. Identify the problem – First step, already completed.

To locate a specific access point (AP), the most reliable identifier to view is the BSSID. In 802.11 networks, the BSSID is the radio interface identifier for the AP (typically the AP radio’s MAC address). Unlike an SSID, which can be shared across many APs in the same wireless network (especially in an enterprise deployment using the same SSID across multiple APs), the BSSID uniquely distinguishes one AP radio from another. This is critical during an 802.11ax (Wi-Fi 6) migration, where multiple APs may broadcast identical SSIDs and operate on the same channels in different areas.

While RSSI is useful for physically walking toward the strongest signal (a technique used in locating RF sources), RSSI alone does not confirm you are tracking the correct AP—only that you are near an RF transmitter. Channel number also does not uniquely identify the AP because multiple APs can share the same channel (and channels may overlap depending on band and width). SSID similarly is not unique. Therefore, viewing the BSSID on the analyzer (or Wi-Fi analyzer mode) allows the administrator to confirm the exact AP being measured and located.

A hot site is a fully operational backup facility with hardware, network, and data synchronization already in place. It allows for immediate failover in the event of a disaster, minimizing downtime.

B. DCI (Data Center Interconnect) connects data centers but doesn’t guarantee availability unless built redundantly.

C. Direct Connect refers to a private link to cloud providers, not disaster recovery.

D. Active-passive can help with failover but may involve delay unless combined with hot site principles.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 4.4 – Summarize business continuity and disaster recovery concepts.

Unshielded cables (D) are more prone to interference and may not be suitable for certain environments, especially after a fire where interference could be heightened.

Using the wrong transceiver (E) for new terminations can lead to compatibility issues, causing network failures.

=================

In a mesh topology, every node is directly connected to every other node. This provides high redundancy and reliability, as there are multiple paths for data to travel between nodes. This topology is often used in networks where high availability is crucial.References: CompTIA Network+ study materials.

The correct answer is SAML (Security Assertion Markup Language). SAML is an XML-based standard used for single sign-on (SSO) and identity federation. It allows identity providers (IdPs) to share authentication and authorization data with service providers (SPs), passing secure tokens containing user attributes and credentials.

A. IAM (Identity and Access Management) is the broader framework, not specifically XML-based.

B. MFA enforces multiple factors for authentication but does not involve XML assertions.

C. RADIUS is an AAA protocol, but it uses UDP, not XML assertions.

SAML is widely used in federated identity systems, enabling secure authentication across different domains and applications without requiring multiple credentials.

References (CompTIA Network+ N10-009):

Domain: Network Security — Authentication methods, SAML, SSO.

The customer can access local resources (a database server), which means local networking is working. However, the inability to reach the internet suggests an issue with the default gateway. If the default gateway is unreachable, packets will not be routed outside the local network.

Breakdown of Options:

A. Incorrect DNS – DNS issues would cause problems resolving domain names, but the user should still be able to access external resources via IP addresses.

B. Unreachable gateway – ✅ Correct answer. If the default gateway is incorrect or unreachable, the device cannot route traffic to the internet.

C. Failed root bridge – STP (Spanning Tree Protocol) failures cause switching issues, but the user can still access local devices, meaning STP is not the problem.

D. Poor upstream routing – Would affect the entire network, not just one user.

If the IP phone works but the workstation doesn ' t, it indicates that the Voice VLAN is functioning correctly, but the Data VLAN (C) is either misconfigured or missing. The workstation typically connects through the phone, which tags voice and data traffic separately using VLANs.

A. Voice VLAN is for the IP phone, which is already working.

B. Native VLAN is for untagged traffic on trunk ports, but doesn’t control access directly.

D. Trunk port is more relevant to switch interconnections than individual workstation ports.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 2.3 – Given a scenario, configure and verify VLANs.

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

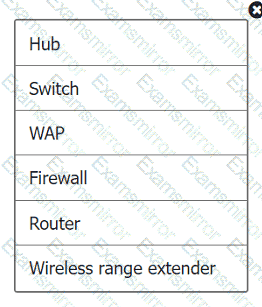

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

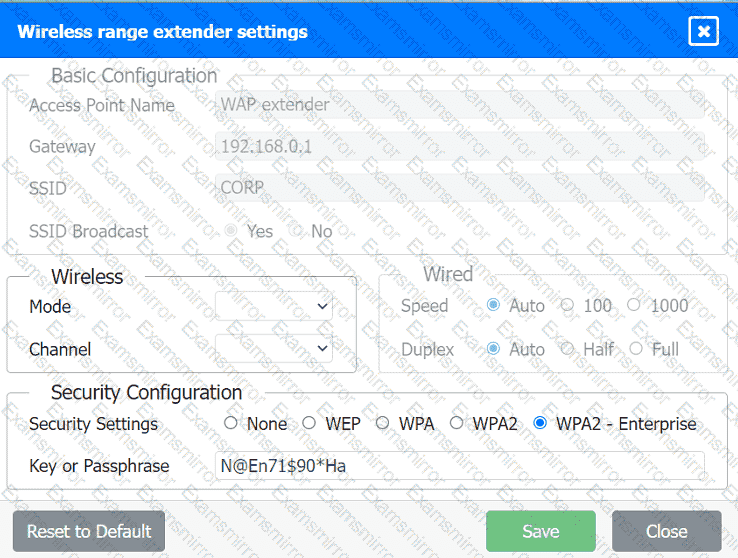

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to " CORP " as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the " Save " button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

Definition of RPO:

Recovery Point Objective (RPO) is a disaster recovery metric that describes the maximum acceptable amount of data loss measured in time. It indicates the point in time to which data must be recovered to resume normal operations after a disaster.

For example, if the RPO is set to 24 hours, then the business could tolerate losing up to 24 hours ' worth of data in the event of a disruption.

Why RPO is Important:

RPO is critical for determining backup frequency and helps businesses decide how often they need to back up their data. A lower RPO means more frequent backups and less potential data loss.

Comparison with Other Metrics:

MTTR (Mean Time to Repair): Refers to the average time required to repair a system or component and return it to normal operation.

RTO (Recovery Time Objective): The maximum acceptable length of time that a computer, system, network, or application can be down after a failure or disaster occurs.

MTBF (Mean Time Between Failures): The predicted elapsed time between inherent failures of a system during operation.

How RPO is Used in Disaster Recovery:

Organizations establish RPOs to ensure that they can recover data within a timeframe that is acceptable to business operations. This involves creating a backup plan that meets the RPO requirements.

The most likely cause of buffering issues when moving outdoors is signal degradation. Wireless signals weaken as they travel through obstacles such as walls, glass, and air, leading to weaker connections and reduced data rates.

Breakdown of Options:

A. Network congestion – While congestion can slow down network speeds, it affects all users, not just those moving outdoors.

B. Wireless interference – Interference is possible but is more likely caused by other wireless signals rather than outdoor movement.

C. Signal degradation – Correct answer. Wireless signals weaken with distance and obstacles such as walls, reducing performance.

D. Client disassociation – Disassociation occurs when clients lose connection to the AP, but the question states that users experience buffering, indicating they are still connected but with a weak signal.

Comprehensive and Detailed Explanation (aligned to N10-009):

Multitenancy is a cloud concept where multiple customers share the same physical resources (servers, storage, and networks) but remain logically separated for security and privacy.

A. Elasticity is auto-scaling resources.

B. Hybrid cloud combines private and public resources.

C. Scalability is the ability to grow resources but doesn’t imply multiple customers.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Cloud computing models, multitenancy in public cloud.
