Source NAT (Network Address Translation) is used on SRX devices to allow hosts with private IP addresses to access external networks, such as the Internet. The SRX translates the private IP address of the source host into a public IP address before forwarding traffic toward the destination.

It does not translate MAC addresses (Option A).

NAT is unidirectional in this case: it specifically translates private-to-public in the outbound direction, while the reverse (return traffic) is handled automatically through the session table. It is not a bidirectional translation (Option C).

NAT processing occurs as part of the flow module, not limited only to ingress traffic (Option D).

Therefore, the correct statement is that source NAT translates private IP addresses to public IP addresses .

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct → Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT

When traffic enters an SRX Series Firewall, the ingress interface determines the source security zone because that interface is already bound to a zone. The route lookup is then used to determine where the packet should leave the device. Juniper documentation explains that the packet’s outgoing zone is determined by the forwarding lookup, and together the incoming zone and outgoing zone determine which security policy context is used. Therefore, the route lookup determines the egress interface and, indirectly through the egress interface’s zone membership, the egress security zone. It does not determine the ingress interface because the packet has already arrived on that interface. It also does not determine a DNS name; DNS resolution is unrelated to SRX route lookup and security zone selection.

Transit traffic is defined as traffic passing through the SRX firewall (from one interface/zone to another). To allow transit traffic:

Interfaces must be placed into a user-defined security zone (Option C).

Policies between zones are then applied to control traffic.

The null zone (Option A) discards all traffic.

The Junos-host zone (Option B) is used for traffic destined to the SRX itself, not transit.

Functional zones (Option D) are predefined and used for special purposes (like management), not for transit traffic.

Correct Configuration: User-defined security zone

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

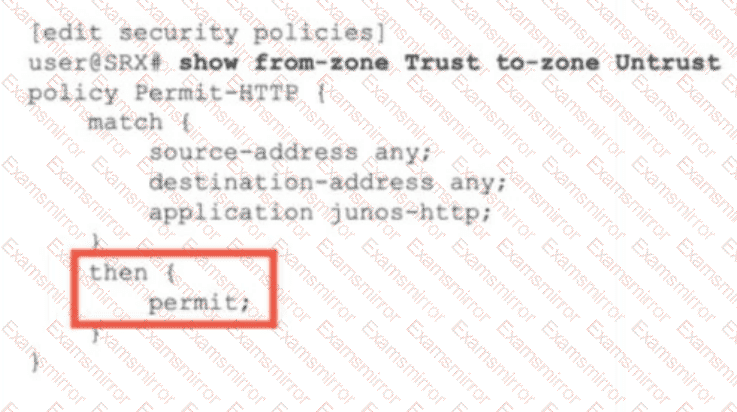

The highlighted portion in the exhibit is:

then {

permit;

}

In Junos OS security policy configuration, the then statement defines the policy action . The action tells the SRX Series Firewall what to do with traffic after it matches the policy conditions.

A security policy normally contains these major components:

Zone context: from-zone Trust to-zone Untrust

Policy name: policy Permit-HTTP

Match criteria: source address, destination address, and application

Policy action: then permit, then deny, or then reject

In the exhibit, the highlighted section is not the zone context, policy name, or match criteria. It is the action section that permits the matched HTTP traffic.

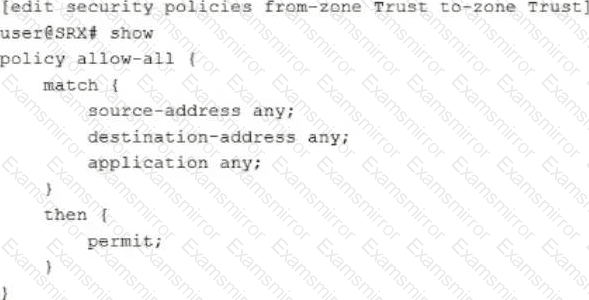

The exhibit shows a policy configured under from-zone Trust to-zone Trust. Because the source zone and destination zone are the same, this is an intra-zone security policy. An inter-zone policy would have different source and destination zones, such as Trust to Untrust. A global policy does not require the same specific from-zone and to-zone context in the same way as a zone-based policy. A default policy is the implicit final behavior used when no configured security policy matches. Junos security policies enforce rules for transit traffic using zone context, source address, destination address, application, and action. Since both zone references are Trust, the displayed policy is clearly an intra-zone policy.

Security Director (Option B): A Junos Space application that provides a centralized interface for managing, monitoring, and maintaining multiple SRX firewalls.

Juniper Secure Analytics (Option A): Focuses on SIEM/log analysis, not centralized firewall management.

Identity Management Service (Option C): Provides user identity integration for policy enforcement, not a management UI.

Secure Connect (Option D): A VPN client solution, not a firewall management platform.

Correct UI: Security Director

The SBL (SurfControl Web Filtering) server integration is part of UTM web filtering on SRX. To confirm that the firewall is properly connected and communicating with the SBL server, the command used is:

show security web filtering status

This command displays connectivity information with the SBL server, license status, and filtering operations.

Other options:

Anti-virus (Option A) checks antivirus engine status.

Content-filtering statistics (Option C) shows local content filtering counters.

Anti-spam status (Option D) checks spam engine connectivity.

Correct Command: show security web filtering status
