An SRX Series Firewall can operate in flow mode or packet mode. Flow mode is the normal security firewall mode, where the SRX analyzes traffic statefully, creates sessions, and applies services such as security policies, NAT, screens, and application security. Packet mode processes traffic on a per-packet basis and is stateless, making the SRX behave more like a router for selected forwarding functions. Juniper documentation specifically identifies these two operating modes for SRX Series Firewalls. Route mode is not an SRX firewall operating mode; routing is a forwarding function within Junos OS. Wireless mode is also not a firewall processing mode. Therefore, the correct answers are flow mode and packet mode.

To enable Juniper NextGen Web Filtering, the SRX must have the required NGWF license and the web-filtering type must be configured for NGWF. Juniper documentation states that Enhanced Web Filtering and NGWF require separate licenses and that NGWF can use the wf_key_ng_juniper license key. Juniper also documents NGWF as a configurable web- filtering type, including ng-juniper, and notes that administrators can confirm missing license conditions using the web-filtering status command. A public IP address on the loopback interface is not a general NGWF requirement. SSL host inbound traffic on the untrust zone is also not required for enabling NGWF; SSL proxy or SNI behavior may affect HTTPS inspection, but it is not the base enablement step.

The antivirus feature on SRX relies on signature definition files that must be regularly updated. To check the status of these updates, the correct operational command is:

show security utm anti-virus status (Option D). This displays details such as:

Antivirus engine status

Last update time of virus definitions

Version of the signature database

Other options:

Content-filtering statistics (Option A) shows counters for file-type filtering, not antivirus updates.

Anti-spam status (Option B) shows spam filtering engine connectivity.

Web filtering status (Option C) shows SBL/web filter server connection details.

Correct Command: show security utm anti-virus status

Juniper security address objects are defined in address books and are used by features such as security policies and NAT. A global address object is valid because Junos supports a global address book that is available across security zones without attaching it to a specific zone. A prefix address object is also valid because Juniper allows addresses to be specified in network prefix format, such as 203.0.113.0/24. Routing address object is not a standard Junos security address-book object type. MAC address object is not the normal address object used for SRX security policy address matching, which primarily uses IPv4, IPv6, DNS, wildcard, and address-range entries.

Multiple routing instances (such as virtual routers or VRFs) can be configured on an SRX to provide separation of routing tables. This enables:

Maintaining separation of routing information (Option B): Different departments, tenants, or customers can have their own independent routing domains for security and isolation.

SNMP monitoring (Option A) is unrelated to routing instances.

Routing protocols (Option C) can be run inside each instance, but the purpose of multiple instances is separation, not general routing protocol management.

Simplifying interface configuration (Option D) is not a function of routing instances.

Correct Purpose: To maintain separation of routing information for security purposes.

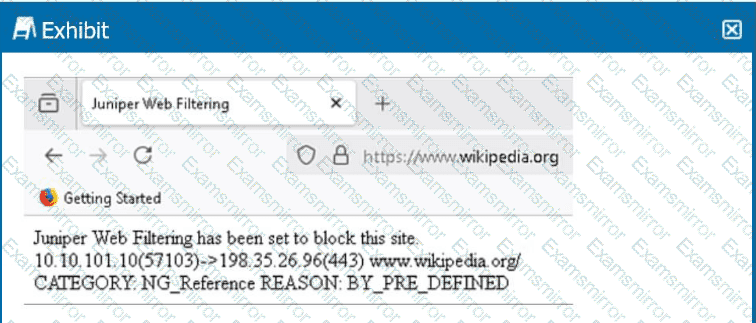

From the exhibit:

The user attempted to access https://www.wikipedia.org.

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

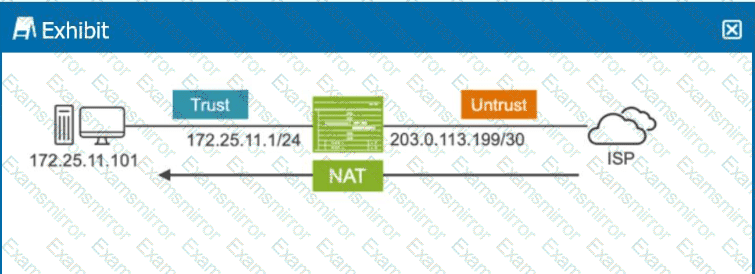

From the exhibit:

The internal host (172.25.11.101) is located in the Trust zone .

The external address (203.0.113.199/30) is used for communication with the ISP.

The requirement is that sessions can only be initiated from the external device (the ISP or untrust side) toward the internal host.

This requirement matches the behavior of Destination NAT :

Destination NAT only (Option A): Maps the external/public IP (203.0.113.199) to the internal/private IP (172.25.11.101). This allows inbound connections to be translated and sent to the internal host. The internal host cannot initiate outbound sessions, since the translation only applies to inbound traffic.

Source NAT only (Option B): Used for outbound sessions from internal private IPs to the Internet. This does not meet the requirement.

Static PAT (Option C): Maps a single port of a public IP to a private IP/port. The exhibit does not indicate a port-based translation.

Static NAT and source NAT (Option D): Would provide bidirectional communication, allowing sessions to be initiated in both directions. This contradicts the requirement.

Correct NAT Type: Destination NAT only

On SRX Series Firewalls, Junos OS automatically creates system-defined zones that have special functions:

Null zone (Option A): A predefined discard zone. By default, all interfaces belong to the null zone until assigned to a user-defined zone. Traffic destined to the null zone is dropped.

Junos-host zone (Option B): A predefined functional zone that allows security policies to control traffic directed to the SRX device itself (management traffic, such as SSH, HTTP, SNMP).

Management zone (Option C): There is a predefined management functional zone , but it is not called " management " as a system-defined security zone.

DMZ (Option D): A DMZ zone must be explicitly created by the administrator, it is not system-defined.

Correct Zones: null, junos-host

Controlling read-only access versus posting content requires application-level visibility beyond basic ports and protocols. Juniper AppID can identify dynamic applications and micro-applications, which represent more specific application functions. Unified security policies support dynamic application matching, including Layer 7 application identity, and are the correct policy type for this kind of granular application control. Therefore, the micro-application objects should be included in unified security policies. Application identification must also be enabled so the SRX can detect the relevant application and micro-application behavior. Traditional security policies match mainly static applications and 5-tuple-style criteria and are not the correct mechanism for this Layer 7 micro-application enforcement. Zone-level application tracking alone provides visibility but does not enforce the required read-versus-post control.

Security policies on SRX support several actions:

Permit: Allows traffic to pass according to the rule.

Deny: Silently drops the traffic without notifying the source.

Reject: Drops the traffic and sends a TCP RST (for TCP) or ICMP unreachable (for UDP/other protocols) back to the source. This provides feedback to the sending host.

Next-policy: Allows policy chaining to evaluate the next policy set.

Therefore, the action that causes traffic to drop and a message to be sent to the source is reject .
