EIGRP has a function called "EIGRP Ipv6" (But that can still be called "EIGRP")

The fabric management plane in Cisco SD-Access enables automation techniques for device deployment and configuration. Cisco DNA Center, now commonly referenced as Cisco Catalyst Center, provides the management-plane capabilities used to automate underlay deployment, discover and provision devices, create fabric sites, assign roles, deploy virtual networks , and push policy-driven configurations. LISP-based endpoint identifiers and EID-to-RLOC mappings belong to the fabric control plane, not the management plane. IS-IS underlay routing is part of underlay network design and operation, not the management-plane function itself. The management plane exists so administrators do not have to build every fabric role, network segment, and policy manually on each individual device. In a well-designed SD-Access deployment, management-plane automation reduces configuration drift, accelerates site onboarding, and provides a consistent operational model across the campus fabric. Reference topics: Cisco SD-Access management plane, Cisco Catalyst Center, automation, device provisioning, fabric deployment, policy orchestration. It also provides the operational interface for assurance, inventory, and repeatable change control across the fabric.

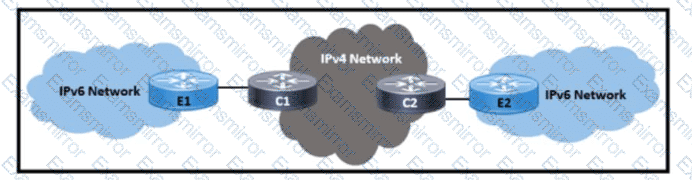

The design must enable IPv6 multi-topology behavior at the appropriate edge routers and move metric handling toward transition support where the current IS-IS network still uses narrow metrics. Multi-topology IS-IS is important during IPv4-to-IPv6 migration because IPv4 and IPv6 reachability do not always exist on identical links at every stage of the migration. If IPv6 follows the IPv4 topology when some devices or paths are not IPv6-ready, traffic can be blackholed. Multi-topology allows independent IPv4 and IPv6 SPF calculations, which prevents IPv6 traffic from being forwarded through IPv4-only portions of the network. The metric-style transition setting is used when migrating from narrow to wide metrics, allowing interoperability while routers are upgraded and the design scales. Because the requirement says IPv6 areas will grow and the current network uses narrow metrics, the selected edge devices must support the IPv6 topology and metric transition behavior shown in the exhibit. Reference topics: IS-IS IPv6, multi-topology IS-IS, narrow metrics, wide metric transition, IPv6 migration, blackhole prevention.

In Cisco SD-Access, an intermediate node is an underlay transit device. Its responsibility is to provide IP reachability between fabric edge nodes, border nodes, and other fabric infrastructure roles. Intermediate nodes forward routed underlay traffic and do not perform endpoint registration, endpoint lookup, or VXLAN encapsulation for user traffic. Endpoint-to-location mapping is handled through the fabric control plane, which is based on LISP map-server and map-resolver functions. Fabric edge nodes identify connected endpoints, apply policy, act as anycast gateways, and encapsulate user traffic into VXLAN. Border nodes connect the fabric to external networks and handle traffic entering or leaving the fabric. The intermediate node is therefore comparable to a routed distribution or core transport device in a traditional hierarchical campus, except it is participating in the SD-Access underlay. It must provide stable Layer 3 reachability and appropriate MTU for encapsulated traffic but does not maintain the host tracking database or add security group information to VXLAN headers. The correct function is transporting IP packets between edge and border nodes.

PIM Source-Specific Multicast is the correct multicast protocol when receivers can subscribe to traffic from known sources and the design must avoid rendezvous points. SSM uses the (S,G) model, where receivers explicitly join a multicast group from a specific source. Because the source is known at join time, the network does not need a shared tree or RP discovery process. This makes SSM attractive for broadcast-style streaming applications, such as video channels, where each stream source is known and receivers subscribe to specific channels. PIM Sparse Mode and Any-Source Multicast use an RP to allow receivers to discover active sources, so they do not meet the requirement of no rendezvous point. BIDIR-PIM also relies on an RP-rooted shared tree and is optimized for many-to-many applications rather than source-specific broadcast channels. For a large cable TV provider streaming multiple video channels from defined sources, SSM simplifies the multicast control plane, eliminates RP dependency, and scales efficiently by creating only the source-specific state required by active receivers.

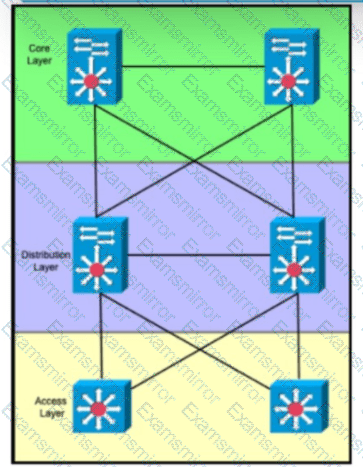

The design should summarize routes from the distribution layer toward the core and configure access-layer switches as EIGRP stubs. EIGRP query scope is a major design consideration in large routed campus networks. When a route is lost, EIGRP may send queries to neighbors to find an alternate path. If the network is not bounded properly, these queries can spread widely, slow convergence, and create stuck-in-active risk. Configuring the access layer as EIGRP stub tells upstream routers that the access device is not a transit path to other networks, so unnecessary queries are not sent into the access layer. Summarizing at the distribution layer toward the core hides access-link instability and provides a smaller, more stable routing table to the rest of the network. Summarizing at the access layer is usually less useful when many VLANs are aggregated at distribution. Configuring the core as stub is inappropriate because the core should provide transit. Reference topics: EIGRP stub, route summarization, query boundary, campus hierarchy, DUAL convergence.

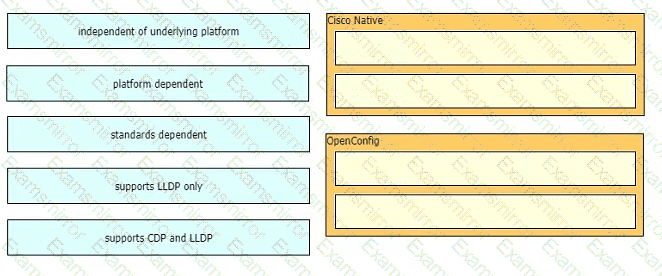

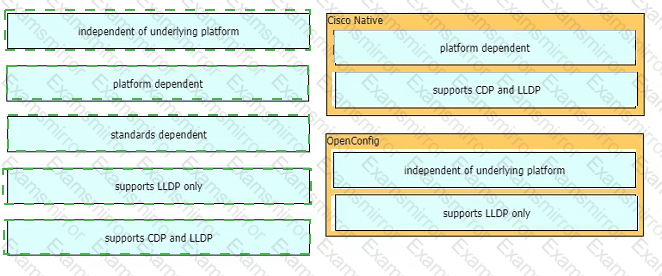

The YANG module mapping follows the distinction between standards-based, vendor-neutral, and vendor-native data models. IETF YANG models are standards-driven and are appropriate when the design goal is protocol-level interoperability across vendors for common network functions. OpenConfig models are also vendor-neutral, but they are developed by the OpenConfig community and commonly use a structured separation between intended configuration and operational state. Cisco native models expose platform-specific Cisco IOS XE, IOS XR, or NX-OS capabilities and are often the most complete option when a feature is unique to a Cisco operating system. The selected drag-and-drop answer aligns each characteristic with the model family that owns that behavior. In a professional automation design, the engineer should not choose a model only because it is familiar. The correct choice depends on feature coverage, device support, platform release, schema stability, and whether the workflow must operate consistently across vendors. For multivendor intent, choose IETF or OpenConfig first; for Cisco-specific feature depth, use Cisco native models. Reference topics: YANG, IETF models, OpenConfig, Cisco native models, NETCONF and RESTCONF automation.

Forward error correction and quality of service are the two listed techniques that directly improve application experience in a Cisco SD-WAN design. Forward error correction protects selected application traffic by sending recovery information so packet loss can be corrected without waiting for retransmission. That is especially useful for real-time voice and video traffic, where retransmission delay can degrade quality. QoS improves application treatment by classifying, marking, queuing, shaping, and prioritizing traffic according to business intent and application sensitivity. Cisco SD-WAN designs commonly combine application-aware routing, QoS, and loss-mitigation features to keep critical traffic on the best path and preserve service quality during congestion or impairment. A stateful firewall, AMP, and Cisco Umbrella improve security posture, but they do not primarily improve application experience in the forwarding-quality sense asked by the question. They may protect applications, but they do not directly address loss, delay, jitter, and congestion treatment. Therefore, FEC and QoS are the best answers. Reference topics: Cisco SD-WAN application experience, FEC, QoS, loss mitigation, real-time traffic handling.

An open YANG model is the correct choice because the automation scope is multivendor and the workflow must be reusable across diverse routing and switching platforms. Native vendor models expose platform-specific details and are valuable when a feature is unique to one operating system, but they create code branching and operational inconsistency when many vendors and hardware families are in scope. The question also says the DR playbook will be adjusted in the future, which argues for a model that reduces redesign whenever a device vendor or platform changes. Open models, such as IETF or OpenConfig where supported, provide common schema structures for standard network functions and allow the microservice and controller integration to remain cleaner. A custom individualized model would increase development and maintenance burden, not reduce it, unless there is a very specific abstraction layer requirement. Using a single native vendor model cannot support the stated multivendor environment. The professional design is to use open models wherever coverage is sufficient, then fall back to native models only for unsupported platform-specific capabilities. Reference topics: YANG model selection, OpenConfig, IETF YANG, Cisco native YANG, multivendor automation.

The Cisco SD-Access data plane is based on VXLAN. Cisco SD-Access separates the fabric into functional planes: the underlay provides IP reachability, the control plane uses LISP to map endpoints to locations, and the data plane uses VXLAN encapsulation to carry user traffic across the routed underlay. VXLAN allows the fabric edge node to encapsulate endpoint traffic and forward it through the fabric while preserving virtual network and segmentation information. This is what enables SD-Access to provide Layer 2 and Layer 3 overlay services over a Layer 3 routed transport. OMP is the control-plane protocol for Cisco SD-WAN, not SD-Access. NHRP is associated with DMVPN tunnel resolution. LISP is essential in SD-Access, but its role is endpoint ID to routing locator mapping, not packet encapsulation in the data plane. Therefore, VXLAN is the correct protocol for the SD-Access data plane. Reference topics: SD-Access fabric, VXLAN data plane, LISP control plane, overlay encapsulation, routed underlay.
