Bootstrap Router is the standards-based mechanism that supports dynamic RP discovery in a PIM sparse-mode domain. Cisco documentation distinguishes Auto-RP, which is Cisco-proprietary, from BSR, which is defined for standards-based RP distribution. With BSR, candidate RPs advertise their availability, and the elected bootstrap router distributes RP-set information throughout the PIM domain. This removes the operational burden of manually configuring the same static RP information on every multicast router. Anycast-RP provides RP redundancy and load sharing but does not by itself provide standards-based dynamic RP discovery across the domain. Static RP is simple but not dynamic. Auto-RP can dynamically distribute RP information, but it is not the standards-based answer. The design value of BSR is most visible in large multicast domains, where routers need consistent RP information and manual changes are risky. Therefore, when the question asks for a standards-based RP deployment that supports dynamic RP discovery, the correct answer is bootstrap router. Reference topics: PIM sparse mode, Bootstrap Router, candidate RP, RP-set distribution, dynamic RP discovery.

Stateful NAT64 is the correct design because IPv6-only hosts must communicate with legacy IPv4 devices and only a small pool of IPv4 addresses is available for concurrent sessions. NAT64 translates IPv6 client traffic into IPv4 traffic, allowing IPv6-only endpoints to reach IPv4-only resources. A stateful implementation maintains translation state and can use a pool of IPv4 addresses for multiple IPv6 clients, which fits the requirement for up to 10 concurrent IPv6 hosts using 10 reserved IPv4 addresses. Static NAT- PT would require fixed one-to-one mappings and is less suitable for a pool-based concurrent access model. NAT66 translates between IPv6 prefixes and does not solve access to IPv4-only devices. Dynamic NAT-PT is an older transition mechanism and is not the preferred modern answer when NAT64 is available. The design should also include DNS64 when clients access IPv4-only services by name. Reference topics: IPv6 transition, stateful NAT64, DNS64, IPv6-only hosts, IPv4 legacy reachability.

L2VPN is the correct solution because the customer requires point-to-point connectivity while preserving existing VLAN infrastructure. Cisco describes Layer 2 VPN services as emulating Layer 2 connectivity across a provider IP or MPLS backbone, commonly through Ethernet pseudowires or VPWS. This allows sites such as dispersed data centers and a colocation facility to exchange Ethernet frames as if they were directly connected at Layer 2. The design is especially useful when data center synchronization, backup workflows, or application dependencies require VLAN continuity or minimal changes to existing addressing and routing. L3VPN would provide routed connectivity and VRF separation, but it would not preserve the VLAN-based service model. GRE would add an overlay tunnel but would not natively provide provider-managed Layer 2 service. DMVPN is designed for scalable Layer 3 IPsec/GRE overlays between branches, not for VLAN extension or point-to-point data center interconnect. Reference topics: L2VPN, VPWS, Ethernet pseudowire, VLAN extension, data center interconnect, WAN service design.

Cisco Catalyst SD-WAN separates orchestration from management, control, and data forwarding. The orchestration-plane function is provided by vBond, which authenticates WAN Edge devices and helps establish secure connectivity between edges and controllers. In Cisco design terms, vBond is also the NAT traversal facilitator because it allows devices sitting behind NAT to discover reachable public and private address information and form the correct control connections. These two functions match the options for primary authentication point and NAT traversal facilitation. Centralized provisioning, troubleshooting, monitoring, and template-based configuration belong to vManage, the management plane. Route and policy distribution belongs to vSmart, the control plane, through OMP. Zero Touch Provisioning is part of the onboarding workflow, but the question asks for orchestration-plane functions, not the broader provisioning service. A sound SD-WAN design should deploy redundant vBond instances, ensure DNS reachability to them, and validate firewall rules so DTLS/TLS control connections can be established reliably across Internet and private transports. Reference topics: Cisco SD-WAN architecture, vBond orchestration, control connections, NAT traversal.

The scalable EIGRP hub-and-spoke design should make each spoke a stub router and summarize routes from the spokes toward the hubs. Cisco EIGRP documentation states that stub routing improves network stability, reduces resource utilization, and simplifies branch or edge router configuration. Stub spokes limit the routes they advertise and prevent the hub routers from sending unnecessary queries through remote sites. Summarizing spoke routes toward the hubs further reduces routing-table size and contains convergence events when a subnet fails behind a spoke. Exchanging all routes between every location would increase memory, CPU, and query scope, which is the opposite of good EIGRP scale design. Summarizing only between the hubs may be useful in a dual-data-center design, but it does not solve the spoke scaling requirement. Splitting the network into two autonomous systems is unnecessary when the requirement states that all locations belong to a single AS. Reference topics: EIGRP hub-and-spoke design, stub routing, route summarization, query scope reduction, branch scale.

A migration from traditional IP-VPN service to Cisco SD-WAN commonly increases security and scalability. Cisco SD-WAN builds encrypted data-plane tunnels across supported transports, so the enterprise can use Internet, MPLS, or hybrid connectivity while maintaining secure site-to-site communication. The architecture also scales better operationally because policy, templates, onboarding, and routing control are centralized through the SD-WAN controllers and management plane. Increased solution complexity is not a desired characteristic; one of the design goals is to simplify operations through automation and centralized policy. Centralized application policies are also a major SD-WAN benefit, but when only two choices are selected, the stored answer emphasizes the two broad migration outcomes of security and scale. Distributed control plane is not correct because Cisco SD-WAN uses centralized control-plane logic with vSmart controllers distributing OMP routes and policies. A professional migration plan should validate transport diversity, controller redundancy, encryption policy, application-aware routing, and operational readiness. Reference topics: Cisco SD-WAN migration, encrypted overlay, scalability, centralized control plane, IP-VPN replacement.

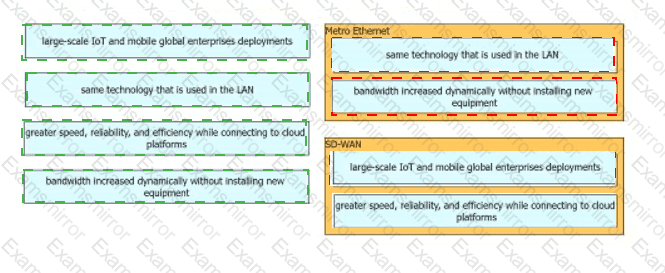

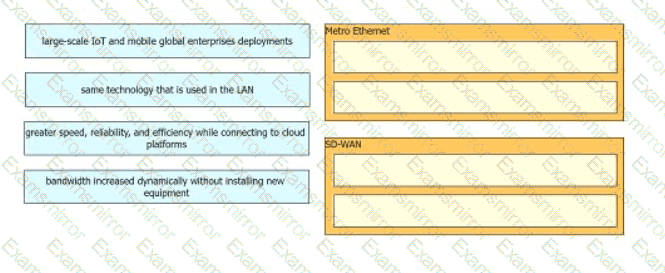

The drag-and-drop mapping should be preserved as the validated answer because the item depends on the exhibit categories and the original coordinate map identifies which descriptions belong to each category. In Cisco design questions of this form, the important skill is distinguishing the functional category from the implementation detail. A professional design answer must map each description to the correct operational class instead of treating all items as interchangeable features. This is common in ENSLD topics such as WAN connectivity, SD-Access roles, telemetry modes, and QoS service models, where a description may sound similar but belongs to a different architectural layer. The coordinate answer keeps the specific pairings intact while the explanation documents the design logic: categorize by function, control-plane responsibility, data-plane behavior, and operational use case. If the exhibit contains technology categories, the selected mapping should be read as the official answer for those categories rather than converted into free text. Reference topics: Cisco design categorization, architectural roles, technology-to-function mapping, ENSLD drag-and-drop interpretation.

When BFD echo mode contributes to high CPU utilization on lower-resource devices, the practical design response is to use slower BFD timers for those peers rather than continuing to run an overly aggressive failure-detection profile everywhere. Cisco BFD provides fast failure detection, but timer values must match platform capability, interface scale, and the operational value of subsecond detection. Echo mode can generate frequent packets, and in some environments the processing or punt behavior can create measurable CPU pressure. Slowing the timers reduces packet rate and control-plane stress while keeping BFD available for faster detection than traditional routing protocol dead timers. Moving to asynchronous mode may be appropriate in some designs, but the listed option says “BED” and does not directly address the requirement as cleanly as reducing timer aggressiveness. BFD multihop is used for non-directly connected peers and is not a CPU-relief mechanism. Carrier delay changes interface state notification behavior, but it does not solve BFD packet processing load. Therefore, implement slower timers on peers with limited resources. Reference topics: BFD design, echo mode, failure-detection timers, CPU utilization.

LTE is the most appropriate backup WAN option for remote sites that already rely on microwave links. A backup transport should use a different failure domain from the primary service; LTE provides carrier wireless connectivity that is operationally separate from the customer’s microwave infrastructure. It is widely available, fast to deploy, and suitable as an out-of-band or secondary WAN path for branch continuity. WiMAX is an older metropolitan wireless technology and is not the preferred current enterprise backup choice. A laser link is another line-of-sight technology and can suffer from similar environmental and alignment constraints as microwave, so it is a weaker diversity option. Bluetooth is a short-range personal-area technology and is not a viable WAN backup for enterprise branches. LTE also integrates well with SD-WAN, IPsec VPN, and routing-based failover designs. In a resilient WAN architecture, the architect should validate signal quality, carrier coverage, data plan, antenna placement, NAT behavior, and whether the backup link must support dynamic routing, VPN encryption, and QoS for critical traffic during failover.

Intermittent DMVPN tunnel flaps are commonly caused by reachability problems between routing neighbors or between the tunnel endpoints that support those neighbors. DMVPN depends on several layers working correctly: the underlay transport, GRE tunnel interface, NHRP registration and resolution, IPsec protection if used, and the routing protocol running across the tunnel. If the routing neighbor cannot remain reachable, the tunnel may appear to flap even though the encryption profile itself is not the root cause. A suboptimal routing table can produce poor forwarding or asymmetric traffic, but it is not the most common direct cause of repeated tunnel up/down events. Bandwidth congestion can degrade performance, but a correctly designed tunnel does not flap merely because utilization is high unless keepalives, NHRP, or routing packets are being lost. The fact that a GRE tunnel is not encrypted is a security design problem, not a tunnel-flap cause. The right troubleshooting posture is to verify stable underlay reachability, tunnel interface state, NHRP mappings, and routing adjacency stability before assuming an IPsec encryption failure.
