In BGP, the AS-Path attribute is mandatory and must be included in all UPDATE messages. It records the autonomous systems a route has traversed. Attributes like Local-Preference , MED , and Prefval are optional and may not always be included. The AS-Path is crucial for loop prevention and route selection ​.

The default Hello interval on an OSPF P2P (Point-to-Point) or Broadcast network is 10 seconds , and the default Dead interval is 40 seconds .

The Dead interval is the time a router waits without receiving a Hello packet from a neighbor before declaring it down.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“For broadcast and P2P network types, the default Hello interval is 10 seconds and the Dead interval is 40 seconds.”

(Chapter: OSPF Interface Types – Section: OSPF Timers)

Comprehensive and Detailed in-depth Step-by-Step Explanation:

To establish an OSPF neighbor relationship, the following conditions must be met:

The routers must share a common network segment.

Their Hello and Dead intervals must match.

Their OSPF network types must be compatible.

The IP subnet masks must match.

If two OSPF routers are on different network segments and have different subnet masks , one solution is to change the OSPF network type to Point-to-Point (P2P) on both interfaces.

Point-to-Point (P2P):

In a P2P network type, OSPF ignores the subnet mask mismatch and establishes the neighbor relationship regardless of the network mask.

This is ideal for directly connected links between two routers.

NBMA (Non-Broadcast Multi-Access):

This network type is used for networks like Frame Relay or ATM, where a single physical interface connects to multiple neighbors.

It is not applicable to solving subnet mask mismatches for a single link.

P2MP (Point-to-Multipoint):

This type treats the link as multiple P2P links. It is mainly used in hub-and-spoke topologies.

While it can be configured to solve subnet mask mismatches, it is more complex and less commonly used compared to the P2P type.

Broadcast:

This type requires all routers on the same segment to agree on subnet masks, so it cannot resolve the subnet mask mismatch issue.

Therefore, the correct answer is A. Point-to-point.

Comprehensive and Detailed In-Depth Explanation:

STP Port Roles :

Root Port (RP) → Connects directly to the Root Bridge .

Designated Port (DP) → Forwards traffic for a given segment.

RSTP introduces two additional roles to improve redundancy:

Backup Port → A redundant Designated Port (on the same switch).

Alternate Port → A backup Root Port (path to the Root Bridge).

All four roles exist in RSTP , making the correct answer A, B, C, D .

???? Reference: Huawei HCIA-Datacom Study Guide, RSTP Port Roles and Rapid Convergence.

Comprehensive and Detailed Step-by-Step Explanation:

1. BGP Attributes Overview:

BGP uses attributes to describe the properties of routes. These attributes are classified into the following categories:

Well-Known Mandatory : Attributes that must be recognized and included in every BGP update. Examples: AS_PATH, ORIGIN, NEXT_HOP.

Well-Known Discretionary : Attributes that must be recognized but are not required in every BGP update. Examples: LOCAL_PREF, ATOMIC_AGGREGATE.

Optional Transitive : Attributes that may or may not be recognized, but must be passed along to other BGP peers. Examples: COMMUNITY.

Optional Non-Transitive : Attributes that may or may not be recognized, and are not passed along to other BGP peers. Examples: MED (Multi-Exit Discriminator).

2. Analysis of Each Option:

Option A: Atomic_Aggregate

Correct .

This is a well-known discretionary attribute. It indicates that the advertised route is an aggregate route that summarizes multiple specific routes.

Option B: Local-Preference

Correct .

This is a well-known discretionary attribute. It is used within an AS to prioritize routes, with higher values being preferred.

Option C: Community

Incorrect .

The COMMUNITY attribute is an optional transitive attribute. It is used to tag routes with specific labels to apply routing policies.

Option D: MED (Multi-Exit Discriminator)

Incorrect .

The MED attribute is an optional non-transitive attribute. It is used to influence the choice of the preferred path when there are multiple entry points into an AS.

3. Summary:

Well-Known Discretionary Attributes : Atomic_Aggregate and Local-Preference.

In OSPF (Open Shortest Path First), each router maintains a Link-State Database (LSDB) , which must be synchronized with other routers in the same area. When an OSPF router receives an LSA (Link-State Advertisement) that it does not already have in its LSDB , it takes the following steps:

It updates its LSDB with the new LSA.

It floods the LSA to all its other OSPF neighbors (except the one from which it received the LSA).

This ensures that all routers in the OSPF area eventually converge to the same network topology.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“When an LSA is received and it is newer or not present in the LSDB, the router updates the LSDB and floods the LSA to other neighbors to ensure database synchronization.”

(Chapter: OSPF Fundamentals – Section: LSDB Synchronization)

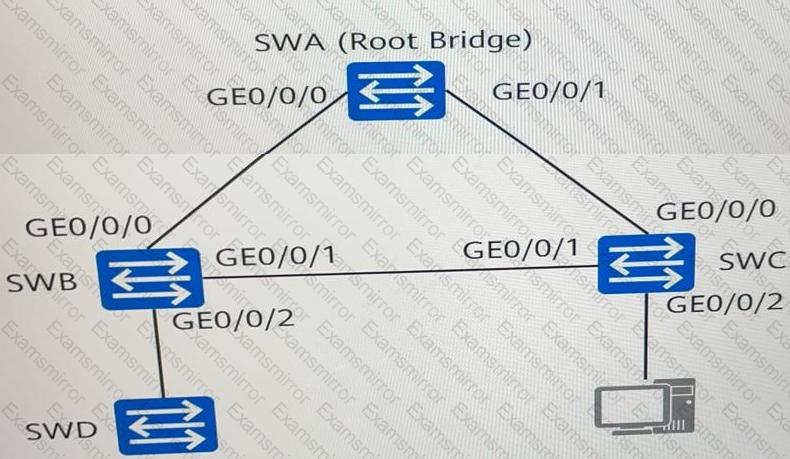

Edge ports are used in RSTP to bypass the spanning tree calculation for ports connected to end devices. By configuring ports like SWD ' s GE0/0/2 and SWC ' s GE0/0/2 as edge ports, they transition directly to the Forwarding state upon activation, ensuring faster convergence. Statement A is incorrect because receiving BPDU invalidates the edge port status ​.

When the router ID is configured in both the system view and the BGP view, the router ID in the BGP view takes precedence because BGP-specific configurations override global settings. This ensures that BGP operates with the most relevant configurations ​.
